Introduction

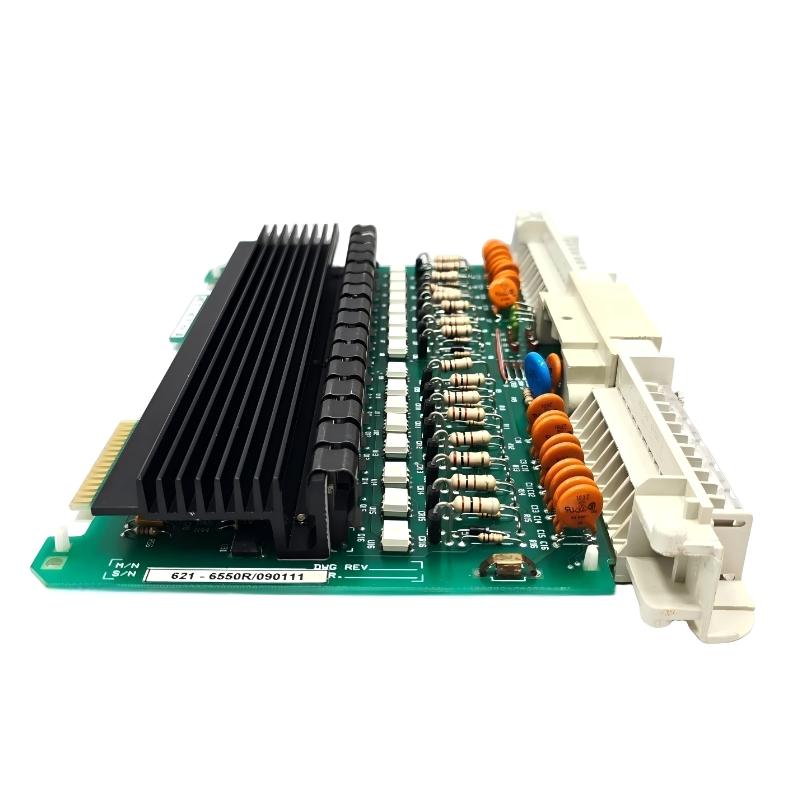

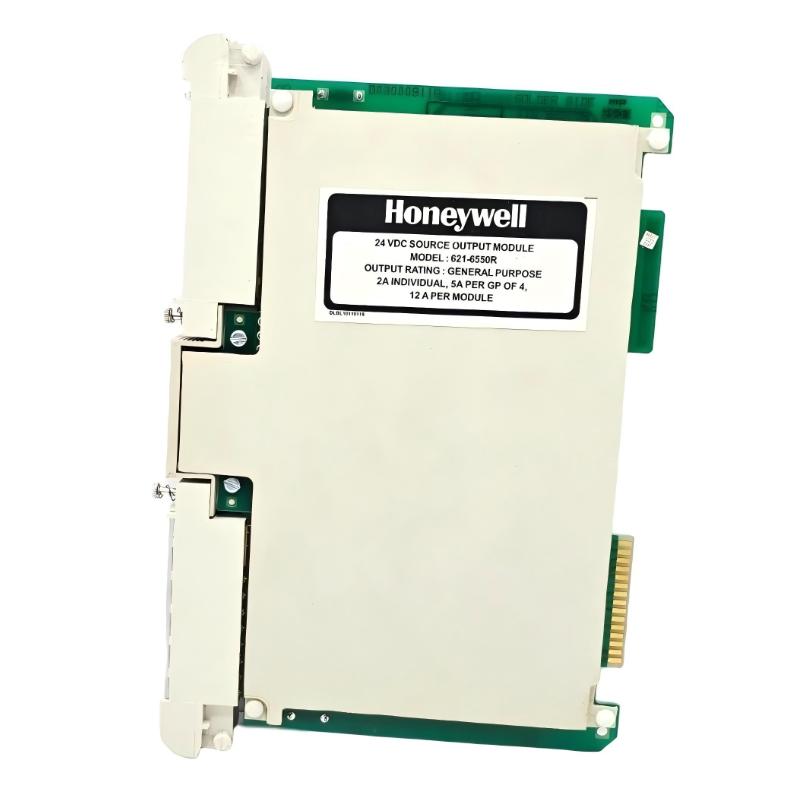

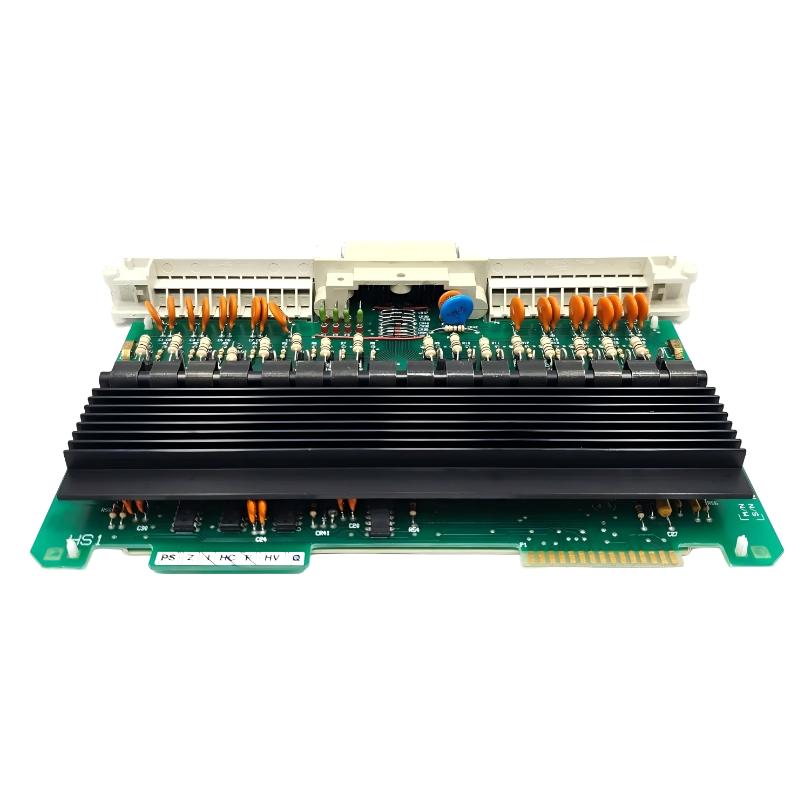

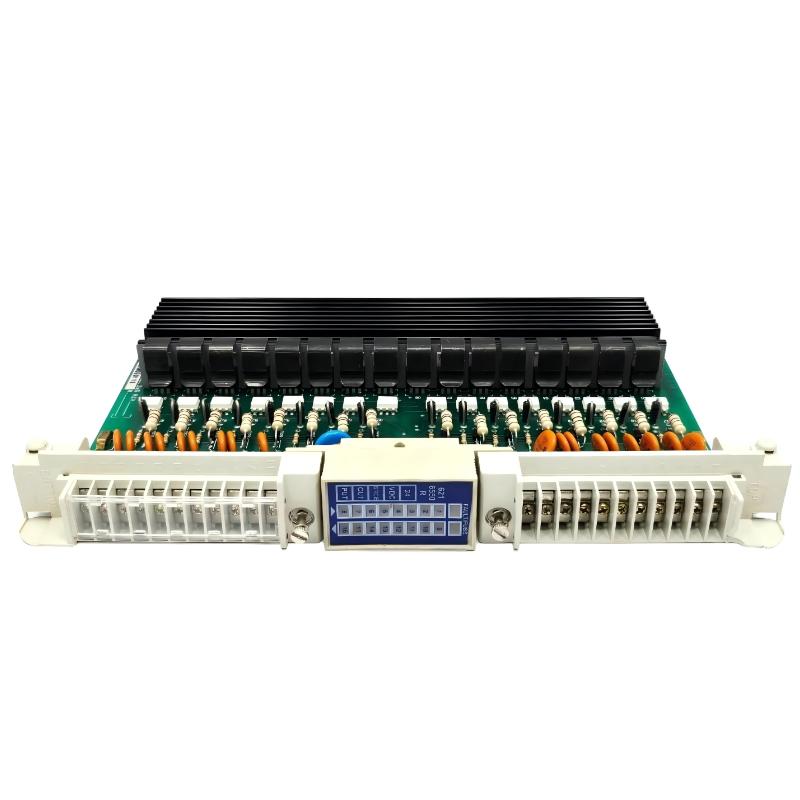

The Honeywell 621-6550R Output Module is a robust industrial component designed to provide reliable output signal control in Honeywell IPC and LC automation systems. It drives field devices based on commands from the control processor, enabling precise and consistent operation of valves, motors, and indicators. With its compact design and durable construction, it supports long-term operation in demanding industrial environments, ensuring stable and uninterrupted process control.

Technical Specifications

Parameter	Specification
Model	621-6550R
Function Type	Output Module
System Compatibility	Honeywell IPC / LC series
Signal Type	Control output to actuators and field devices
Dimensions	158 mm × 30 mm × 98 mm
Weight	0.66 kg
Mounting Type	Rack-mounted module
Operating Environment	Industrial process control conditions
Application Type	Distributed industrial automation

Recommended Related Models

Model	Product Name
621-3580R	Honeywell Input Module
621-1160R	Honeywell Numeric Input Module
620-3632C	Honeywell Control Processor Module
621-1180R	Honeywell Digital Input Module

Popular Related Models

Model	Product Name
621-6550R	Honeywell Output Module
621-6550	Honeywell Output Module Variant
620-0073C	Honeywell Power Supply Module
51304476-175	Honeywell Analog Output Board

Applications

• Provides signal output capabilities for Honeywell legacy industrial control systems.
Used to drive actuators, indicators, and external devices from a central control processor.

• Interfaces with Honeywell IPC / LC series control architectures.
Ensures reliable transmission of control commands from the PLC or DCS to field devices.

• Commonly applied in process automation industries such as oil & gas, chemical processing, and power generation.
Enables precise control of valves, motors, and other industrial equipment.

• Supports distributed I/O configurations for large-scale industrial plants.
Allows expansion of output channels to meet complex automation needs.

Key Advantages

• High reliability output signal processing.
Ensures accurate and stable actuation of field devices in industrial environments.

• Compact industrial-grade module design.
Saves cabinet space while providing robust performance.

• Compatible with Honeywell legacy automation systems.
Integrates seamlessly into existing IPC / LC-based architectures.

• Strong noise immunity.
Maintains signal integrity in electrically noisy and harsh plant conditions.

• Supports continuous industrial operation.
Designed for long-term durability and stable performance in critical process control applications.

Technical FAQs

1. What is the primary function of the 621-6550R module?
It transmits control signals from Honeywell control processors to field devices such as actuators and indicators.

2. Is it a digital or analog output module?
It can support digital or system-specific output signaling depending on configuration.

3. Which systems is it compatible with?
It is compatible with Honeywell IPC / LC legacy control systems.

4. Is this module still actively manufactured?
No, it is considered a legacy module but widely used in installed systems.

5. Can it operate in harsh industrial environments?
Yes, it is designed to withstand vibration, EMI, and temperature variations typical in industrial plants.

6. Does it require external power?
It receives power from the system rack/backplane; no separate power supply is typically needed.

7. Can it be replaced with modern Honeywell modules?
Replacement requires evaluation due to differences in legacy architecture and communication protocols.

8. Is it hot-swappable?
System-dependent; replacement should follow Honeywell maintenance procedures.

9. What industries commonly use this module?
Oil & gas, petrochemical, refining, power generation, and manufacturing plants.

10. What is the main benefit of using this module today?
It ensures continued operation of legacy Honeywell control systems without requiring a full system upgrade.
