Introduction

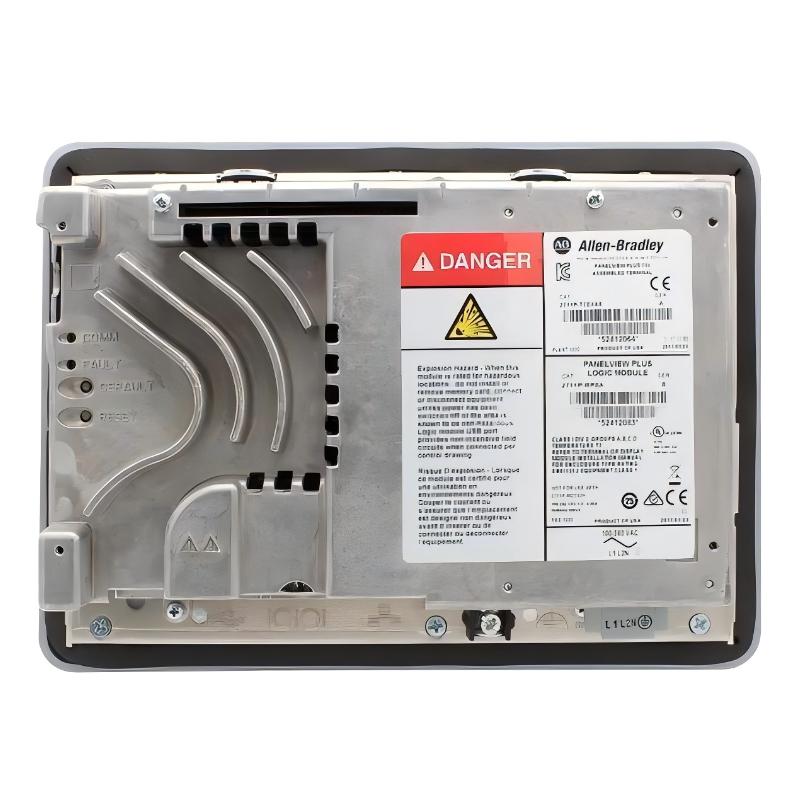

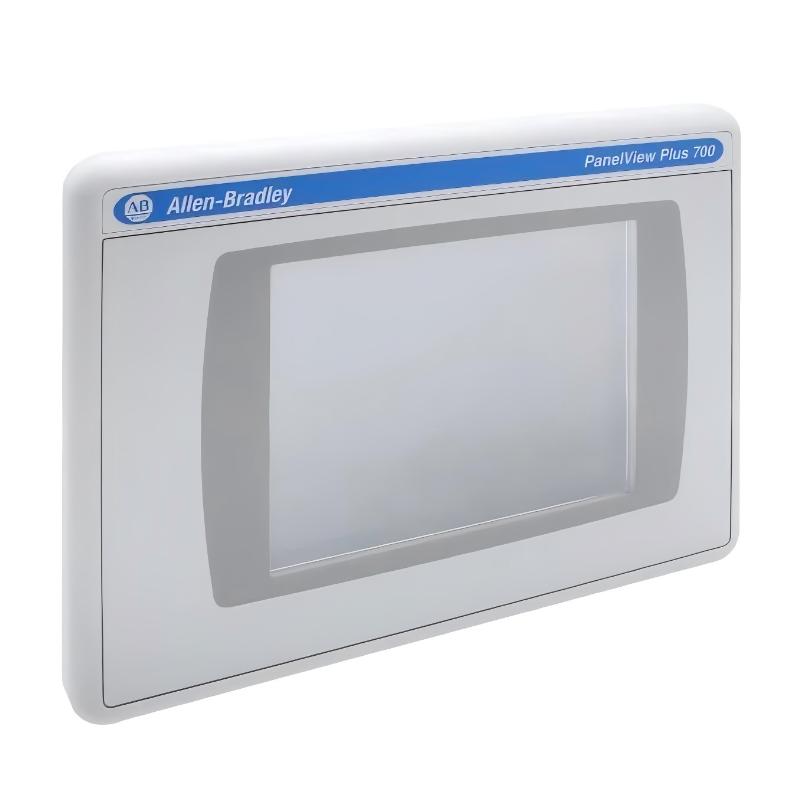

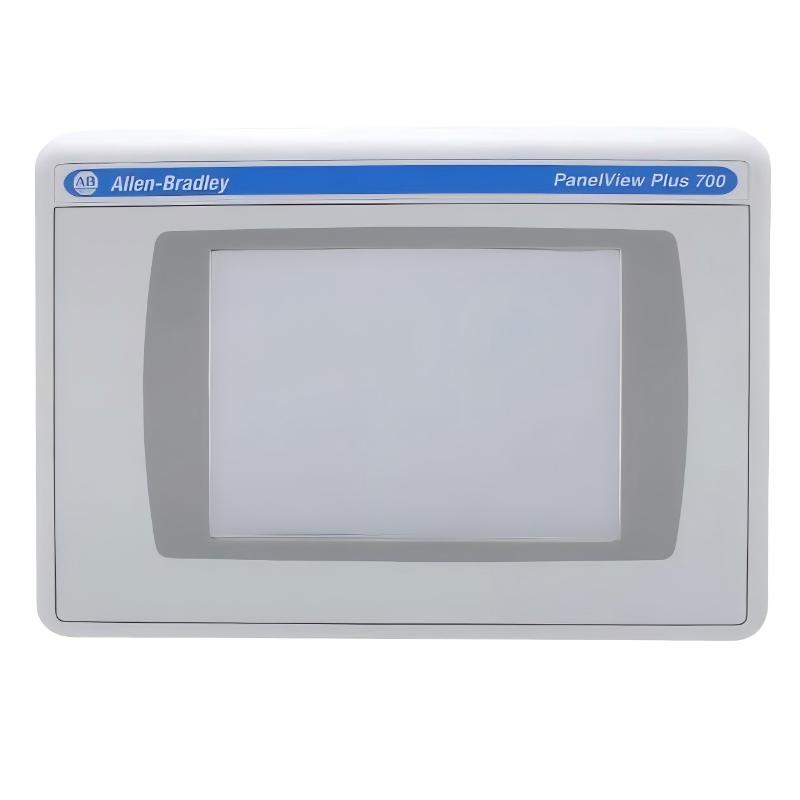

The 2711P-T7C4A8 PanelView Plus 6 700 is part of Rockwell Automation’s established HMI portfolio, designed to bridge operator interaction and industrial control systems through a stable and intuitive graphical interface.

Built for reliability in continuous industrial operation, it delivers consistent performance for visualization, alarm handling, and machine control. Despite being a legacy platform, it remains heavily deployed due to its proven compatibility with Allen-Bradley PLC ecosystems and long-term industrial durability.

Technical Specifications

Parameter	Specification
Model	2711P-T7C4A8
Series	PanelView Plus 6 700
Display	6.5-inch color TFT
Resolution	640 × 480
Touch Type	Analog resistive touchscreen

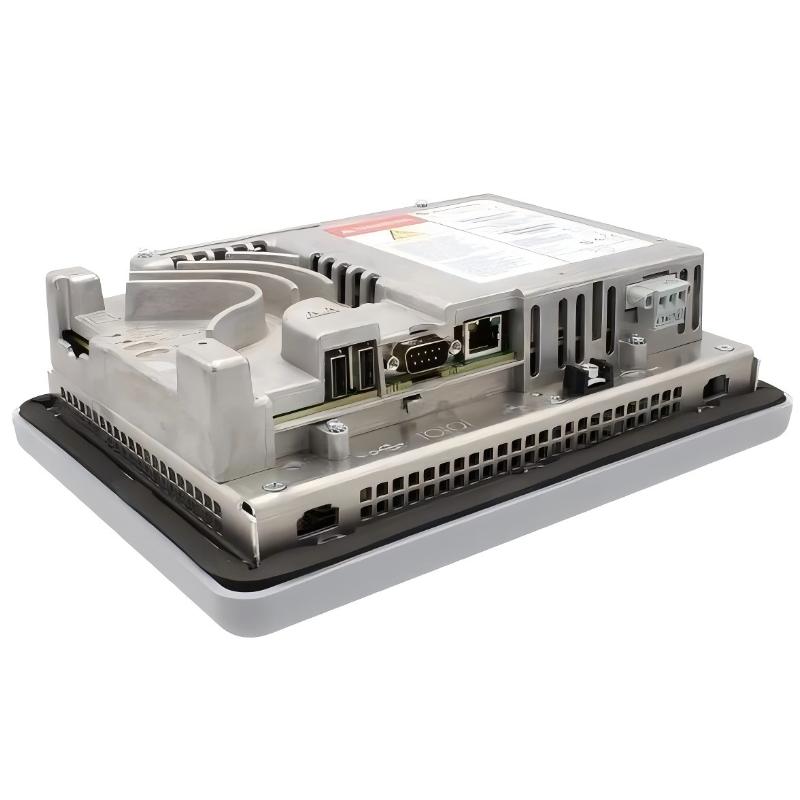

Communication Ports	Ethernet, RS-232, USB
Input Voltage	18–30 V DC
Memory	512 MB RAM / 512 MB Flash
Operating System	Windows CE-based embedded OS
Mounting Type	Panel mount
Operating Temperature	0°C to 55°C
Dimensions	246 × 55 × 179 mm
Weight	1.7 kg (3.75 lb)

Applications

The Allen-Bradley 2711P-T7C4A8 PanelView Plus 6 700 Operator Interface is designed for industrial visualization environments where reliable human–machine interaction is essential for real-time process control and monitoring.

It is widely used in:

Machine-level HMI control in automated production lines
PLC-based process visualization systems (Logix / CompactLogix integration)
Packaging, material handling, and assembly systems
SCADA front-end operator panels in industrial plants
Equipment status monitoring and alarm management interfaces
OEM machinery requiring compact operator terminals
Distributed control systems requiring local operator access

This model is particularly valued in legacy Rockwell automation systems where stable long-term HMI operation is required.

Advantages

Proven PanelView Plus 6 architecture with long industrial lifecycle usage
Stable integration with Allen-Bradley Logix controllers
6.5-inch color touchscreen designed for intuitive operator interaction
Dual communication support for Ethernet and RS-232 networks
Reliable runtime performance with FactoryTalk View Machine Edition
Compact industrial design suitable for tight panel installations
Durable resistive touchscreen optimized for glove operation
Strong compatibility with existing legacy automation infrastructure
Easy replacement and maintenance in installed base systems
Widely supported across global industrial automation environments

Technical FAQs (10 Technical Questions)

1. Does this PanelView support FactoryTalk View Machine Edition?
Yes, it is fully compatible with FactoryTalk View ME runtime applications.

2. Can it connect directly to CompactLogix PLCs?
Yes, Ethernet communication allows seamless integration with CompactLogix controllers.

3. Does it support multiple communication protocols?
Yes, it supports Ethernet and RS-232 communication interfaces.

4. Is the touchscreen resistive or capacitive?
It uses a resistive touchscreen suitable for industrial environments and glove operation.

5. Can it run modern FactoryTalk versions?
It supports FactoryTalk View ME versions compatible with PanelView Plus 6 architecture.

6. Does it support remote access or VNC?
Remote access features depend on runtime configuration and firmware setup.

7. Is this model still in production?
It is considered a legacy platform but still widely used in existing installations.

8. Can it be used in harsh industrial environments?
Yes, it is designed for industrial environments with vibration and electrical noise resistance.

9. Does it support USB file transfer?
Yes, USB ports allow application transfer and maintenance operations.

10. What type of applications is it best suited for?
It is ideal for machine-level HMI visualization and mid-scale industrial control systems.
