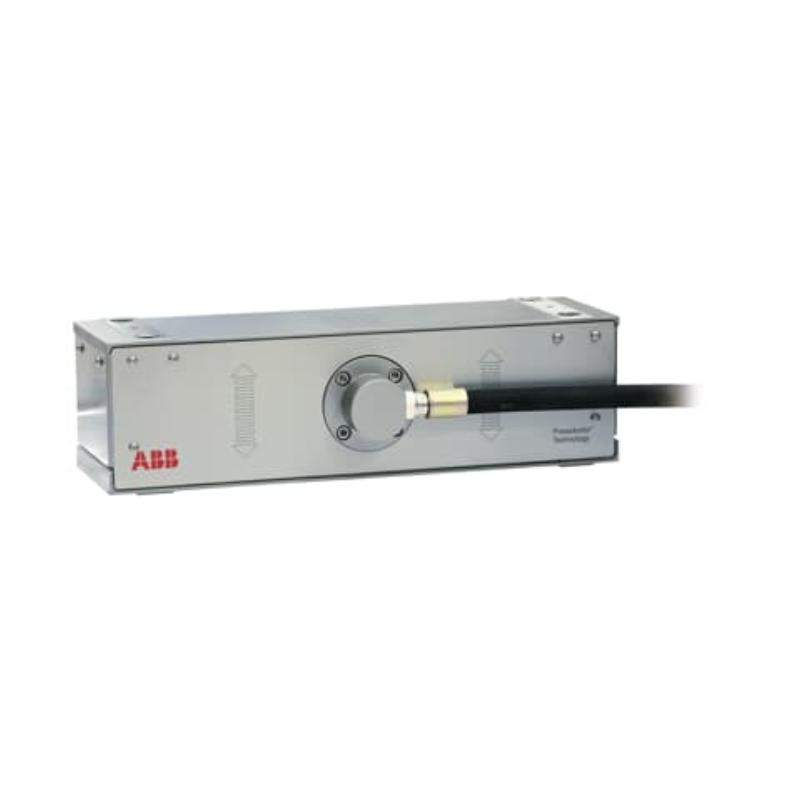

ABB PFCL201CE Web Tension Load Cell Module for High-Precision Industrial Control Applications
ABB PFCL201CE Web Tension Load Cell Module for High-Precision Industrial Control Applications
0.0
Points
Brand:ABB PLC Item No.:ABB PFCL201CE Product Origin:Sweden Product Dimensions:205 mm × 115 mm × 80 mm Product Weight:3.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB PFCL201CE Load Cell Module is a precision force measurement device engineered for web tension control and dynamic load sensing in industrial material handling systems. Built to deliver consistent, high-resolution force feedback, this module supports demanding environments such as strip processing, paper converting, and high-speed production lines.
Designed for high reliability and repeatable performance, the PFCL201CE integrates seamlessly with automated tension control systems. Its robust construction and engineered sensitivity make it well suited for continuous operation, reducing waste and improving quality control across a range of manufacturing processes.
Technical Specifications
Parameter
Specification
Product Name
ABB PFCL201CE
Module Type
Web Tension Load Cell Module
Measurement Technology
Strain gauge force sensing
Nominal Force Range
Configurable range based on system setup
Output Signal
Industrial analog force output
Installation Type
Flange/shaft mount compatible
Protection
Industrial sealed load cell body
Operating Temperature
-10°C to +70°C
Storage Temperature
-25°C to +80°C
Repeatability
High repeatability under dynamic conditions
Dimensions (L × W × H)
205 mm × 115 mm × 80 mm
Weight
3.6 kg
Recommended Related Models
For complete tension control applications, the PFCL201CE is often paired with:
ABB PFEA112 Tension Electronics Unit
ABB PFEA113 Signal Amplifier Module
ABB AC500 PLC Control System
ABB ACS880 Drive System
These complementary devices enable precise measurement, rapid signal conditioning, and accurate feedback control loops.
Popular ABB Automation Platforms
The PFCL201CE finds application across a variety of ABB systems, such as:
ABB Web Tension Control Solutions
ABB ACS880 Industrial Drive Platforms
ABB AC500 PLC Automation Systems
ABB Process Control Architectures
Its compatibility with ABB hardware and control logic frameworks makes it a dependable choice for OEMs and system integrators.
Applications
This versatile load cell module is well-suited for:
Paper and pulp processing lines
Steel and metal strip tension control
Flexible packaging and film converting
Textile manufacturing systems
High-speed printing operations
Plastic extrusion and coating processes
In production environments where force feedback precision directly affects product outcome, the PFCL201CE delivers stable and actionable measurement data.
Key Advantages
Durable industrial load cell construction
High-accuracy force measurement technology
Stable and repeatable output signal
Supports dynamic tension control loops
Reduces material waste and process variability
Integrates smoothly with ABB automation ecosystems
Designed for continuous industrial operation
Enhances process quality and control responsiveness
With reliable tension sensing at its core, the PFCL201CE empowers manufacturers to achieve tighter control and improved quality in material processing applications.
Technical FAQs
1. What measurement principle does the PFCL201CE use?
It uses strain gauge force sensing for accurate tension measurement.
2. Is this load cell suitable for continuous operation?
Yes, it is designed for continuous industrial use.
3. What industries benefit most from this module?
Paper, metal processing, textiles, packaging, and plastics industries.
4. How is the load cell typically installed?
It mounts via flange or shaft fixtures compatible with line equipment.
5. Does it require calibration?
Periodic calibration maintains accuracy over time.
6. Can it measure dynamic loads?
Yes, it provides stable output even under changing tension conditions.
7. Is the module compatible with ABB tension controllers?
Yes, it integrates with ABB tension electronics and PLC platforms.
8. What is the operating temperature range?
Operating range is -10°C to +70°C.
9. Does it support digital signal output?
It provides industrial analog output; digital conversion is achieved through associated electronics.
10. Should installation be performed by specialists?
Yes, professional installation ensures accurate alignment and signal integrity.
