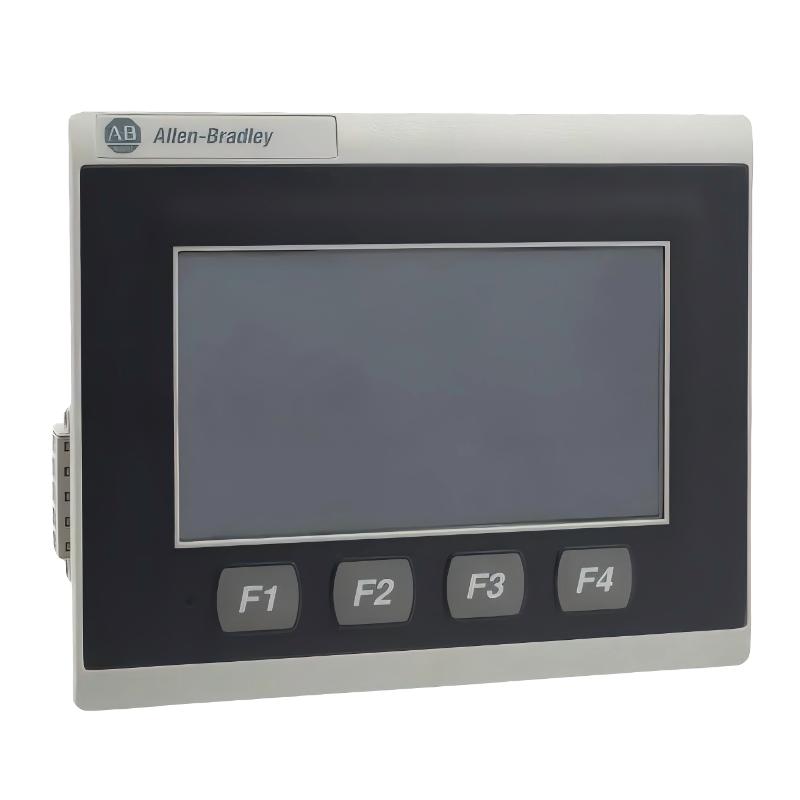

Allen Bradley 2711R-T4T PanelView 800 HMI Terminal
Allen Bradley 2711R-T4T PanelView 800 HMI Terminal
0.0
Points
Brand:Allen Bradley PLC Item No.:2711R-T4T Product Origin:USA Product Dimensions:138 x 43 x 116 mm Product Weight:0.333 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The 2711R-T4T is part of the PanelView 800 series, offering a compact and cost-effective human–machine interface solution for small-scale industrial automation. It is designed to bridge basic PLC logic control with operator-level visualization in environments where simplicity, reliability, and fast deployment are essential.
With its 4.3-inch widescreen display and streamlined architecture, it is widely used in OEM machinery and compact control panels, providing stable long-term operation in demanding industrial conditions.
Technical Specifications
Parameter
Specification
Model
2711R-T4T
Series
PanelView 800
Display Size
4.3-inch TFT widescreen
Resolution
480 × 272 pixels
Touch Type
Resistive touchscreen + function keys (F1–F4)
Communication Ports
Ethernet, RS-232, RS-485, USB
Input Voltage
18–32 V DC (24 V DC nominal)
Power Consumption
Up to 9 W
Memory
256 MB RAM / 256 MB Flash (typical configuration)
Operating System
Embedded industrial OS
Mounting Type
Panel mount
Operating Temperature
0°C to 55°C
Dimensions
138 × 43 × 116 mm
Weight
0.333 kg (0.73 lb)
Applications
The Allen-Bradley 2711R-T4T PanelView 800 HMI Terminal is designed for compact machine-level automation systems where simple, reliable operator interaction with PLCs is required.
It is widely applied in:
Micro800 and MicroLogix-based control systems
Small-scale packaging and assembly machines
Pump and fan control panels in utilities and HVAC systems
Basic production line monitoring and status display
Simple alarm indication and operator input interfaces
Distributed small-cell automation systems
This 4-inch HMI is optimized for space-constrained installations where essential visualization and control functions are needed without complex graphical overhead.
Advantages
Compact 4-inch industrial touchscreen for tight panel installations
Seamless integration with Micro800 and MicroLogix controllers
Simple Ethernet and serial communication support
Fast boot-up and responsive operator interface
Factory-configured design for quick deployment
Low power consumption for efficient cabinet operation
Rugged resistive touchscreen suitable for glove operation
Supports basic HMI visualization and alarm handling
USB and microSD support for application transfer
High reliability in continuous industrial environments
Technical FAQs (10 Technical Questions)
1. Which PLCs are best suited for the 2711R-T4T?
It is primarily designed for Micro800 and MicroLogix controller families.
2. Does it support EtherNet/IP communication?
Yes, it supports EtherNet/IP for compatible Rockwell controllers.
3. Can it connect to CompactLogix controllers?
Limited support exists depending on firmware, but it is not the primary intended use.
4. Does it support serial communication?
Yes, it supports RS-232 and RS-485 communication protocols.
5. Is the touchscreen resistive or capacitive?
It uses a resistive touchscreen designed for industrial environments.
6. Can it store projects locally?
Yes, it supports internal memory and external USB/microSD storage.
7. Is remote access supported?
Some firmware versions support remote monitoring features depending on configuration.
8. Does it support recipe management?
Yes, basic recipe handling is supported for small machine applications.
9. Is it suitable for harsh environments?
Yes, it is designed for industrial vibration, EMI, and temperature variations.
10. Is this model still actively supported?
Yes, it remains part of the active PanelView 800 product family.
