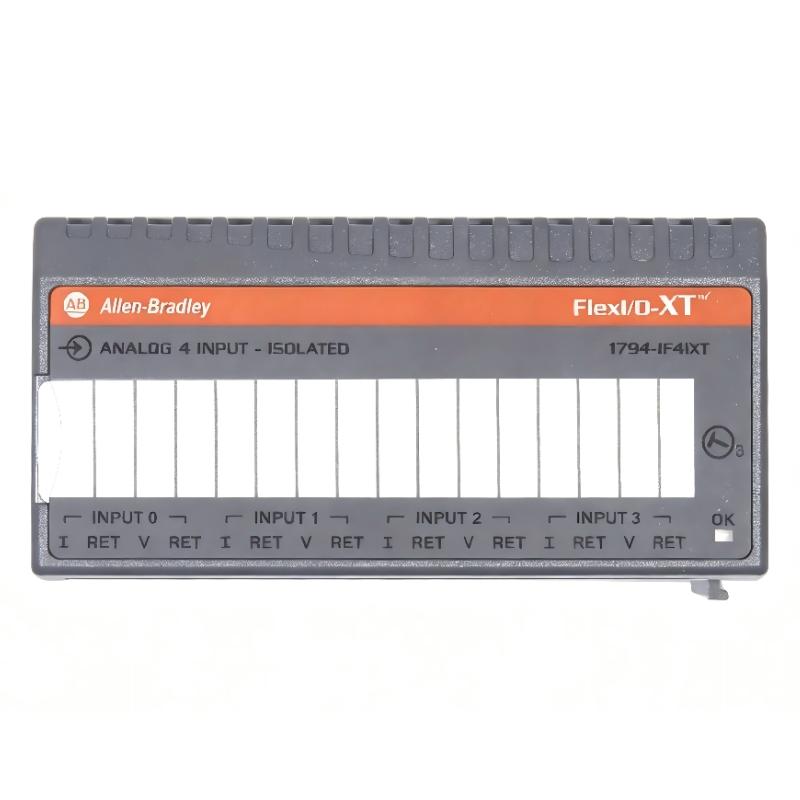

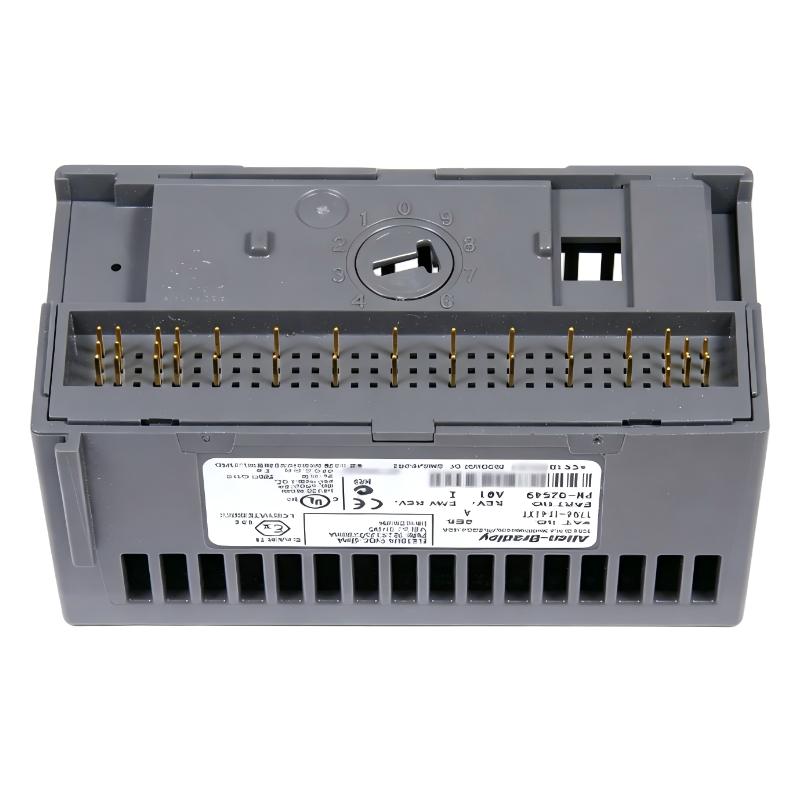

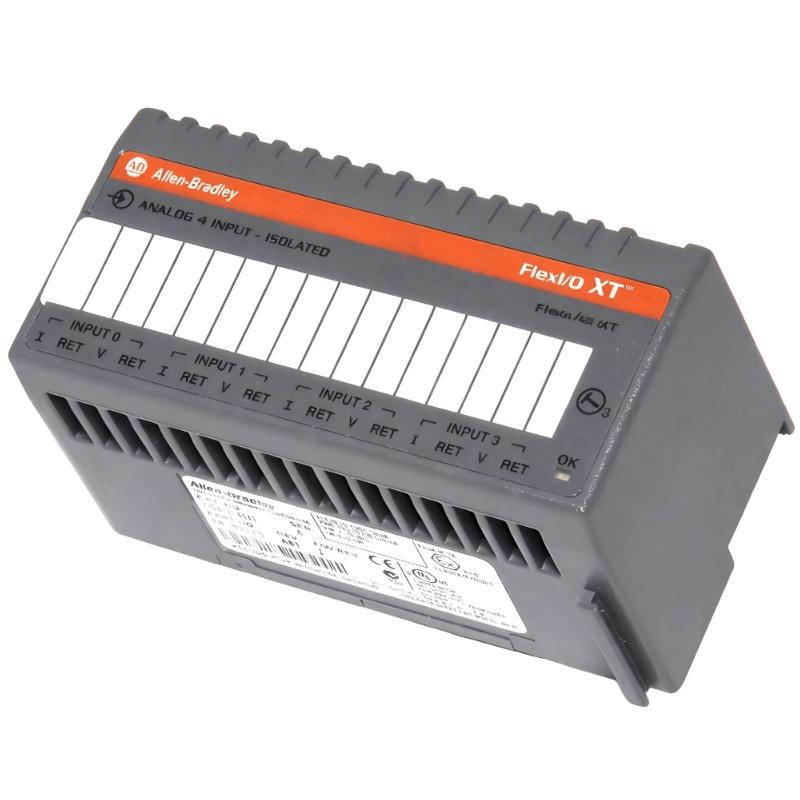

Allen Bradley 1794-IF4IXT Flex I/O-XT Analog Input Module
Allen Bradley 1794-IF4IXT Flex I/O-XT Analog Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1794-IF4IXT Product Origin:USA Product Dimensions:94 x 46 x 53 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1794-IF4IXT Flex I/O-XT Analog Input Module is designed for demanding industrial environments that require reliable and precise analog signal acquisition. As part of the FLEX I/O-XT extended temperature platform, it is engineered to maintain stable performance even under harsh operating conditions.
Technical Specifications
Parameter
Specification
Product Name
Allen Bradley 1794-IF4IXT
Product Type
Analog Input Module
Series
FLEX I/O-XT
Channels
4-point
Input Type
Voltage / Current Analog Input
Isolation
Channel-to-channel isolated
Dimensions
94 × 46 × 53 mm
Weight
0.1 kg
Application
Industrial Process Control
Operating Range
Extended Temperature Environment
Recommended Related Models
Model Number
Product Name
1794-IF4I
FLEX I/O Analog Input Module
1794-IE8
8-Point Analog Input Module
1794-OE4
Analog Output Module
1794-IRT8
RTD Temperature Input Module
Popular Related Models
Model Number
Product Name
1794-IB16
Digital Input Module
1794-OB16
Digital Output Module
1794-IA16
AC Input Module
1794-OB32P
Protected Output Module
Applications
• Industrial process control systems requiring high-accuracy analog signal acquisition from field sensors.
• Distributed FLEX I/O-XT architectures used in harsh and temperature-variable industrial environments.
• Manufacturing automation systems where voltage and current signals from transmitters must be reliably monitored.
• Chemical and energy processing plants requiring stable long-distance signal transmission and measurement.
• Machine-level monitoring systems integrating multiple analog inputs into PLC-based control logic.
Key Advantages
• 4-channel isolated analog input design improves signal stability and reduces electrical interference.
• Extended temperature capability supports reliable operation in harsh industrial environments.
• High-resolution signal conversion ensures accurate measurement of voltage and current inputs.
• Channel-to-channel isolation enhances safety and minimizes cross-signal distortion.
• FLEX I/O-XT modular structure allows flexible system expansion and easy integration.
Technical FAQs
1. What is the main function of the 1794-IF4IXT module?
It is used to acquire analog signals such as voltage and current from field devices and transmit them to the control system.
2. What is FLEX I/O-XT designed for?
It is designed for harsh industrial environments with extended temperature requirements.
3. How many input channels does it have?
It provides 4 analog input channels.
4. What types of signals does it support?
It supports standard industrial voltage and current analog signals.
5. Is the module isolated?
Yes. It features channel-to-channel isolation for improved signal stability.
6. Can it be used in outdoor or extreme environments?
Yes. FLEX I/O-XT modules are designed for extended temperature operation.
7. Is it compatible with PLC systems?
Yes. It integrates directly into Allen Bradley PLC-based control architectures.
8. What industries commonly use this module?
It is used in oil and gas, chemical processing, manufacturing, and energy systems.
9. Does it support modular expansion?
Yes. It is part of the FLEX I/O-XT modular system.
10. What is the benefit of analog isolation?
It reduces noise interference and improves measurement accuracy.
