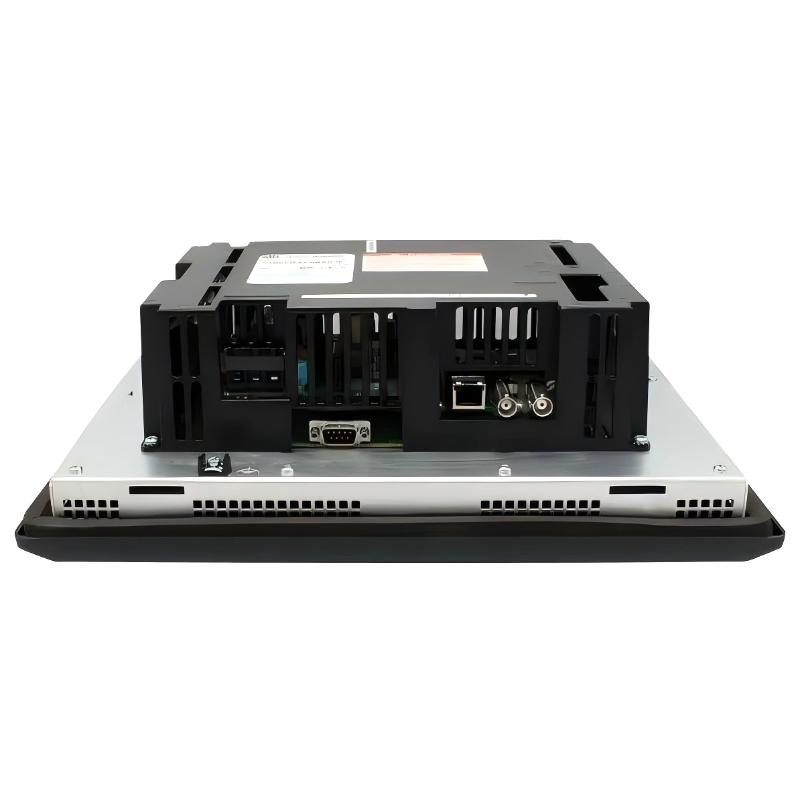

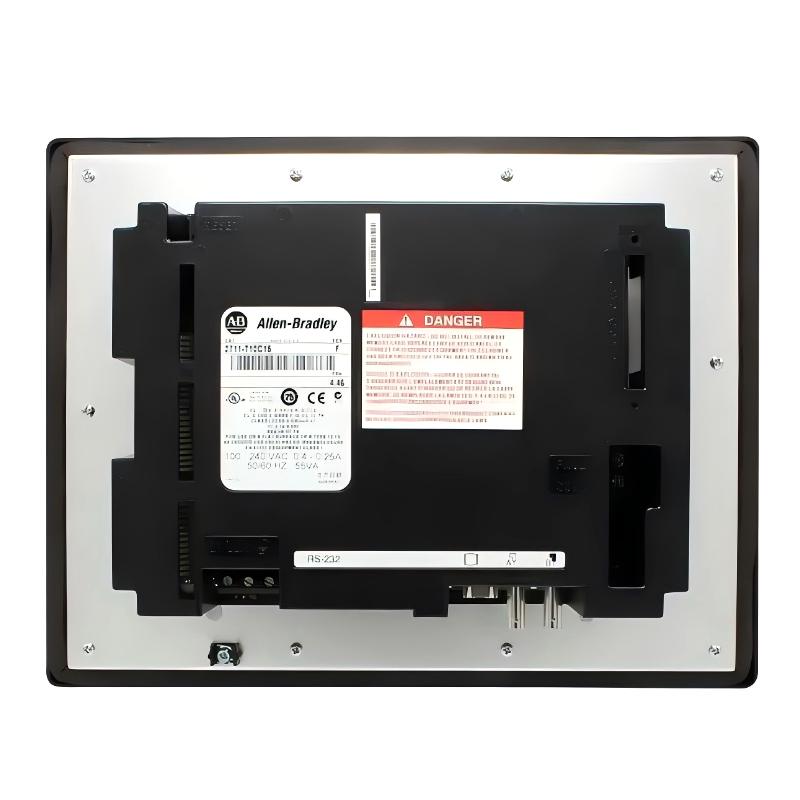

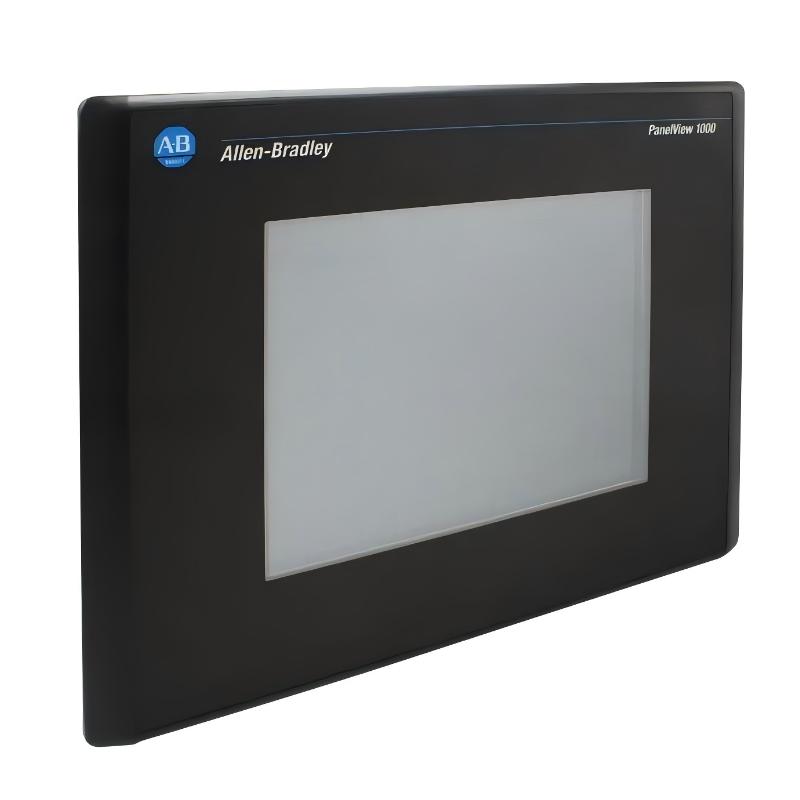

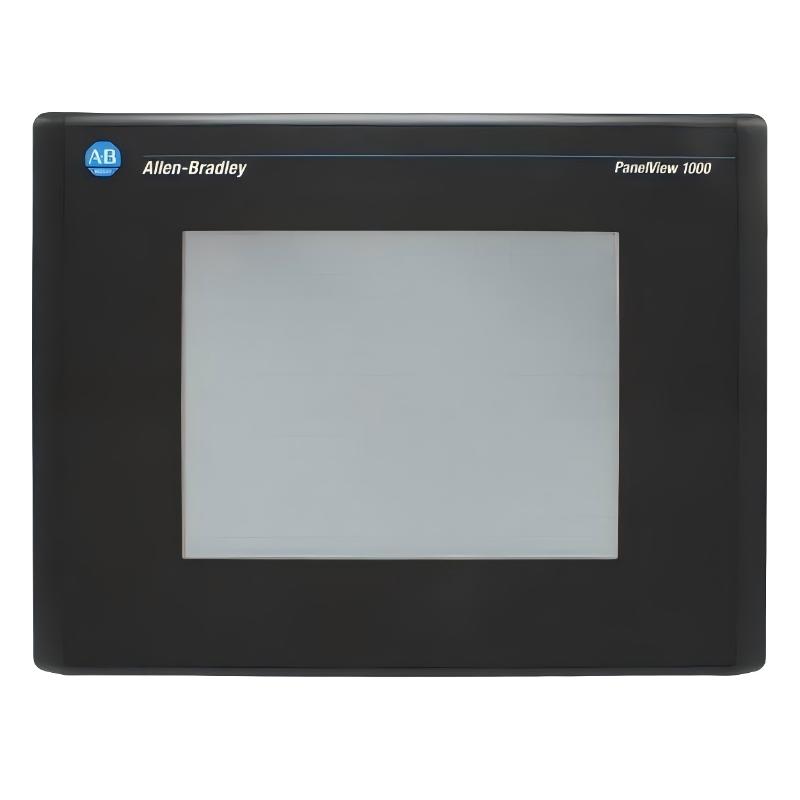

Allen Bradley 2711-T10C15 PanelView 1000 Operator Interface
Allen Bradley 2711-T10C15 PanelView 1000 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711-T10C15 Product Origin:USA Product Dimensions:370 x 112 x 282 mm Product Weight:3.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The 2711-T10C15 is part of the Allen-Bradley PanelView 1000 series, a widely deployed legacy HMI platform used in industrial automation systems for operator interaction and machine monitoring.
It provides a stable and durable interface between operators and PLC-controlled processes, offering reliable visualization and control capabilities. Although it has been superseded by newer HMI generations, it remains heavily installed in long-life industrial systems due to its proven reliability and compatibility with older automation architectures.
Technical Specifications
Parameter
Specification
Model
2711-T10C15
Series
PanelView 1000
Display Size
10.1-inch color TFT
Resolution
640 × 480 pixels
Touch Type
Resistive touchscreen
Communication
ControlNet, RS-232 (printer port)
Input Voltage
85–264 V AC
Power Consumption
~39 W
Memory
~256 KB system memory
Operating System
Embedded PanelView runtime OS
Mounting Type
Panel mount
Operating Temperature
0°C to 55°C
Dimensions
370 × 112 × 282 mm
Weight
3.6 kg (7.94 lb)
Applications
The Allen-Bradley 2711-T10C15 PanelView 1000 Operator Interface is designed for legacy industrial automation systems requiring robust operator visualization and direct PLC communication in stable production environments.
It is commonly used in:
SLC 500 and early ControlLogix-based control systems
Industrial machine operation and monitoring stations
Process control panels in manufacturing plants
Packaging and material handling equipment
SCADA front-end operator interfaces in legacy systems
OEM machinery requiring 10-inch HMI visualization
Industrial retrofit and replacement installations
This model is widely found in long-life industrial installations where system continuity and compatibility with existing PanelView 1000 infrastructure are critical.
Advantages
Large 10-inch color TFT touchscreen for clear operator visibility
Proven PanelView 1000 platform with long industrial service history
Reliable ControlNet communication for deterministic industrial networking
RS-232 printer port support for legacy system integration
Rugged industrial enclosure designed for harsh environments
Stable operation in 24/7 continuous production systems
Compatible with established PanelBuilder32 engineering workflow
High durability for long lifecycle industrial deployments
Strong installed base ensuring maintenance and replacement availability
Suitable for retrofit and spare-part-driven maintenance strategies
Technical FAQs (10 Technical Questions)
1. Does the 2711-T10C15 support ControlNet communication?
Yes, it includes a built-in ControlNet communication interface.
2. Can it be used with modern ControlLogix PLCs?
It can connect via legacy communication paths, but it is not optimized for modern architectures.
3. What software is used to program it?
It is configured using PanelBuilder32 software.
4. Does it support Ethernet communication?
No, this model relies on ControlNet and serial-based interfaces.
5. Is the touchscreen resistive or capacitive?
It uses an industrial resistive touchscreen.
6. Can it still be repaired or replaced easily?
Yes, it is widely supported in industrial refurbishment and replacement markets.
7. Does it support USB data transfer?
No native USB support is included in this generation.
8. Is this model still in production?
No, it is considered a legacy PanelView 1000 terminal.
9. Can it operate in harsh environments?
Yes, it is designed for industrial vibration, EMI, and temperature variation resistance.
10. What is its main limitation compared to newer HMIs?
Limited communication flexibility and lower processing capability compared to modern PanelView Plus systems.
