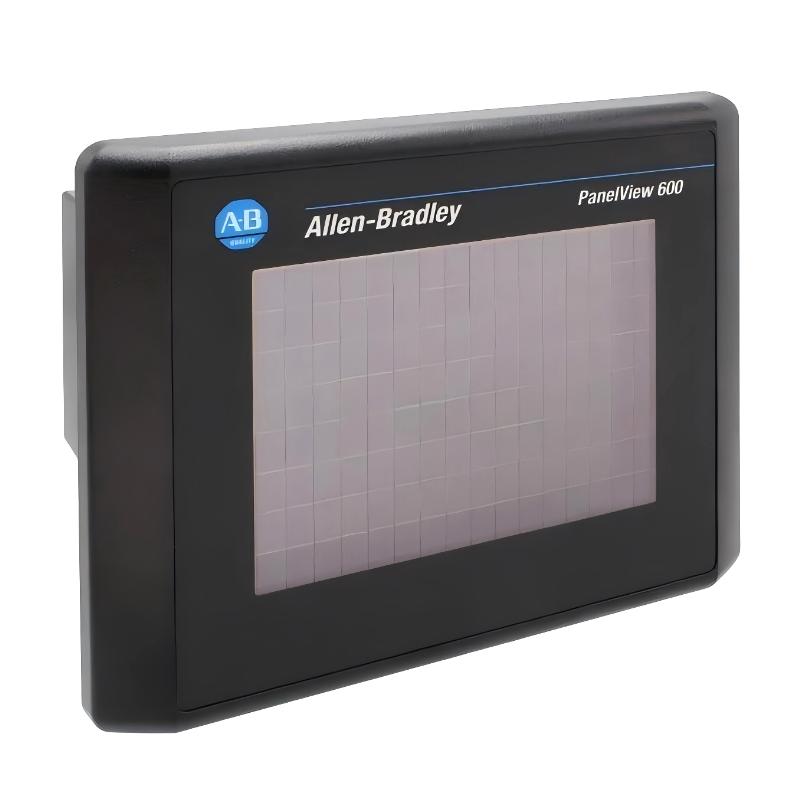

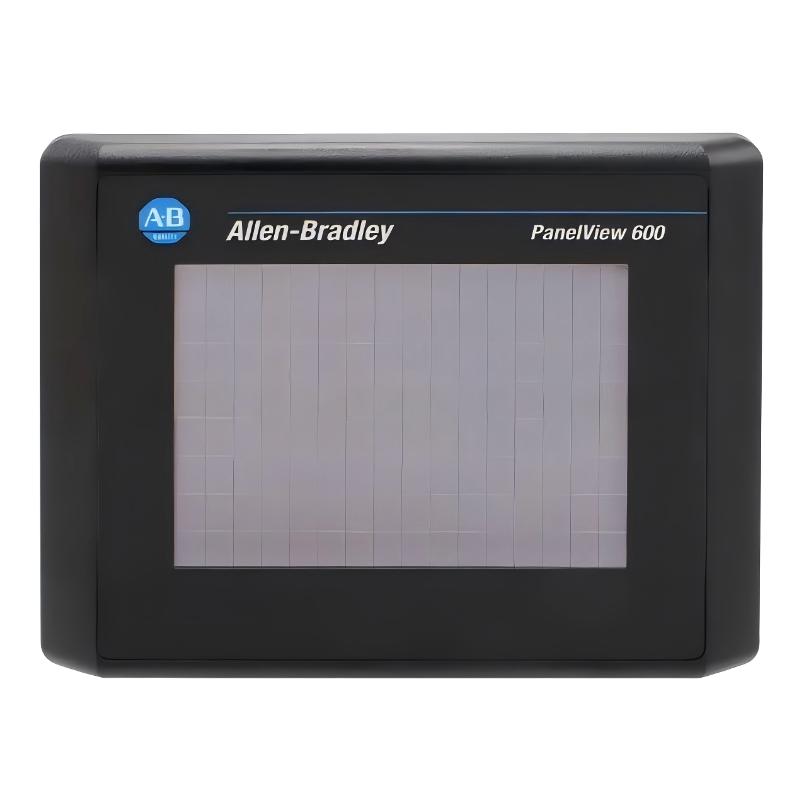

Allen Bradley 2711-T6C1L1 PanelView 600 Operator Interface
Allen Bradley 2711-T6C1L1 PanelView 600 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711-T6C1L1 Product Origin:USA Product Dimensions:185 x 96 x 152 mm Product Weight:1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The 2711-T6C1L1 is part of the Allen-Bradley PanelView 600 family, a widely deployed legacy HMI platform used in industrial automation systems for operator interaction and machine visualization.
It provides a stable interface between PLC systems and human operators, enabling process monitoring, alarm handling, and basic control functions. Although it has been superseded by newer HMI generations, it remains heavily used in installed industrial bases due to its reliability and long lifecycle support in maintenance environments.
Technical Specifications
Parameter
Specification
Model
2711-T6C1L1
Series
PanelView 600
Display Size
6.5-inch color TFT
Resolution
320 × 240 pixels
Touch Type
Resistive touchscreen
Communication
Remote I/O (RIO), RS-232 printer port
Input Voltage
18–32 V DC (typical)
Power Consumption
~24 W
Memory
~190 KB application memory
Software
PanelBuilder32
Mounting Type
Panel mount
Operating Temperature
0°C to 55°C
Dimensions
185 × 96 × 152 mm
Weight
1 kg (2.20 lb)
Applications
The Allen-Bradley 2711-T6C1L1 PanelView 600 Operator Interface is designed for legacy industrial automation systems where compact HMI visualization and reliable PLC communication are required for stable machine operation.
It is widely used in:
SLC 500 and PLC-5 based control systems
Small to mid-scale industrial machine panels
Packaging, assembly, and material handling equipment
Process monitoring in legacy manufacturing lines
SCADA operator stations in older automation architectures
This model is especially common in long-life industrial environments where system continuity is more important than modernization.
Advantages
Compact 6-inch industrial color touchscreen interface
Proven PanelView 600 architecture with long field reliability
Supports Remote I/O (RIO) for legacy Allen-Bradley networks
RS-232 printer port for event and alarm documentation
Rugged resistive touchscreen designed for industrial use
Stable operation in continuous production environments
Compatible with PanelBuilder32 engineering workflow
Strong installed base for maintenance and replacement support
Reliable performance in electrically noisy environments
Cost-effective solution for legacy HMI replacement
Technical FAQs (10 Technical Questions)
1. Does the 2711-T6C1L1 support Ethernet communication?
No, it relies mainly on Remote I/O (RIO) and RS-232 communication.
2. What software is used to program this HMI?
It is configured using PanelBuilder32 software.
3. Can it connect to modern ControlLogix PLCs?
Only indirectly through legacy communication gateways.
4. Does it support USB or SD card storage?
No, it does not include USB or SD expansion interfaces.
5. What communication ports are available?
It supports Remote I/O (RIO) and RS-232 printer communication.
6. Is this model still in production?
No, it is a discontinued legacy PanelView 600 terminal.
7. Can it be refurbished or repaired?
Yes, it is commonly supported in industrial repair and refurbishment markets.
8. What type of touchscreen does it use?
It uses a resistive touchscreen designed for industrial environments.
9. Is it suitable for harsh industrial environments?
Yes, it is designed for vibration, EMI, and temperature variation resistance.
10. What is its main limitation today?
Limited connectivity options and outdated programming ecosystem compared to modern PanelView Plus or PanelView 800 series.
