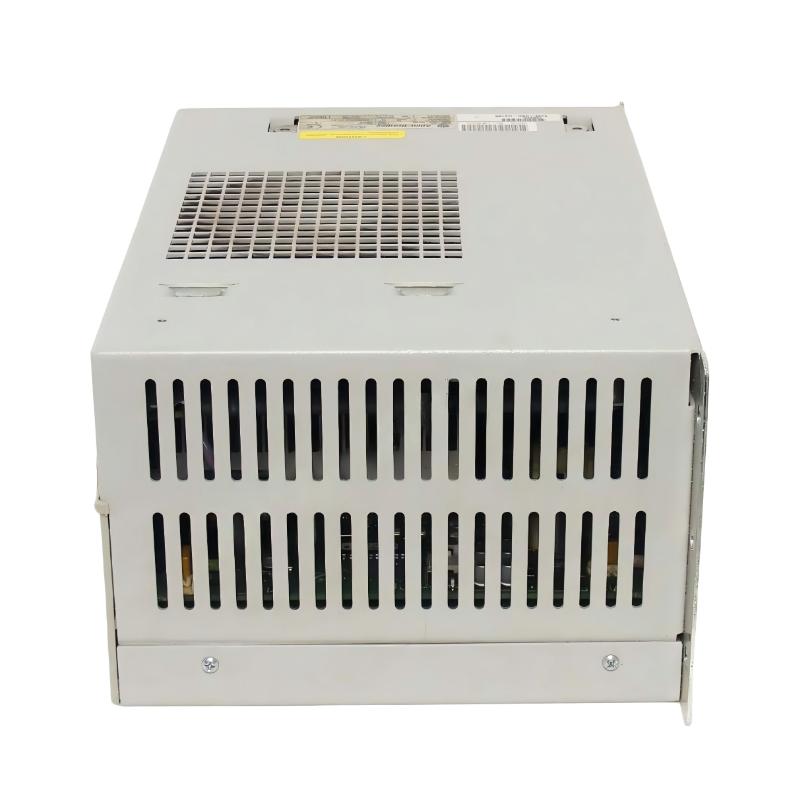

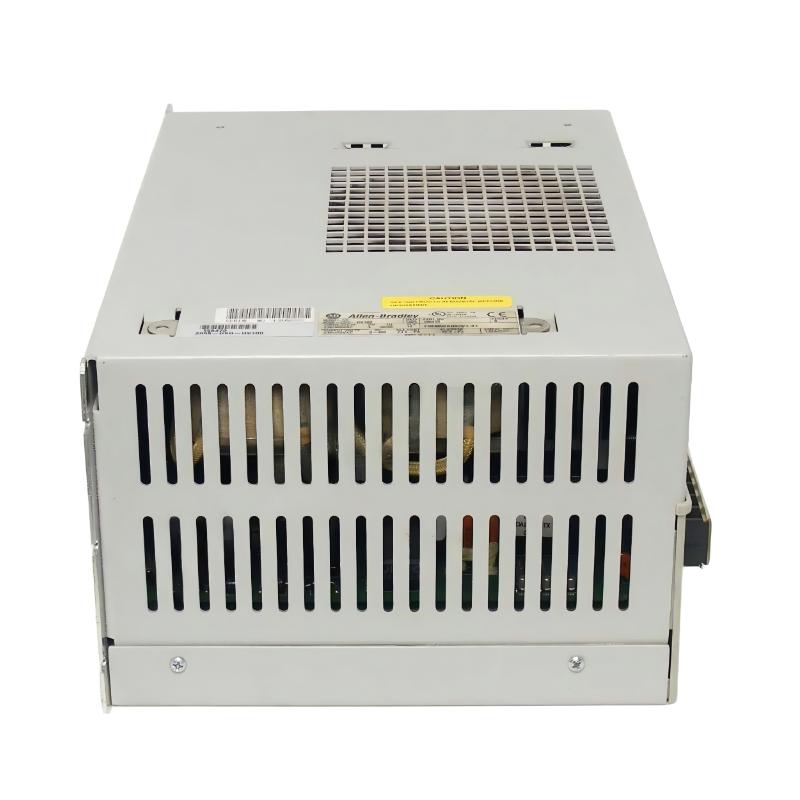

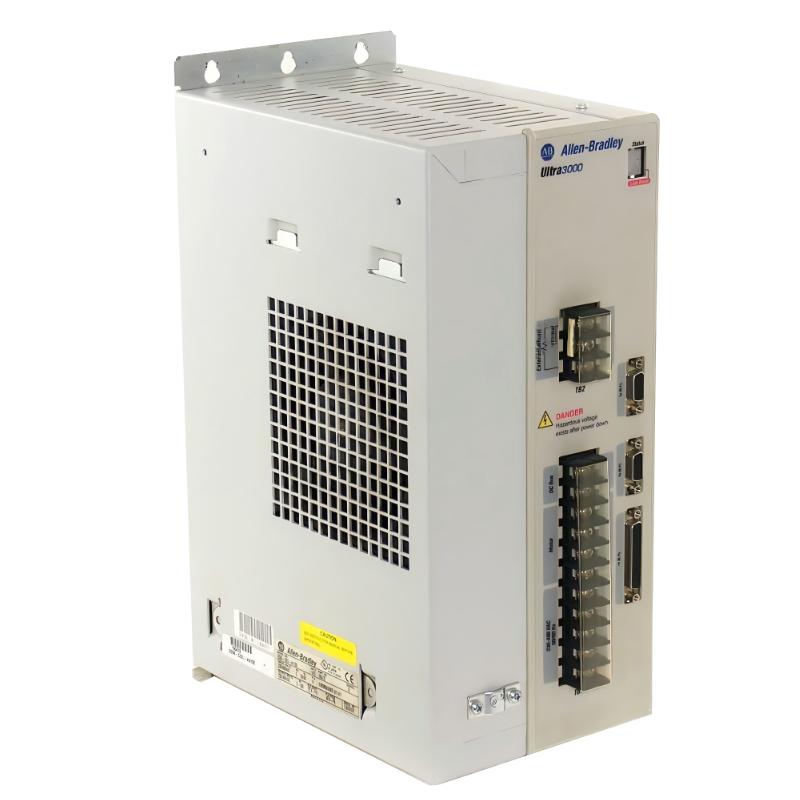

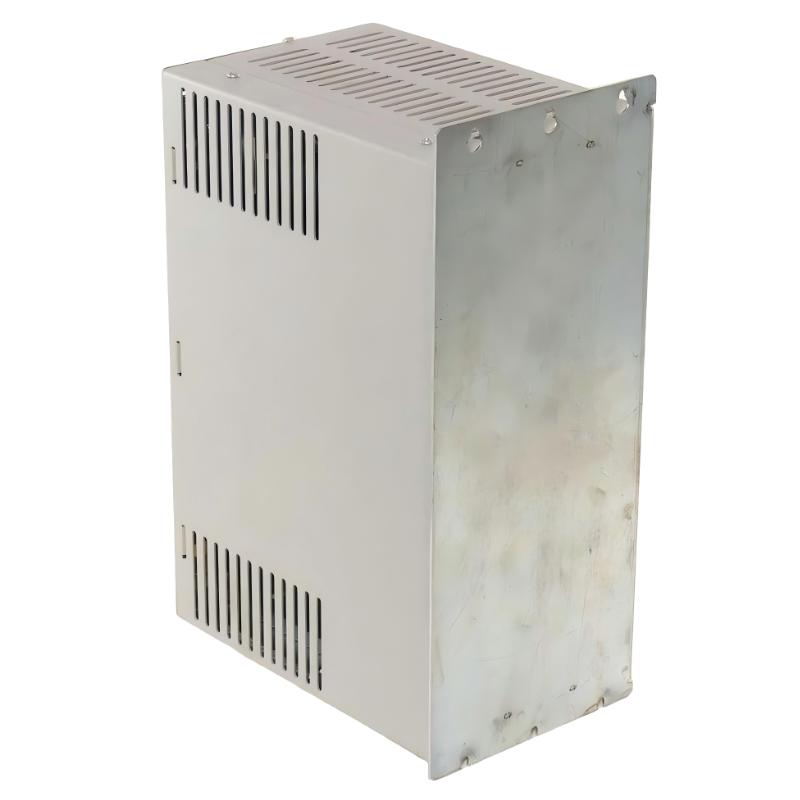

Allen Bradley 2098-DSD-HV100 Ultra3000 Digital Servo Drive

Applications

• High-power motion control systems requiring precise servo positioning in industrial automation equipment.

• CNC machining centers where accurate speed, torque, and position control are essential for production quality.

• Packaging and converting machinery needing synchronized multi-axis motion performance.

• Robotics and automated assembly systems using servo-driven positioning and repeatable motion cycles.

• Heavy-duty manufacturing lines requiring stable high-voltage servo drive performance under continuous operation.

Key Advantages

• High-power 10 kW class servo drive supports demanding industrial motion applications.

• Ultra3000 architecture provides flexible control options for diverse automation system designs.

• Stable high-voltage operation ensures reliable performance in heavy industrial environments.

• Supports precise motion control for complex positioning and high-speed production tasks.

• Robust industrial design enhances durability and long-term operational reliability.

Technical FAQs

1. What is the main function of the 2098-DSD-HV100 servo drive?

It provides high-power servo motor control for industrial motion applications requiring precise positioning and speed regulation.

2. What series does this drive belong to?

It belongs to the Allen Bradley Ultra3000 servo drive series.

3. What type of applications is it used for?

It is commonly used in CNC machinery, robotics, packaging systems, and industrial automation lines.

4. Is this a single-axis or multi-axis system component?

It is primarily designed for single-axis servo control applications.

5. What makes this drive suitable for industrial environments?

Its rugged construction and stable high-voltage operation support continuous industrial use.

6. Does it support precise positioning control?

Yes. It is designed for high-accuracy motion and positioning control.

7. Can it be integrated into automation systems?

Yes. It is used in PLC-based industrial automation architectures.

8. Is this model still actively produced?

No. The Ultra3000 series has been discontinued, with replacement solutions available.

9. What is the power class of this drive?

It supports up to approximately 10 kW output depending on configuration.

10. What industries commonly use this product?

It is used in manufacturing, packaging, CNC machining, robotics, and material processing industries.
