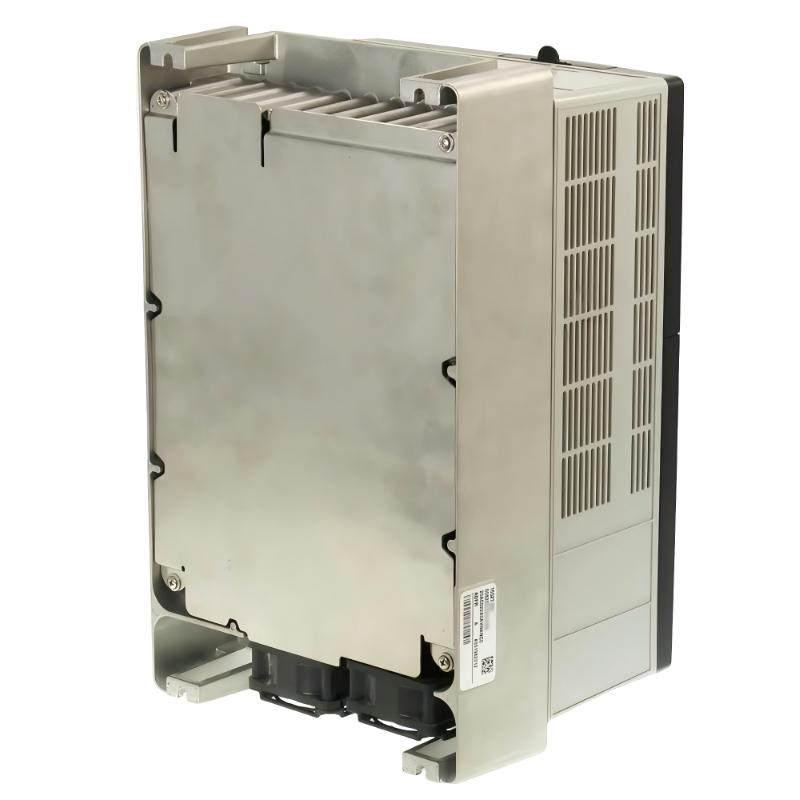

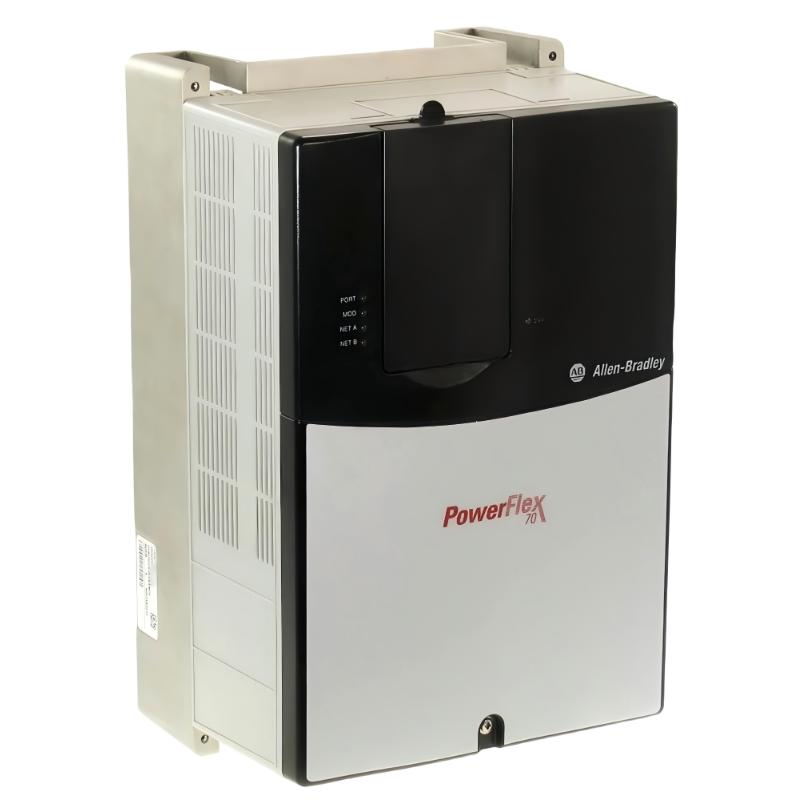

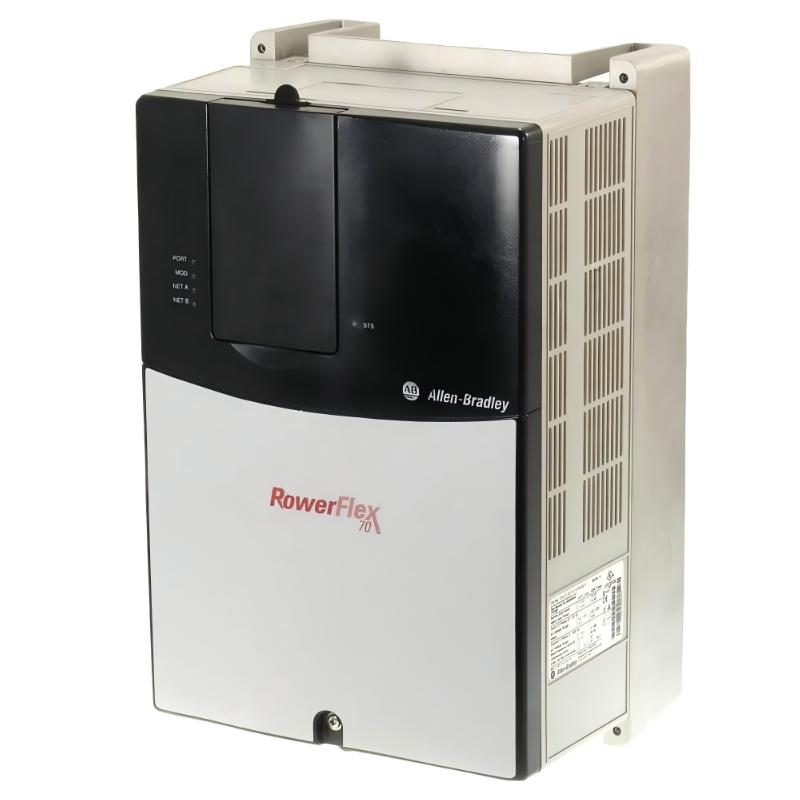

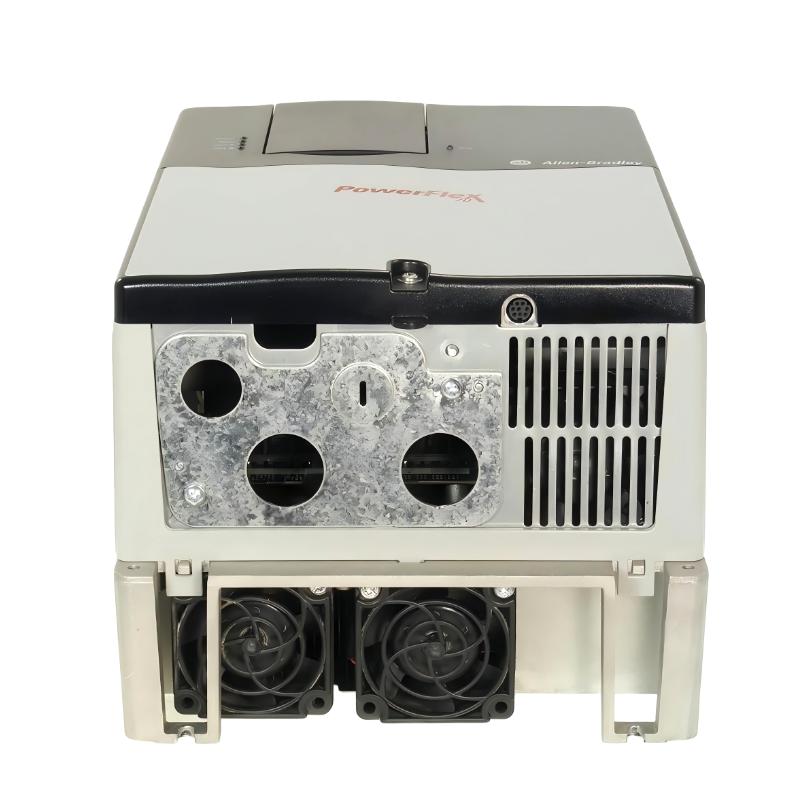

Allen Bradley 20AC022A0AYNANC0 PowerFlex 70 AC Drive
Allen Bradley 20AC022A0AYNANC0 PowerFlex 70 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20AC022A0AYNANC0 Product Origin:USA Product Dimensions:350 x 219.9 x 179.8 mm Product Weight:9.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20AC022A0AYNANC0 PowerFlex 70 AC Drive is a variable frequency drive designed to deliver reliable motor control for a wide range of industrial applications. It provides precise speed and torque regulation, making it suitable for systems requiring stable and efficient motor performance.
Technical Specifications
Parameter
Specification
Product Name
Allen Bradley 20AC022A0AYNANC0
Product Type
AC Drive
Series
PowerFlex 70
Rated Power
11 kW (15 HP)
Rated Current
22 A
Input Voltage
380–480V AC, 3-phase
Dimensions
350 × 219.9 × 179.8 mm
Weight
9.25 kg
Control Method
V/Hz, Sensorless Vector Control
Communication
EtherNet/IP (optional depending on config)
Application
Industrial Motor Control
Recommended Related Models
Model Number
Product Name
20AC030A0AYNANC0
PowerFlex 70 AC Drive 30A Variant
20AD022A0AYNANC0
PowerFlex 70 AC Drive DeviceNet Variant
20AB022A0AYNANC0
PowerFlex 70 AC Drive Basic Control Version
20AC015A0AYNANC0
PowerFlex 70 AC Drive 15A Model
Popular Related Models
Model Number
Product Name
25B-D017N114
PowerFlex 525 AC Drive
22A-D2P3N104
PowerFlex 4M AC Drive
20G11NC022JA0NNNNN
PowerFlex 750 Series Drive
20AD014A0AYNANC0
PowerFlex 70 AC Drive Lower Power Variant
Applications
• Industrial motor speed control systems requiring precise torque and speed regulation in manufacturing environments.
• Conveyor and material handling systems where adjustable motor speed improves process efficiency and flow control.
• Pump and fan applications in HVAC and process industries requiring energy-efficient motor control.
• Packaging and production machinery needing stable variable frequency drive performance for synchronized operations.
• Heavy-duty automation systems integrating PLC control with industrial AC motor drives.
Key Advantages
• Advanced sensorless vector control provides stable motor performance across a wide speed range.
• Compact industrial design allows flexible installation in standard control cabinet environments.
• Integrated braking support improves stopping control and system safety in dynamic applications.
• EtherNet/IP compatibility enables seamless integration into modern Rockwell Automation systems.
• High efficiency operation helps reduce energy consumption in continuous-duty industrial processes.
Technical FAQs
1. What is the main function of the PowerFlex 70 20AC022A0AYNANC0 drive?
It is used to control the speed, torque, and direction of AC motors in industrial automation systems.
2. What is the power rating of this model?
It is rated at approximately 11 kW (15 HP) with a nominal current of 22 A.
3. What type of control methods does it support?
It supports V/Hz control and sensorless vector control for improved motor performance.
4. Can it be integrated with PLC systems?
Yes. It is commonly integrated with Allen Bradley PLC-based control architectures.
5. Does it support industrial communication protocols?
Yes. It supports EtherNet/IP and other industrial communication options depending on configuration.
6. What industries commonly use this drive?
It is widely used in manufacturing, HVAC, packaging, and material handling industries.
7. Is it suitable for heavy-duty operation?
Yes. It is designed for continuous industrial operation with robust performance.
8. Does it support braking functions?
Yes. It includes braking control features for improved deceleration performance.
9. What type of motors is it compatible with?
It is designed for standard three-phase AC induction motors.
10. Is this model still in production?
The PowerFlex 70 series is considered legacy, with newer PowerFlex models available as replacements.
