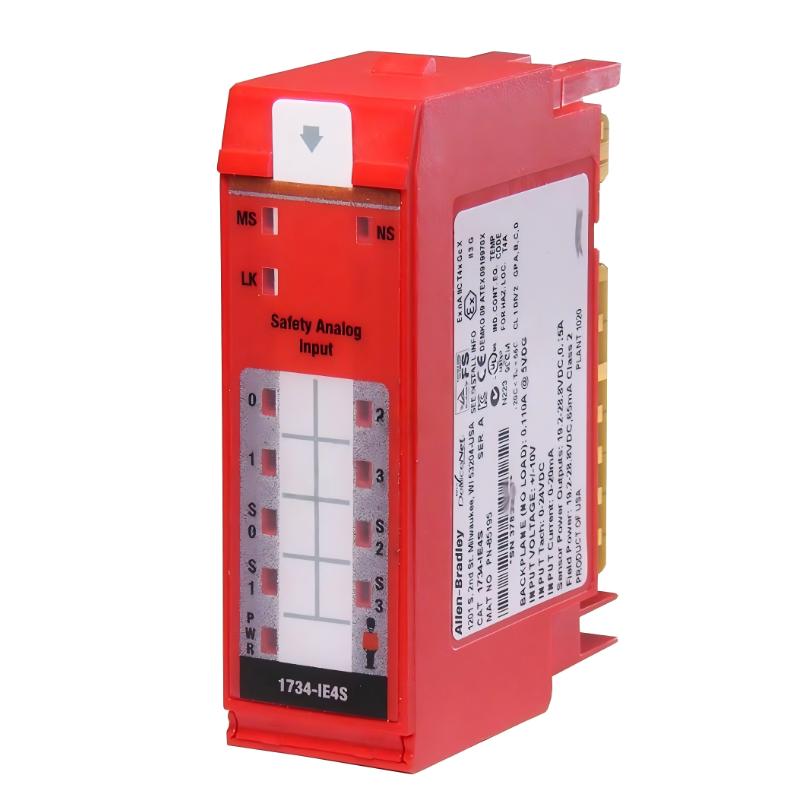

Allen Bradley 1734-IE4S Point Guard I/O Safety 4-Channel Analog Input Module

Applications

• Safety-related process monitoring systems requiring reliable analog signal acquisition from critical field sensors.

• GuardLogix-based safety automation architectures using CIP Safety over EtherNet/IP for integrated control and protection.

• Industrial machinery safety systems monitoring pressure, temperature, or position signals in real time.

• Hazardous process environments where validated and monitored analog inputs are required for safe operation.

• Machine safety applications including emergency shutdown and protective interlock monitoring systems.

Key Advantages

• Safety-rated analog input design ensures reliable signal acquisition for safety-critical automation systems.

• Supports multiple signal types including voltage and current inputs for flexible field device integration.

• Integrated diagnostics and fault detection improve system reliability and reduce downtime risks.

• Seamless integration with POINT Guard I/O architecture enables scalable safety system expansion.

• CIP Safety communication ensures secure and deterministic data exchange with GuardLogix controllers.

Technical FAQs

1. What is the main function of the 1734-IE4S module?

It acquires analog signals from field devices and transmits them to a safety controller for monitoring and protection functions.

2. Is the 1734-IE4S a safety-rated module?

Yes. It belongs to the POINT Guard I/O safety module family designed for functional safety applications.

3. What types of input signals does it support?

It supports voltage and current analog signals, typically used in industrial sensing applications.

4. How many input channels does it have?

It provides 4 independent safety analog input channels.

5. Can it be used with GuardLogix systems?

Yes. It is designed for integration with GuardLogix safety controllers via CIP Safety.

6. Is the module suitable for harsh environments?

Yes. It is built for industrial environments with electrical noise and demanding operating conditions.

7. Does it support diagnostic functions?

Yes. It includes built-in diagnostics for channel monitoring and fault detection.

8. Can each channel be configured independently?

Yes. Each channel can be configured based on application requirements.

9. What is the benefit of safety analog input modules?

They ensure monitored and validated signal acquisition for safety-related automation decisions.

10. Where is this module commonly used?

It is widely used in machine safety systems, process industries, and automated production environments requiring functional safety compliance.
