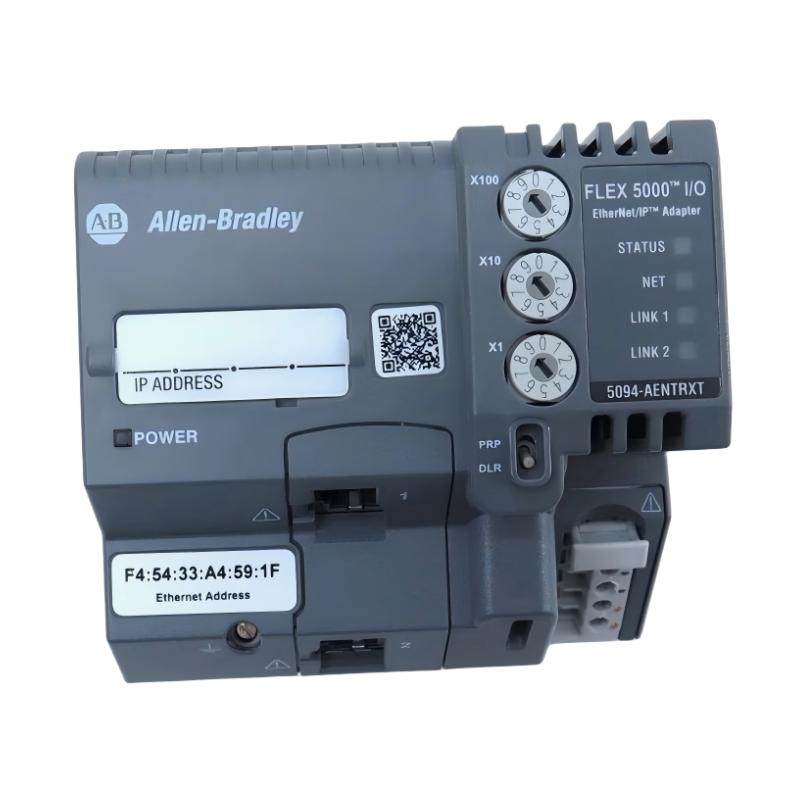

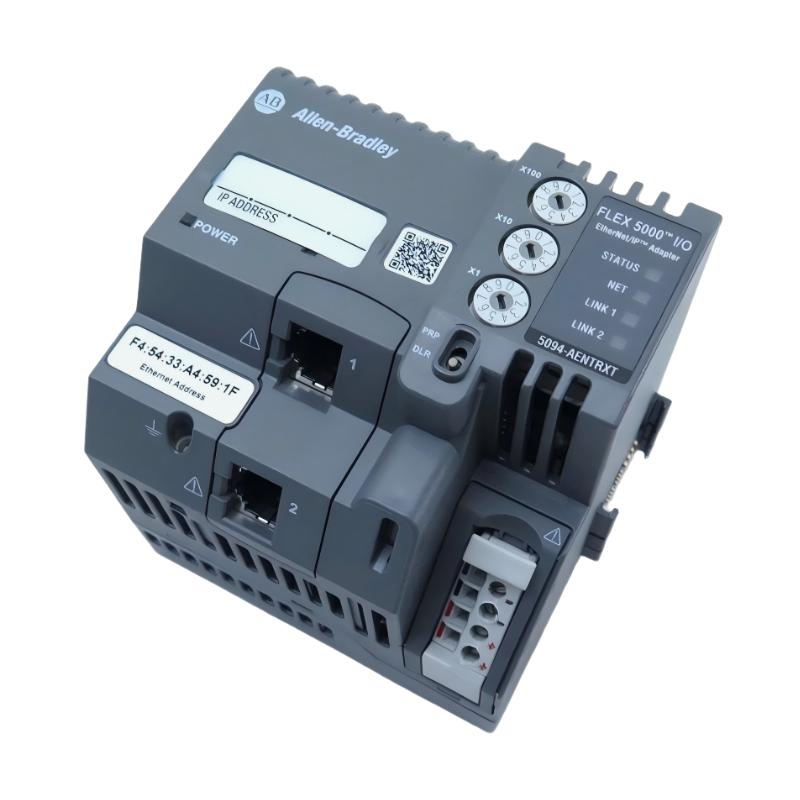

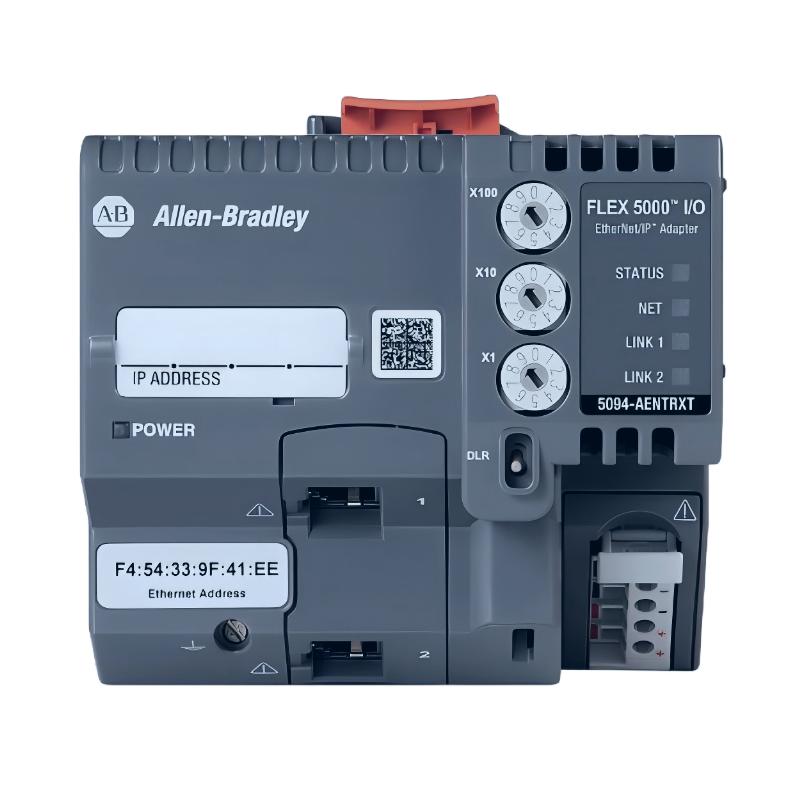

Allen Bradley 5094-AENTRXT Flex 5000 EtherNet/IP Adapter
Allen Bradley 5094-AENTRXT Flex 5000 EtherNet/IP Adapter
0.0
Points
Brand:Allen Bradley PLC Item No.:5094-AENTRXT Product Origin:USA Product Dimensions:96.5 x 92.7 x 94 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 5094-AENTRXT is a FLEX 5000 EtherNet/IP adapter engineered for robust industrial communication in distributed I/O systems. It enables seamless data exchange between FLEX 5000 I/O modules and Logix-based controllers while maintaining high reliability in demanding environments.
With extended environmental capability and high-speed network performance, it is suitable for modern smart manufacturing systems requiring scalable and resilient communication infrastructure.
Technical Specifications
Parameter
Specification
Model
Allen-Bradley 5094-AENTRXT
Product Type
FLEX 5000 EtherNet/IP Adapter
Communication Protocol
EtherNet/IP
Ethernet Ports
Dual RJ45
Topology Support
Line / Star / DLR
Application
Distributed I/O communication
Dimensions
96.5 × 92.7 × 94 mm
Weight
0.4 kg (0.88 lb)
Environmental Rating
Extended temperature (XT variant)
Configuration Tool
Studio 5000
Applications
The Allen-Bradley 5094-AENTRXT FLEX 5000 EtherNet/IP Adapter is designed for high-performance distributed I/O communication in industrial automation systems that require reliable network connectivity, extended environmental tolerance, and scalable architecture.
Typical applications include:
Large-scale manufacturing automation systems
Automotive production lines with distributed I/O islands
High-speed packaging and sorting machines
Process control systems requiring deterministic Ethernet communication
Energy and utility monitoring infrastructures
OEM machine platforms using FLEX 5000 modular expansion
Its extended-temperature (XT) design makes it suitable for harsher industrial environments compared to standard variants.
Advantages
Dual-port EtherNet/IP communication for flexible network topology
Supports linear, star, and Device Level Ring (DLR) architectures
Extended environmental rating for demanding industrial conditions
High-speed deterministic data exchange for real-time control
Supports up to multiple FLEX 5000 I/O modules in a single node architecture
Simplified integration with Logix-based controllers
Reduced wiring complexity through network-based distributed I/O
Technical FAQs (10 Technical Questions)
Q1: What is the main function of the 5094-AENTRXT?
It is an EtherNet/IP adapter for FLEX 5000 I/O systems enabling communication with controllers.
Q2: What makes the XT version different?
The XT variant is designed for extended temperature and harsher industrial environments.
Q3: Does it support dual Ethernet ports?
Yes, it includes two EtherNet/IP ports for flexible topology design.
Q4: Can it be used in ring networks?
Yes, it supports Device Level Ring (DLR) configurations.
Q5: How many I/O modules can it support?
It supports a FLEX 5000 node architecture with multiple modules per adapter (system-dependent configuration).
Q6: Is it compatible with CompactLogix systems?
Yes, it integrates via EtherNet/IP with Logix controllers.
Q7: Does it support remote diagnostics?
Yes, it provides network and module-level diagnostic capabilities.
Q8: What software is used for configuration?
It is configured using Studio 5000 Logix Designer.
Q9: Is it suitable for harsh industrial environments?
Yes, the XT variant is specifically designed for extended environmental conditions.
Q10: Does it support redundant network design?
Yes, it can be used in resilient industrial Ethernet architectures.
