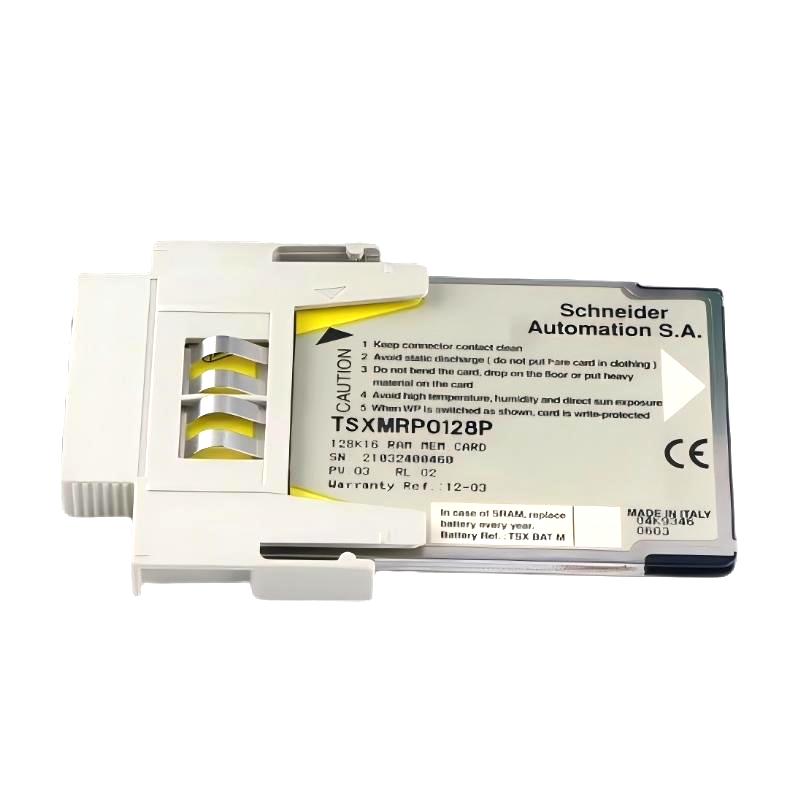

Schneider TSXMRP0128P SRAM Application Memory Expansion

PLC Memory Expansion Applications and High-Speed Automation Data Management

The Schneider TSXMRP0128P SRAM Application Memory Expansion is a dedicated memory accessory designed for Modicon Premium PLC processor systems. It provides additional SRAM application memory capacity for storing PLC programs, application data, and control information, helping automation engineers improve system flexibility and support larger industrial control projects. The TSXMRP0128P is a 128 kB SRAM application memory expansion module designed for compatible Modicon Premium processors.

Unlike non-volatile Flash memory solutions, SRAM memory provides fast read and write performance, making the TSXMRP0128P suitable for applications requiring online program modification and frequent data updates. This capability is especially valuable in engineering environments where PLC logic adjustments, commissioning changes, and application optimization are performed regularly.

The memory expansion card is widely applied in manufacturing equipment, machine automation systems, process control installations, and legacy Schneider PLC platforms. By extending processor memory resources, the TSXMRP0128P enables engineers to manage more complex automation applications while maintaining efficient programming and maintenance operations.

Engineering Advantages and Industrial Performance Features

High-Speed SRAM Application Storage
The TSXMRP0128P uses SRAM technology to provide fast data access and efficient application management. Compared with slower storage technologies, SRAM allows quicker read/write operations, supporting applications that require frequent program updates and online adjustments.

Expanded PLC Memory Capacity
With 128 kB of additional application memory, the TSXMRP0128P helps engineers overcome standard processor memory limitations. It provides additional space for larger PLC programs, application parameters, and automation data structures.

Support for Online Program Modification
One of the key advantages of SRAM memory expansion is the ability to modify applications while the PLC system remains online. This feature improves commissioning efficiency and allows engineers to optimize machine performance without lengthy shutdown procedures.

Designed for Modicon Premium PLC Systems
The TSXMRP0128P is developed specifically for Schneider Modicon Premium automation platforms. It supports compatible processor families including TSX570 to TSX574, TSX57C, and TSXPCI572/3 series processors.

Improved Automation Development Efficiency
By providing additional working memory, the TSXMRP0128P allows automation developers to implement more advanced control strategies, larger application structures, and expanded machine functions.

Reliable Memory Expansion Solution
The compact memory card design provides a practical solution for upgrading existing PLC systems without replacing the main processor hardware. This helps extend the service life of established industrial automation installations.

Simplified Maintenance and Commissioning
The TSXMRP0128P allows technicians to manage PLC applications more efficiently during troubleshooting, system tuning, and equipment upgrades, reducing engineering workload and downtime.

Technical FAQs About Schneider TSXMRP0128P SRAM Application Memory Expansion

Q1: What is the main function of the Schneider TSXMRP0128P?
A: The TSXMRP0128P is an SRAM application memory expansion card used to increase PLC application storage capacity for compatible Modicon Premium processors.

Q2: What type of memory technology does the TSXMRP0128P use?
A: The TSXMRP0128P uses SRAM technology, providing fast read/write access for PLC application data.

Q3: How much application memory does the TSXMRP0128P provide?
A: The TSXMRP0128P provides 128 kB of additional application memory.

Q4: Which Schneider PLC processors support the TSXMRP0128P?
A: The module is compatible with Modicon Premium processors including TSX570 to TSX574, TSX57C, and TSXPCI572/3 platforms.

Q5: Can the TSXMRP0128P support online application changes?
A: Yes. SRAM memory expansion cards support online modification of PLC applications when used with compatible processor systems.

Q6: What should be checked if the PLC cannot detect the memory expansion card?
A: Engineers should verify processor compatibility, correct card installation, memory slot configuration, and connector condition.

Q7: What causes SRAM memory access faults?
A: Common causes include incorrect installation, incompatible PLC firmware, damaged contacts, or processor configuration issues.

Q8: Does the TSXMRP0128P require an external power supply?
A: No. The memory card receives operating power through the PLC processor interface.

Q9: Can the TSXMRP0128P improve PLC program development efficiency?
A: Yes. Additional SRAM capacity allows engineers to manage larger applications and perform adjustments more efficiently during commissioning.

Q10: What maintenance practices are recommended for the TSXMRP0128P?
A: Regular application backups, proper storage conditions, and inspection of card contacts help maintain reliable operation.
