Brand:Epro PLC Item No.:PR6424/01CS Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

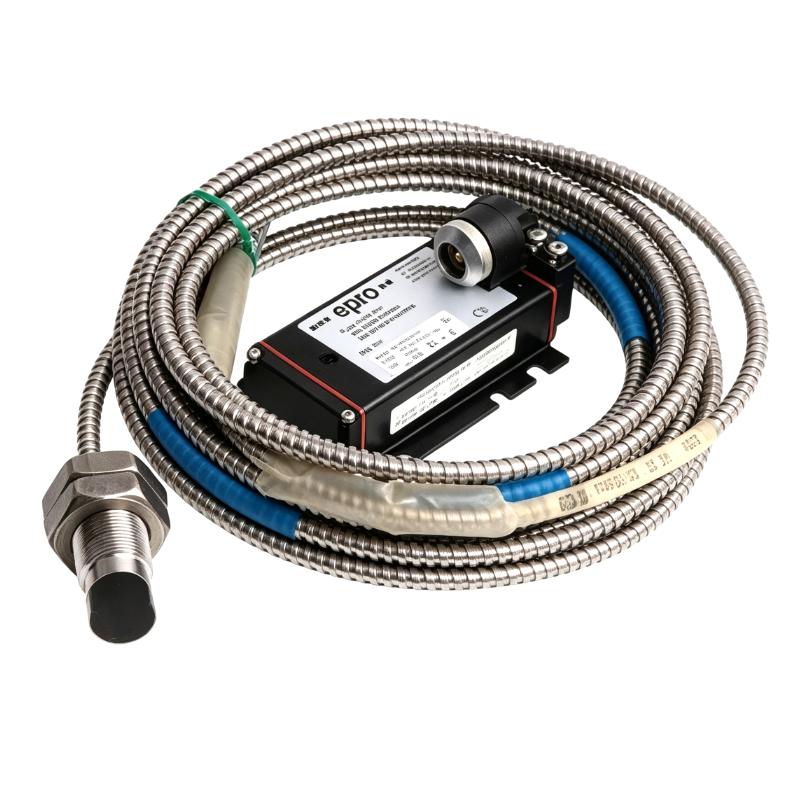

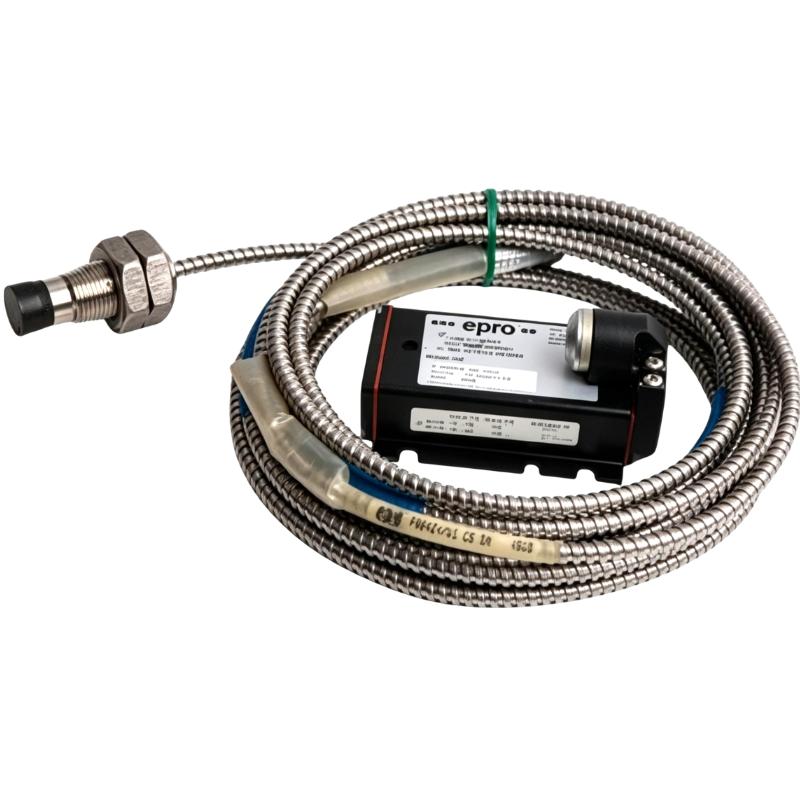

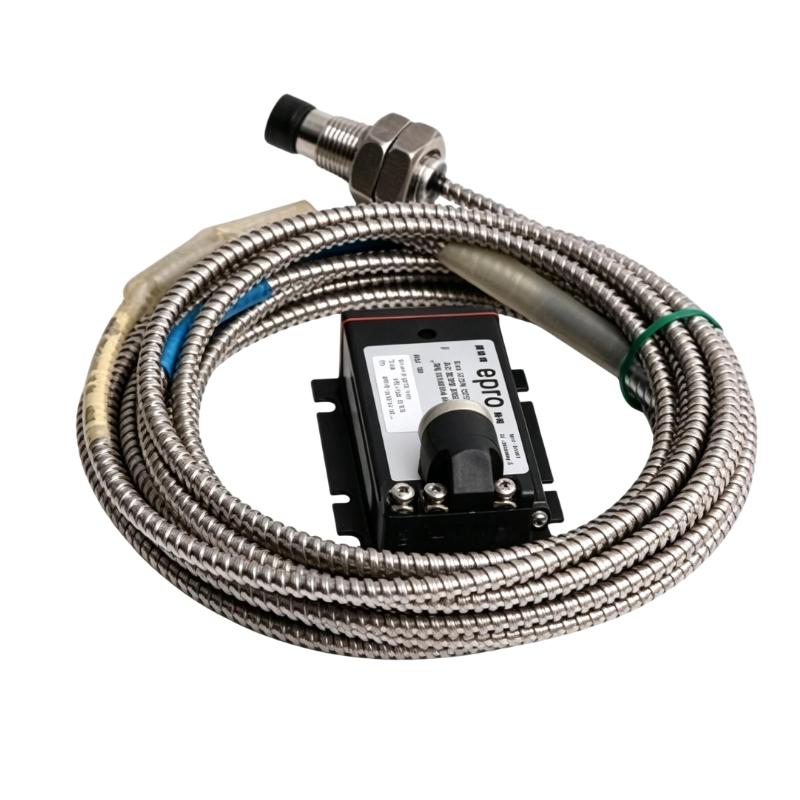

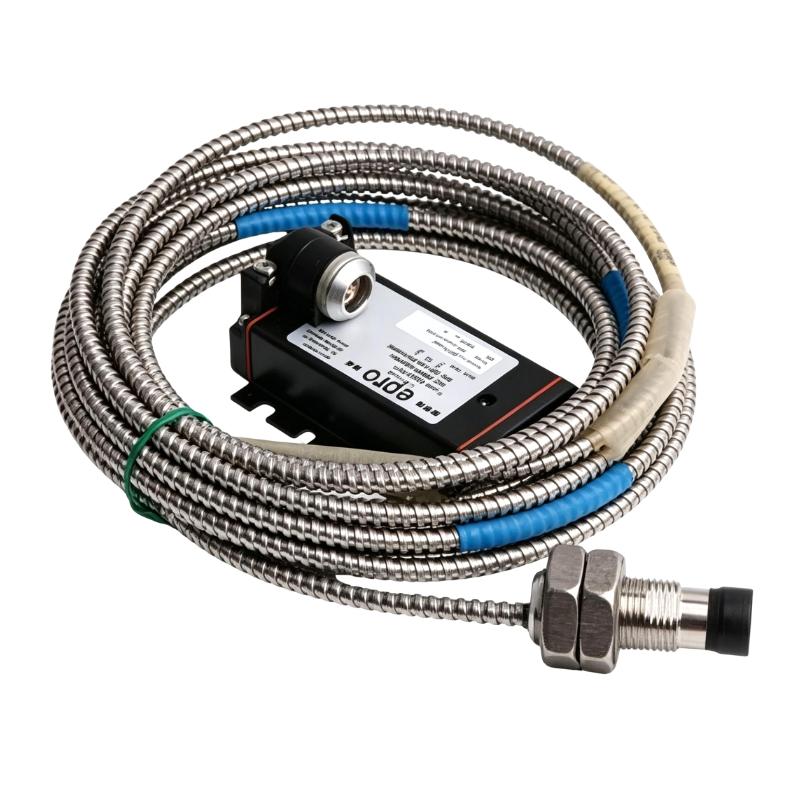

The Epro PR6424/01CS is part of the PR6424 eddy current sensor family developed for high-reliability industrial machinery monitoring. It is engineered for precise measurement of shaft displacement and vibration in demanding environments where mechanical contact sensors cannot be used.
Technical Specifications
Parameter
Specification
Model
PR6424/01CS
Sensor Type
Eddy current proximity sensor
Probe Diameter
16 mm
Measurement Principle
Non-contact eddy current
Sensitivity
~4 V/mm (±1.5%)
Linear Range
±2.0 mm
Dynamic Range
0–1000 µm
Nominal Air Gap
~2.7 mm
Target Material
Ferromagnetic steel
Operating Temperature
-35°C to +180°C (typical system range)
Weight
~0.2 kg
Recommended Related Models
Model
Product Name
PR6424/010-131
Epro 16 mm Eddy Current Sensor Variant
PR6424/002-030
Epro High-Sensitivity Eddy Current Sensor
PR6423/010-100
Epro 8 mm Eddy Current Sensor
CON021
Epro Signal Converter Module
Popular Related Models
Model
Product Name
PR6424/006-030
Epro 16 mm Probe Sensor Series
PR6424/018-010
Epro Industrial Monitoring Sensor Variant
PR9268/201
Epro Vibration Measurement System Sensor
CON031
Epro Advanced Signal Conditioning Module
Applications
• Turbomachinery monitoring systems in steam, gas, and hydro turbines for shaft vibration and displacement measurement.
• Industrial compressor and pump systems requiring continuous non-contact condition monitoring.
• Power generation equipment used for rotor eccentricity and axial position detection.
• Predictive maintenance systems for rotating machinery health monitoring and fault diagnosis.
• High-speed rotating equipment where precise gap and vibration measurement is critical.
• Industrial protection systems compliant with machinery monitoring standards.
Key Advantages
• Provides high-accuracy non-contact measurement based on eddy current displacement sensing technology.
• 16 mm probe head design ensures stable measurement performance on large industrial shafts.
• High sensitivity (approx. 4 V/mm) enables precise vibration and position detection.
• Strong resistance to oil, dust, and harsh industrial environments in rotating machinery applications.
• Compatible with Epro signal converters for advanced condition monitoring systems.
Technical FAQs
Q1: What is the main function of the PR6424/01CS sensor?
It measures shaft displacement, vibration, and position using eddy current technology.
Q2: Does it require physical contact with the target?
No, it is a non-contact sensor.
Q3: What type of machines is it commonly used on?
It is used on turbines, compressors, pumps, and other rotating equipment.
Q4: What signal output does it provide?
It works with external converters to produce proportional voltage signals.
Q5: What is the typical measurement range?
It supports static ±2.0 mm and dynamic up to 1000 µm.
Q6: Is it suitable for high-temperature environments?
Yes, it can operate in industrial high-temperature conditions (up to around 180°C depending on configuration).
Q7: What is the installation distance (air gap)?
The nominal air gap is approximately 2.7 mm.
Q8: Does it support vibration monitoring?
Yes, it is widely used for vibration and condition monitoring.
Q9: What material is the target surface?
It is designed for ferromagnetic steel shafts.
Q10: Is it part of a larger monitoring system?
Yes, it is typically paired with Epro monitoring and signal conditioning modules.
