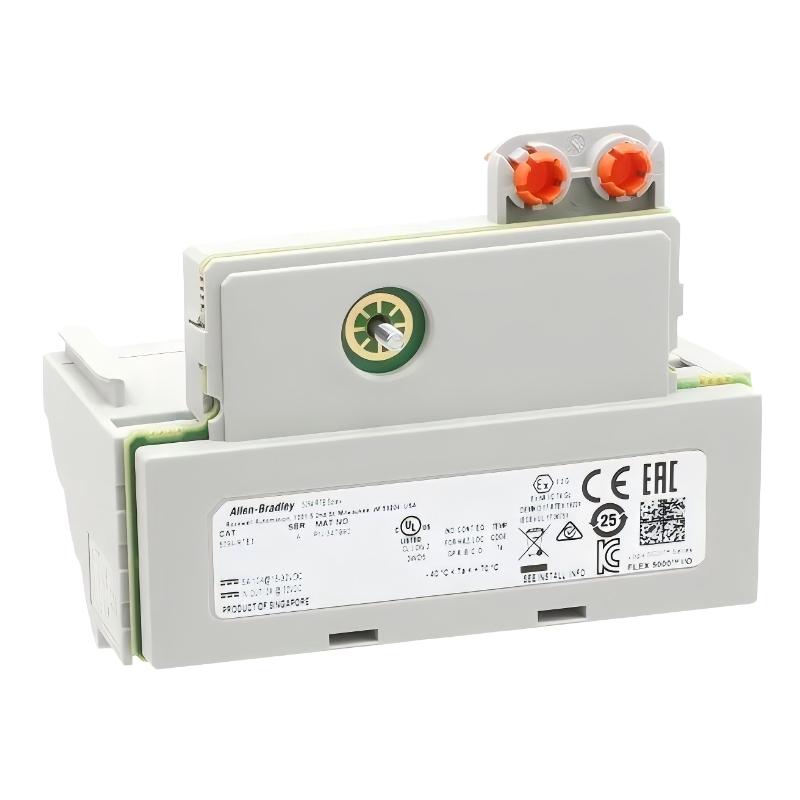

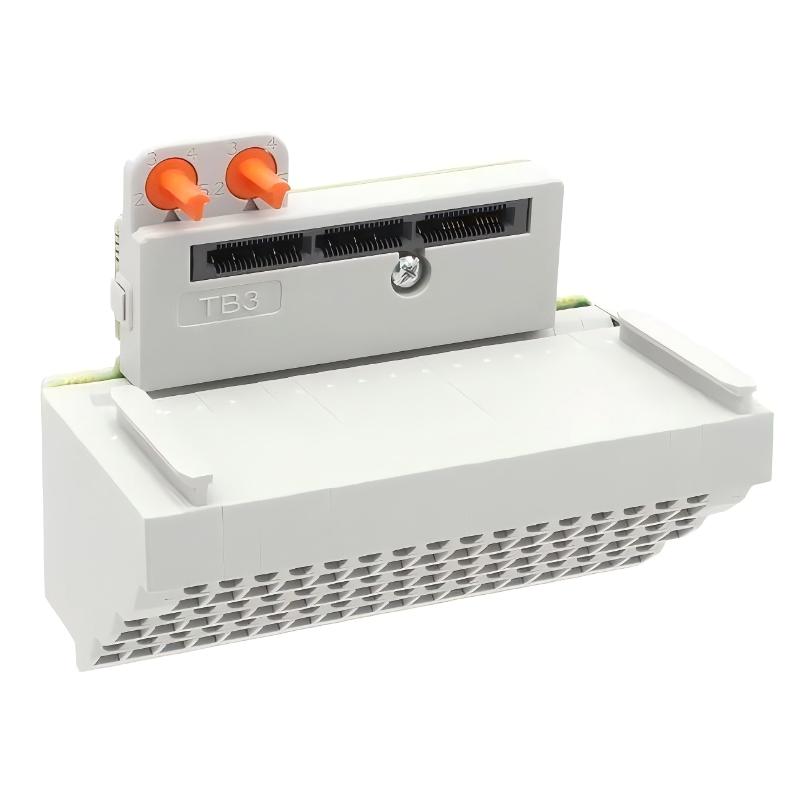

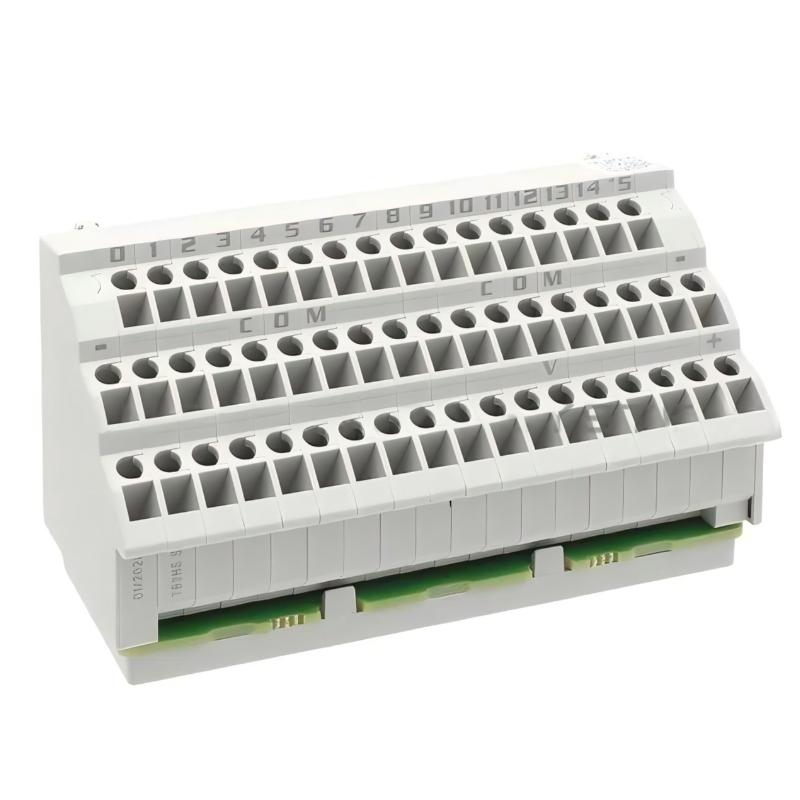

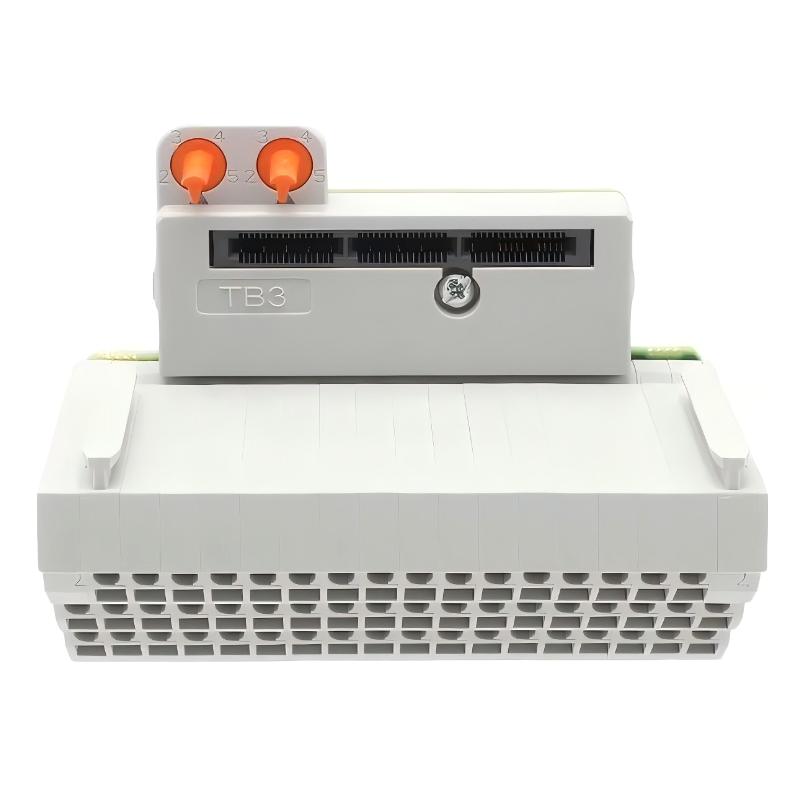

Allen Bradley 5094-RTB3 Flex 5000 Detachable Terminal Block
Allen Bradley 5094-RTB3 Flex 5000 Detachable Terminal Block
0.0
Points
Brand:Allen Bradley PLC Item No.:5094-RTB3 Product Origin:USA Product Dimensions:94 x 53 x 76 mm Product Weight:0.202 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The 5094-RTB3 Detachable Terminal Block is part of Rockwell Automation’s FLEX 5000 architecture, engineered to provide a robust and maintainable wiring interface for distributed I/O systems. It enables fast field wiring replacement while maintaining stable electrical connectivity in demanding industrial environments.
Built for reliability and serviceability, it supports maintenance efficiency and reduces downtime in modern automation systems where continuous operation is critical.
Technical Specifications
Parameter
Specification
Product Type
Detachable Terminal Block
Series
FLEX 5000
Connection Type
Screw-clamp terminal
Compatibility
FLEX 5000 I/O modules
Mounting System
Terminal base assembly integration
Installation Method
Tool-assisted snap-in/removal
Operating Environment
Industrial automation systems
Dimensions
94 × 53 × 76 mm
Weight
0.202 kg (0.45 lb)
Applications
The Allen-Bradley 5094-RTB3 Flex 5000 Detachable Terminal Block is designed as a critical wiring interface component within the FLEX 5000 distributed I/O system, enabling secure field wiring connection and fast module replacement without system redesign.
FLEX 5000 I/O system field wiring termination
Industrial control cabinet wiring distribution
PLC-based automation system maintenance and upgrades
High-density modular I/O assemblies
Manufacturing and process automation infrastructure
Retrofit and expansion of existing Rockwell automation systems
Advantages
Tool-assisted removable design for fast maintenance and replacement
Stable and secure screw-clamp wiring structure
Designed specifically for FLEX 5000 modular architecture compatibility
Reduces downtime during I/O module servicing
High reliability under vibration and industrial shock conditions
Simplifies panel wiring organization and troubleshooting
Supports scalable distributed control system layouts
Strong mechanical durability for repeated insertion cycles
Technical FAQs (10 Technical Questions)
Q1: What is the main function of the 5094-RTB3?
It provides a detachable electrical termination interface between field wiring and FLEX 5000 I/O modules.
Q2: Is it a standalone module?
No, it must be used with compatible FLEX 5000 I/O modules and mounting bases.
Q3: What wiring method does it use?
It uses screw-clamp terminal connections for secure wiring.
Q4: Can it be reused after removal?
Yes, it is designed for repeated installation and removal cycles.
Q5: Does it affect signal processing?
No, it only serves as a physical termination interface.
Q6: Is it compatible with all FLEX 5000 modules?
It is compatible only with designated FLEX 5000 terminal base assemblies.
Q7: Can it be replaced without rewiring the entire system?
Yes, that is one of its primary maintenance advantages.
Q8: Does it support high-current field wiring?
Yes, within the limits defined by the associated I/O module and base design.
Q9: Is special tooling required for installation?
Only standard industrial screwdrivers are required.
Q10: What is its role in system diagnostics?
It has no electronic diagnostics; diagnostics are handled by the I/O module itself.
