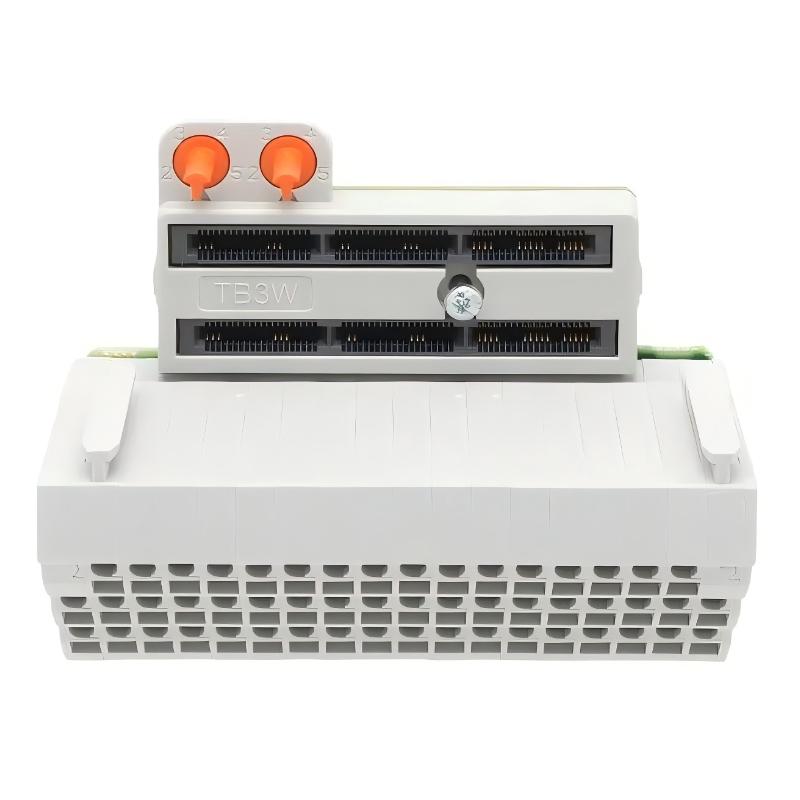

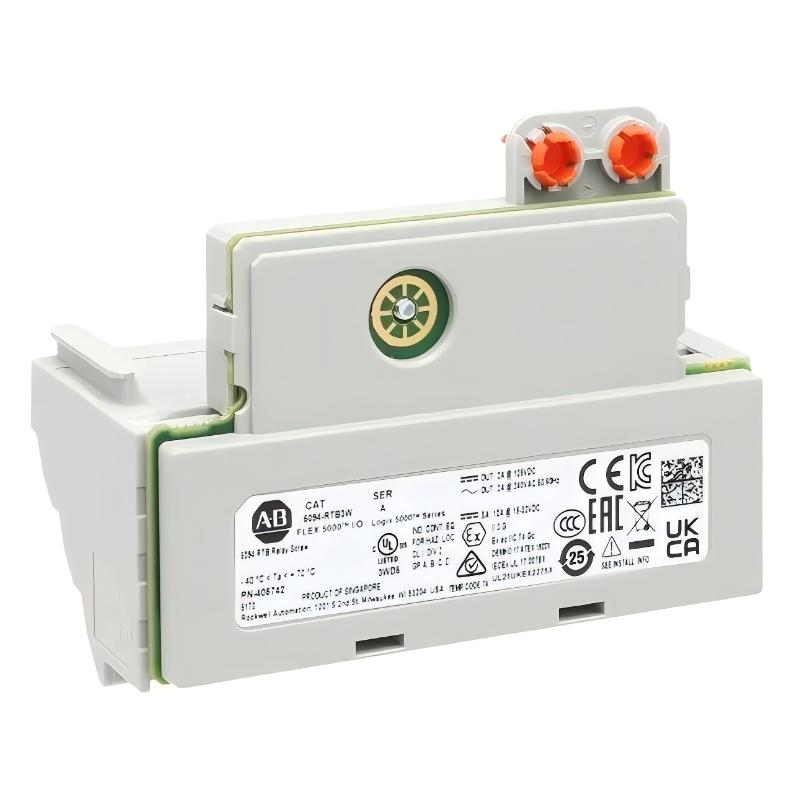

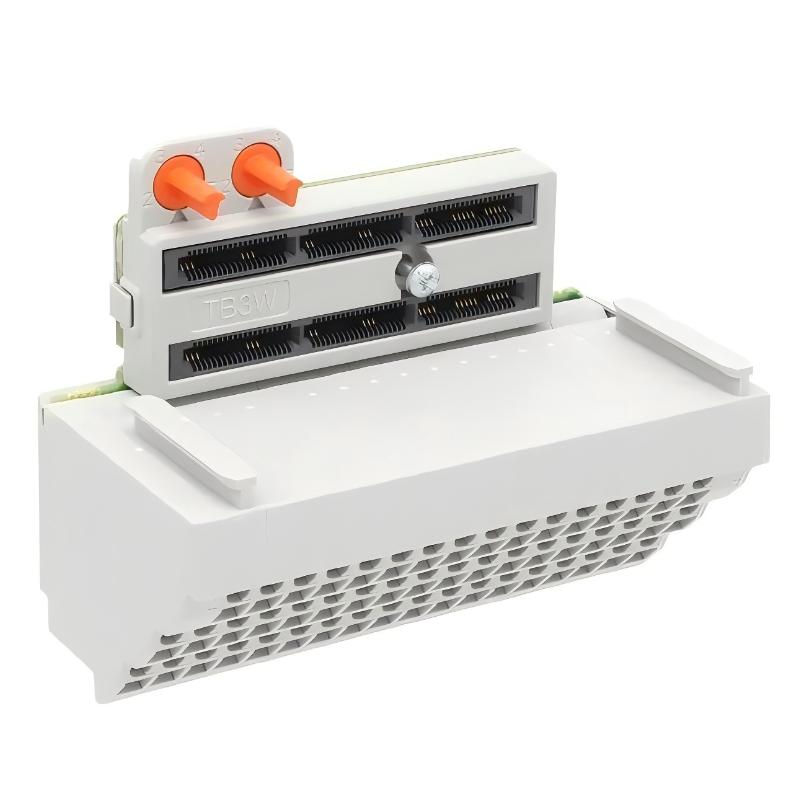

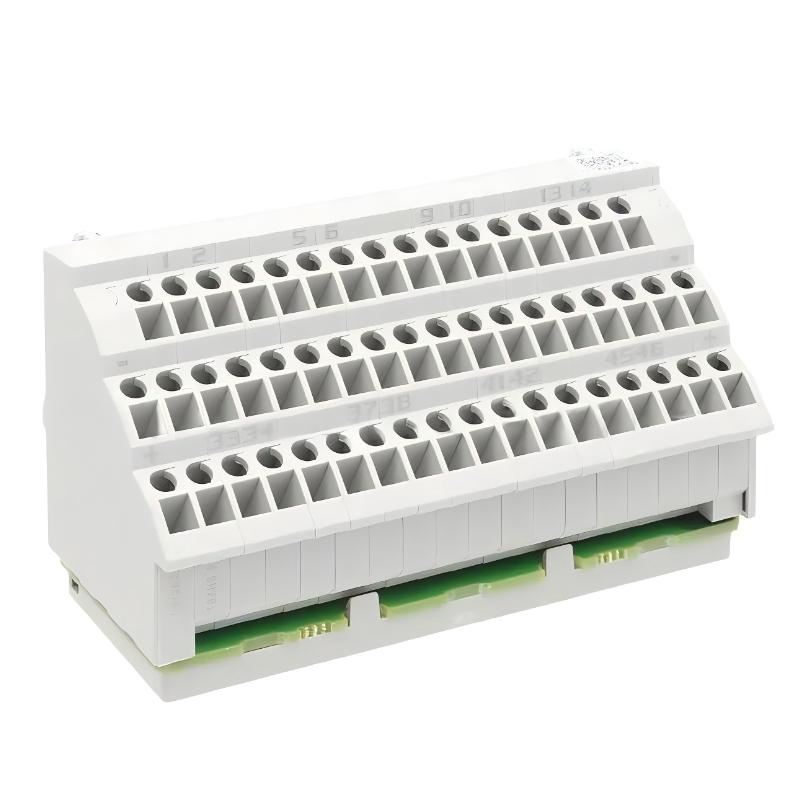

Allen Bradley 5094-RTB3W Flex 5000 Relay With Detachable Terminal Blocks

Applications

The Allen-Bradley 5094-RTB3W Flex 5000 Relay With Detachable Terminal Blocks is designed for industrial automation systems requiring reliable relay-based switching with flexible field wiring and fast maintenance capability.

• Industrial relay output switching in control panels
• FLEX 5000 distributed I/O relay interface applications
• Machine automation requiring electrical isolation and load switching
• Conveyor, motor control, and actuator relay signaling
• Process automation systems with mixed signal control
• Retrofit and expansion of existing Rockwell FLEX 5000 architectures
• High-reliability switching in harsh industrial environments

Advantages

• Integrated relay switching capability for electrical isolation
• Detachable terminal block design for fast maintenance and replacement
• Compatible with FLEX 5000 modular I/O architecture
• Reduces downtime during wiring or module servicing
• Robust mechanical structure suitable for industrial vibration environments
• Simplifies panel wiring organization and troubleshooting
• Supports scalable distributed automation systems
• Designed for long service life in continuous operation environments

Technical FAQs (10 Technical Questions)

Q1: What is the main function of the 5094-RTB3W?
It provides relay-based switching with detachable terminal block connectivity for FLEX 5000 systems.

Q2: Is this a standalone relay device?
No, it is part of the FLEX 5000 terminal base assembly system.

Q3: What type of loads can it control?
It can control industrial relay loads within rated electrical limits defined by system design.

Q4: Does it support hot-swapping?
Yes, it supports Removal and Insertion Under Power (RIUP) in compatible configurations.

Q5: What wiring method is used?
It uses screw-clamp terminal connections for secure field wiring.

Q6: Is it compatible with all FLEX 5000 modules?
It is compatible only with designated FLEX 5000 relay/terminal base configurations.

Q7: Does it require configuration in software?
No direct configuration is required; it operates as part of the I/O hardware structure.

Q8: Can it reduce system downtime?
Yes, detachable design allows fast replacement without full rewiring.

Q9: Is it suitable for harsh environments?
Yes, it is designed for industrial-grade vibration and temperature conditions.

Q10: Does it include diagnostics?
No, diagnostics are handled at the I/O module level, not the terminal block.
