Brand:Allen Bradley PLC Item No.:MPM-A1304F-SJ72AA Product Origin:USA Product Dimensions:Frame Size: 130 mm Product Weight:9.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

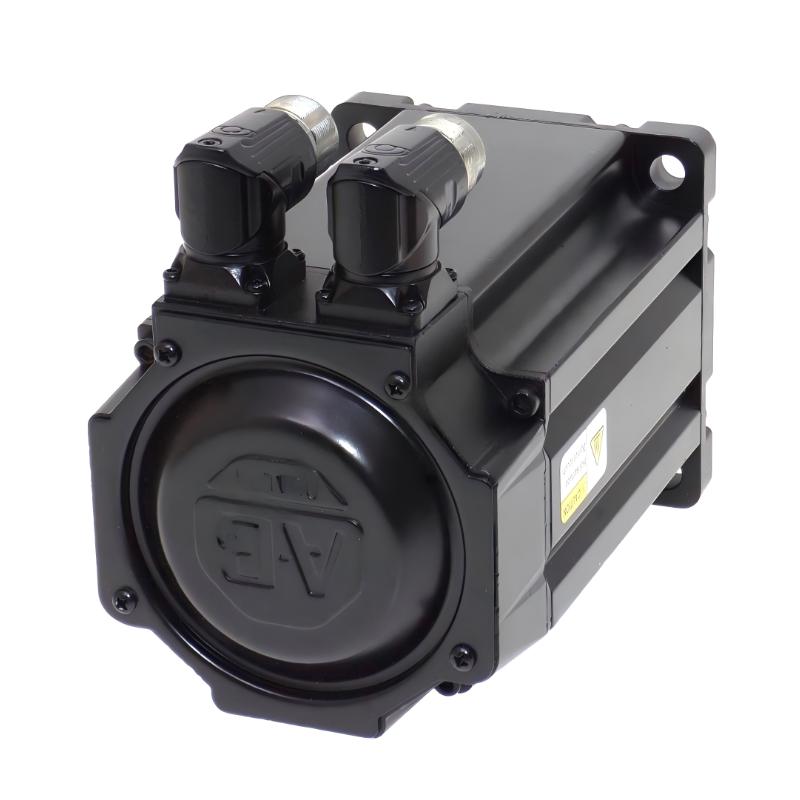

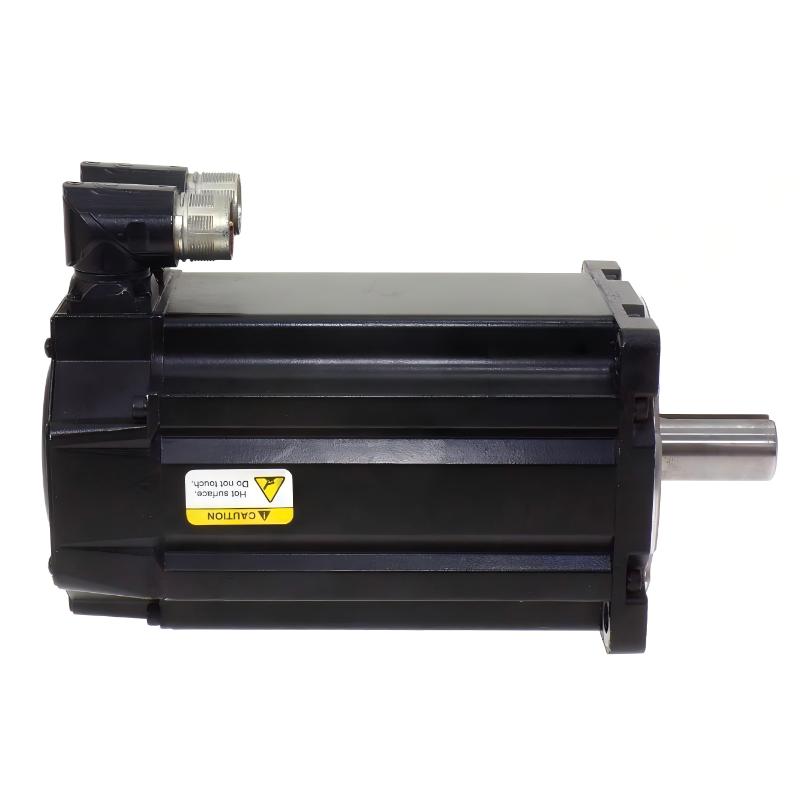

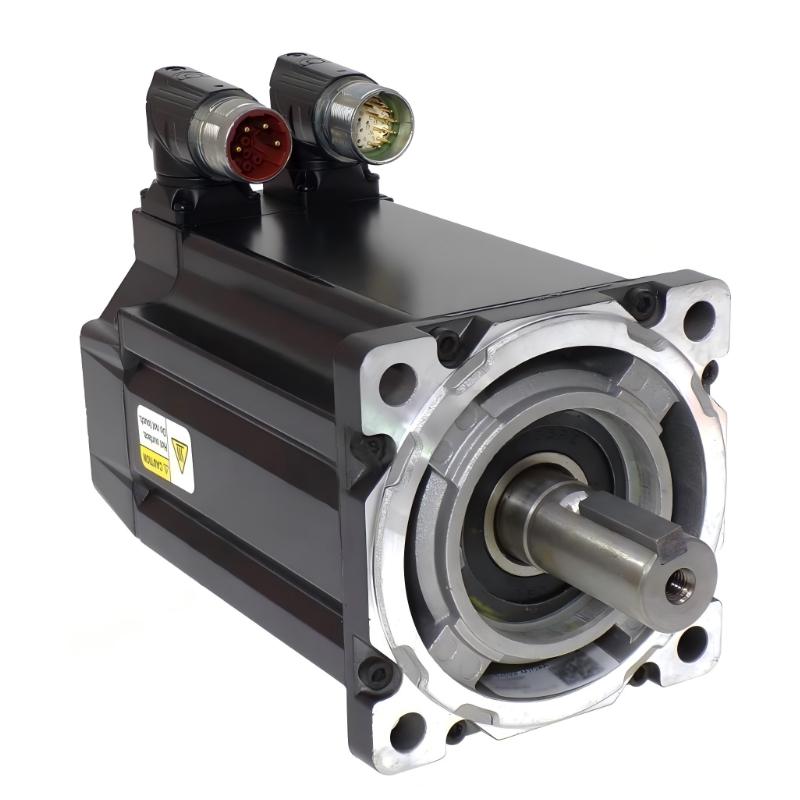

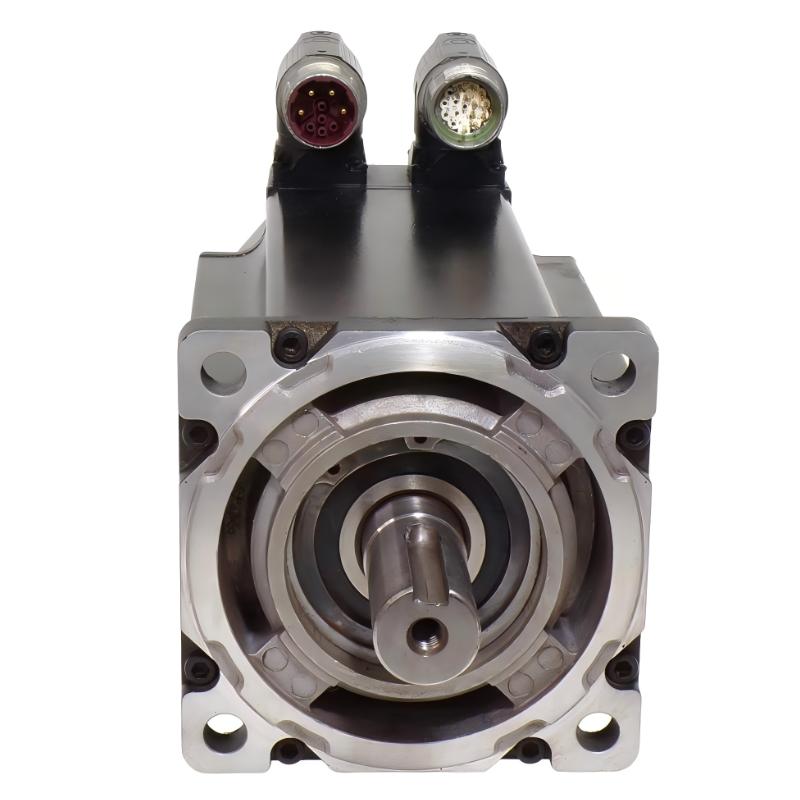

The MPM-A1304F-SJ72AA Servo Motor from Allen-Bradley’s MP-Series is engineered for precision motion applications requiring high torque stability, responsive acceleration, and accurate feedback control. With a 130 mm frame size and optimized electromagnetic design, it delivers a strong balance between dynamic performance and mechanical robustness.
It is widely adopted in advanced automation systems where motion precision, repeatability, and system reliability are critical performance indicators.
Technical Specifications
Parameter
Specification
Product Type
AC Servo Motor
Series
MP-Series MPM
Frame Size
130 mm
Rated Speed
3000 RPM
Rated Torque
9.3 Nm
Rated Voltage
230 V AC
Feedback Type
High-resolution absolute encoder
Motor Type
Medium inertia rotary servo motor
Enclosure Rating
IP67 (with sealed configuration)
Operating Temperature
0°C to 40°C
Dimensions
130 mm frame class (approx. IEC standard)
Weight
9.6 kg (21.16 lb)
Applications
The Allen-Bradley MPM-A1304F-SJ72AA Servo Motor is a medium-inertia rotary servo motor designed for high-precision motion control in demanding industrial automation environments where stable torque response and accurate positioning are critical.
High-performance motion control systems
CNC and precision machining equipment
Packaging and labeling machinery
Robotics and multi-axis automation systems
Conveyor synchronization and positioning systems
Semiconductor and electronics manufacturing equipment
Industrial servo-driven assembly lines
Advantages
High dynamic response with medium inertia rotor design
Precise closed-loop motion control capability
130 mm frame optimized for industrial torque density
Robust construction for continuous-duty operation
High-resolution encoder feedback for accurate positioning
Industrial-grade sealing for harsh environments
Compatible with Rockwell Kinetix motion systems
Stable performance under high-speed cycling conditions
Technical FAQs (10 Technical Questions)
Q1: What type of motor is the MPM-A1304F-SJ72AA?
It is a 3-phase AC permanent magnet medium-inertia servo motor.
Q2: What drive systems is it compatible with?
It is designed for use with Allen-Bradley Kinetix servo drive platforms.
Q3: Does it support closed-loop control?
Yes, it uses high-resolution encoder feedback for closed-loop operation.
Q4: Is it suitable for continuous operation?
Yes, it is rated for continuous industrial duty cycles (S1).
Q5: What type of feedback system does it use?
It typically uses a single-turn high-resolution absolute encoder system.
Q6: Can it be used in high-speed applications?
Yes, it is rated for high-speed operation up to approximately 3000 RPM.
Q7: Is it suitable for harsh industrial environments?
Yes, it is designed with industrial sealing and protection for demanding conditions.
Q8: Does it require a specific drive brand?
Yes, it is optimized for Allen-Bradley/Rockwell Automation servo drives.
Q9: What type of applications require this motor?
Precision automation, robotics, and synchronized motion systems.
Q10: Can it be used in multi-axis systems?
Yes, it is commonly used in coordinated multi-axis motion control architectures.
