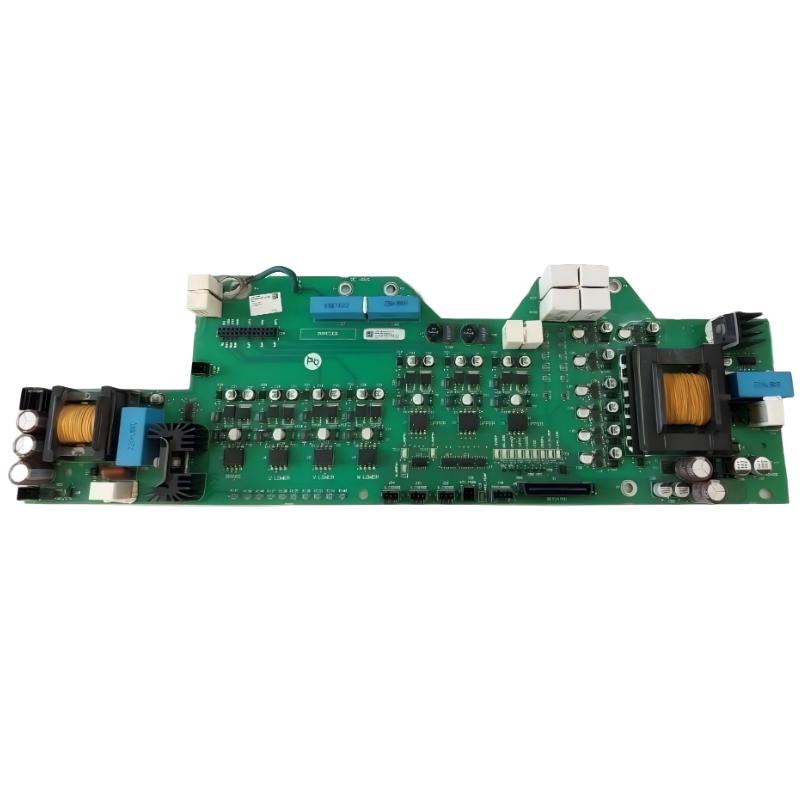

Allen Bradley SK-R9-PINT1-FF6K PowerFlex 750 Power Connector
Allen Bradley SK-R9-PINT1-FF6K PowerFlex 750 Power Connector
0.0
Points
Brand:Allen Bradley PLC Item No.:SK-R9-PINT1-FF6K Product Origin:USA Product Dimensions:190 x 20 x 100 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The SK-R9-PINT1-FF6K Power Connector is an essential internal component of the PowerFlex 750 Frame 6 drive system, responsible for maintaining secure and stable electrical connectivity between internal power sections. It plays a key role in ensuring consistent energy transfer and reliable system startup behavior in high-power industrial environments.
Engineered for durability and long-term operation, it supports demanding automation applications where uninterrupted drive performance is critical.
Technical Specifications
Parameter
Specification
Product Type
Power Interface Connector
Series
PowerFlex 750
Frame Size
Frame 6
Voltage Class
Up to 690V drive architecture
Function
Internal power connection interface
Installation Type
Internal drive assembly component
Compatibility
Allen-Bradley PowerFlex 750 drives
Operating Environment
Industrial drive systems
Dimensions
190 × 20 × 100 mm
Weight
0.5 kg (1.10 lb)
Applications
The Allen-Bradley SK-R9-PINT1-FF6K PowerFlex 750 Power Connector is designed as a high-reliability internal power interface component for PowerFlex 750 Series Frame 6 drives, enabling secure electrical connection between power stages and internal drive assemblies in high-voltage industrial systems.
PowerFlex 750 Frame 6 drive power interfacing
Industrial motor control centers (MCC)
High-power AC drive cabinet assembly
Heavy-duty pump, fan, and compressor systems
Process automation and energy-intensive production lines
Retrofit replacement for Rockwell drive power interface systems
Industrial systems requiring stable internal power distribution
Advantages
Ensures stable internal power connection within drive architecture
Designed specifically for PowerFlex 750 Frame 6 systems
High mechanical and electrical reliability under industrial stress
Reduces risk of connection failure in high-power environments
Supports long-term operational stability in continuous-duty systems
Modular design enables fast replacement and servicing
Optimized for vibration and thermal cycling resistance
Improves overall drive system integrity and uptime
Technical FAQs (10 Technical Questions)
Q1: What is the function of the SK-R9-PINT1-FF6K?
It serves as a power interface connector inside PowerFlex 750 Frame 6 drives.
Q2: Is this a standalone external connector?
No, it is an internal drive component.
Q3: What happens if this connector fails?
The drive may experience power distribution failure or startup faults.
Q4: Is it compatible with other frame sizes?
No, it is specifically designed for Frame 6 PowerFlex 750 systems.
Q5: Can it be replaced in the field?
Yes, it is designed as a serviceable internal replacement part.
Q6: Does it require software configuration?
No, it is a hardware-only electrical interface component.
Q7: What voltage class does it support?
It is used in high-voltage PowerFlex 750 systems (typically 690V class architecture).
Q8: Does it control motor operation?
No, it does not control motor logic; it only provides internal power connection.
Q9: Is special calibration required after installation?
No calibration is required after replacement.
Q10: Can it be used outside Rockwell systems?
No, it is exclusive to Allen-Bradley PowerFlex 750 drive platforms.
