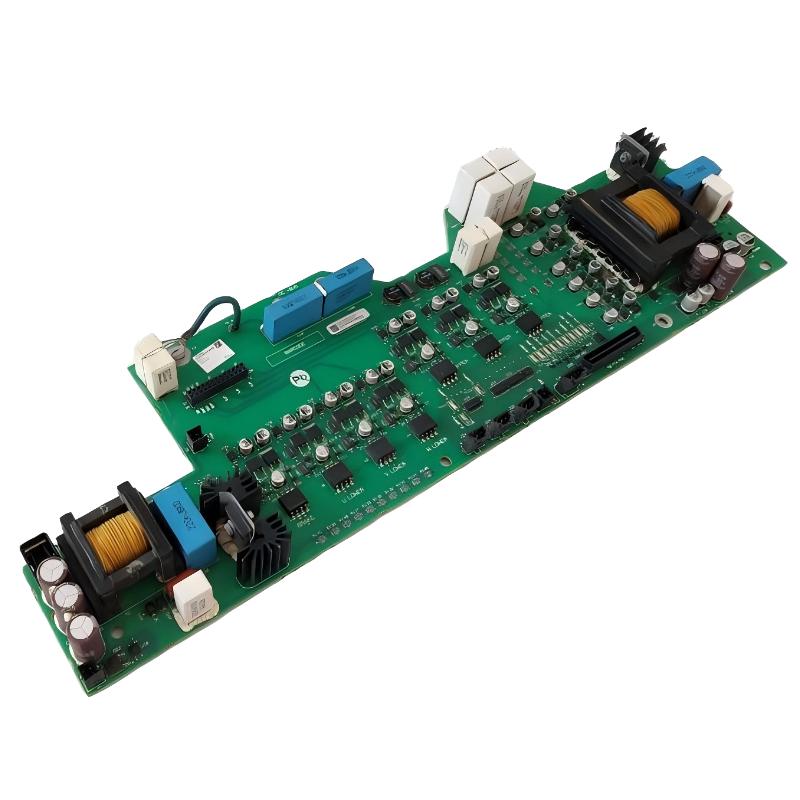

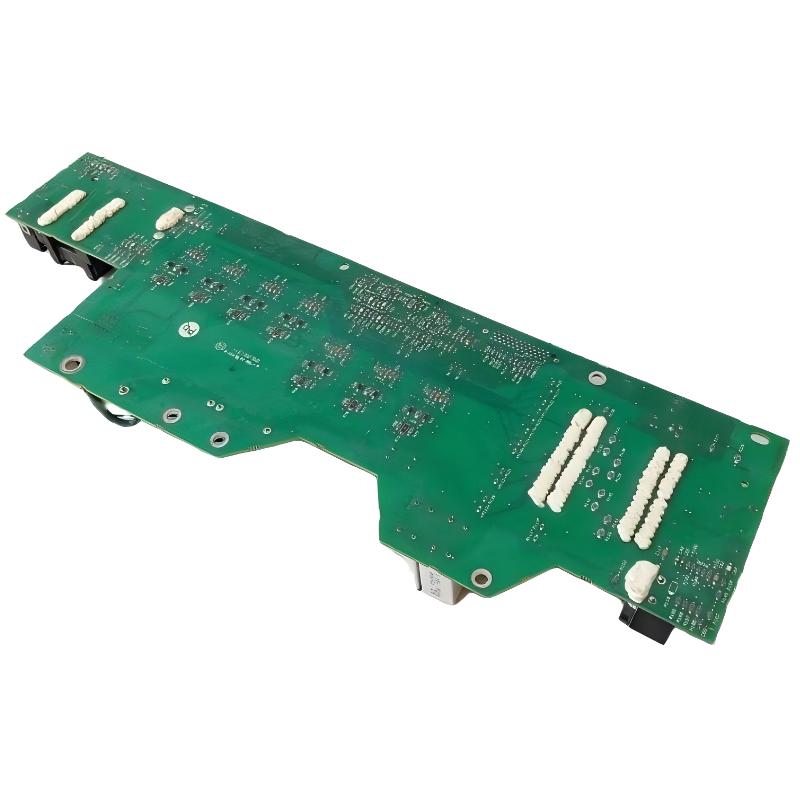

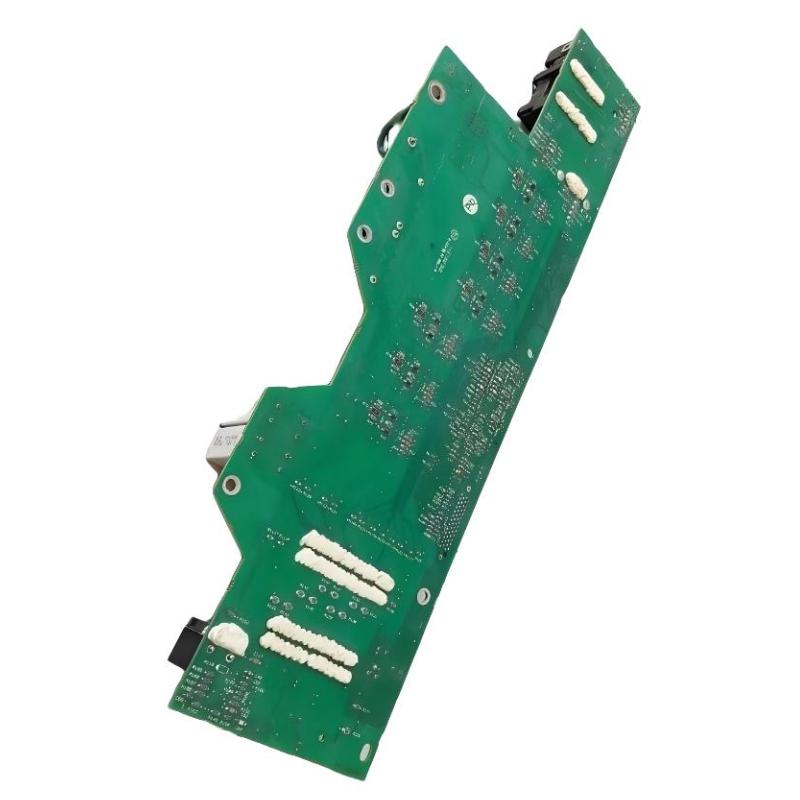

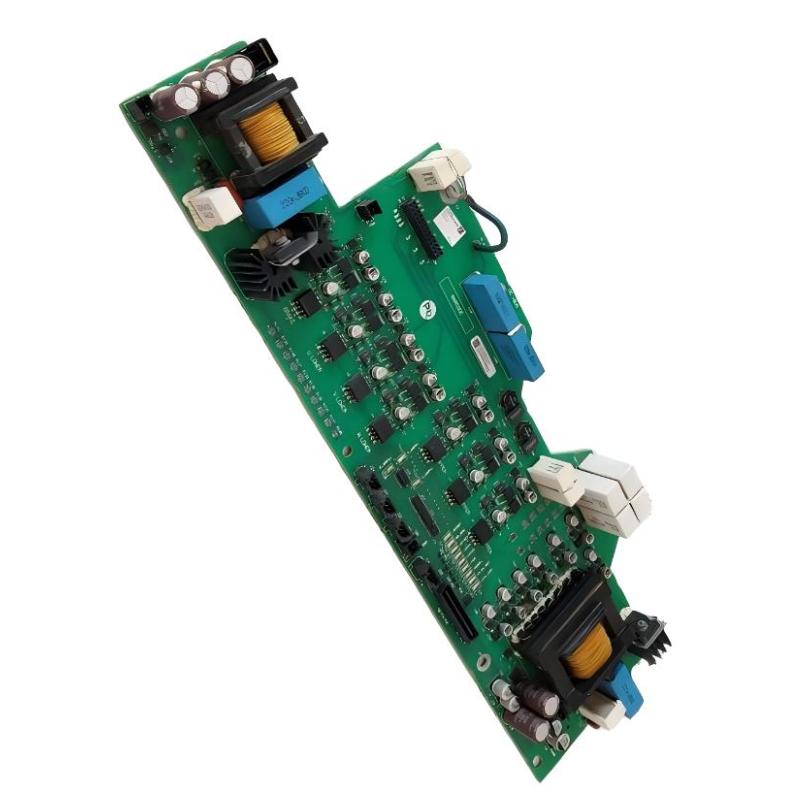

Allen Bradley SK-R9-PINT1-FF6L PowerFlex 750 Power Connector
Allen Bradley SK-R9-PINT1-FF6L PowerFlex 750 Power Connector
0.0
Points
Brand:Allen Bradley PLC Item No.:SK-R9-PINT1-FF6L Product Origin:USA Product Dimensions:190 x 20 x 100 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The SK-R9-PINT1-FF6L Power Connector is part of the PowerFlex 750 Frame 6 drive architecture, engineered to maintain secure and stable internal power connectivity between critical drive sections. It ensures reliable energy transfer under high-load industrial conditions while maintaining system stability and operational safety.
Designed for continuous-duty applications, it supports industries requiring high uptime, precision motor control, and robust electrical infrastructure performance.
Technical Specifications
Parameter
Specification
Product Type
Power Interface Connector
Series
PowerFlex 750
Frame Size
Frame 6
Voltage Class
690V AC drive architecture
Function
Internal power connection interface
Installation Type
Internal drive assembly component
Compatibility
Allen-Bradley PowerFlex 750 drives
Operating Environment
Industrial automation systems
Dimensions
190 × 20 × 100 mm
Weight
0.5 kg (1.10 lb)
Applications
The Allen-Bradley SK-R9-PINT1-FF6L PowerFlex 750 Power Connector is a high-reliability internal interface component used in PowerFlex 750 Series Frame 6 drive systems, designed to ensure stable power transmission between internal drive modules and power stages in industrial automation environments.
PowerFlex 750 Frame 6 drive power interface systems
Industrial motor control centers (MCCs)
High-voltage AC drive cabinet assemblies
Heavy-duty pumping, fan, and compressor control systems
Process automation and continuous production lines
Retrofit and replacement of internal PowerFlex power interface components
High-demand industrial energy conversion systems
Advantages
Ensures stable internal electrical connection within drive architecture
Designed specifically for PowerFlex 750 Frame 6 (690V class systems)
High mechanical stability under vibration and thermal stress
Improves system reliability during power cycling and load changes
Modular replacement design for reduced downtime
Enhances long-term drive system integrity
Precision-engineered connector alignment for secure engagement
Supports harsh industrial operating environments
Technical FAQs (10 Technical Questions)
Q1: What is the function of the SK-R9-PINT1-FF6L?
It provides internal power connection between power stages in PowerFlex 750 Frame 6 drives.
Q2: Is it an external connector?
No, it is an internal drive power interface component.
Q3: What happens if this connector is not properly seated?
It can cause drive faults, power loss, or component damage during operation.
Q4: Is it compatible with all PowerFlex 750 frames?
No, it is specifically designed for Frame 6 architectures.
Q5: Can it be replaced in the field?
Yes, it is a serviceable internal replacement part.
Q6: Does it require configuration after installation?
No software configuration is required; it is a hardware interface component.
Q7: What voltage class is it used in?
It is used in 690V-class PowerFlex 750 drive systems.
Q8: Does it control motor operation directly?
No, it only supports internal power distribution within the drive.
Q9: Is calibration required after replacement?
No calibration is required after installation.
Q10: Can it be used outside Rockwell systems?
No, it is exclusive to Allen-Bradley PowerFlex 750 platforms.
