Brand:Bently Nevada PLC Item No.:24583-04 Product Origin:USA Product Dimensions:Diameter: 55 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

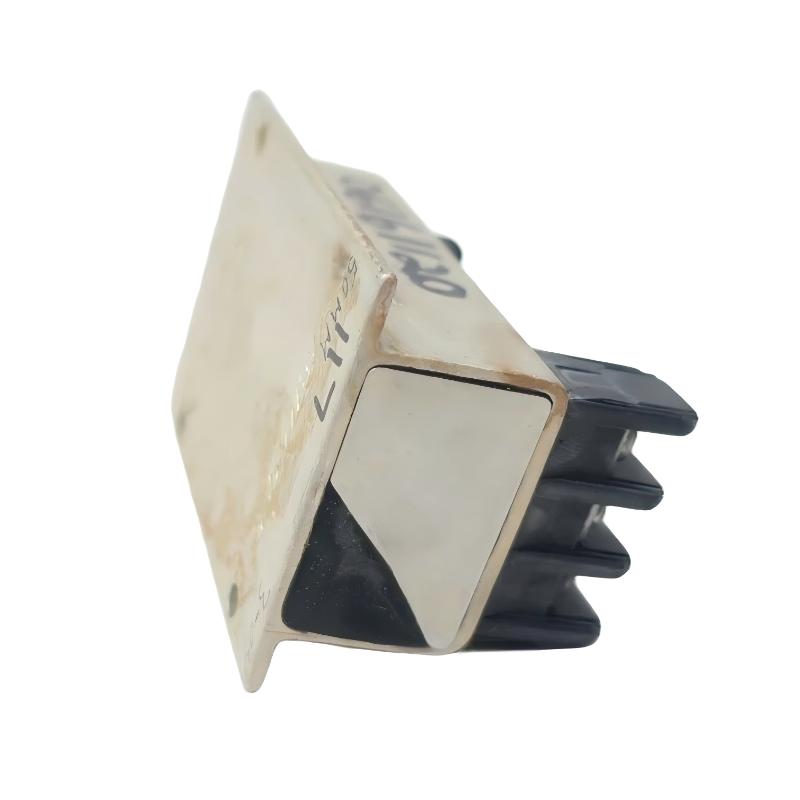

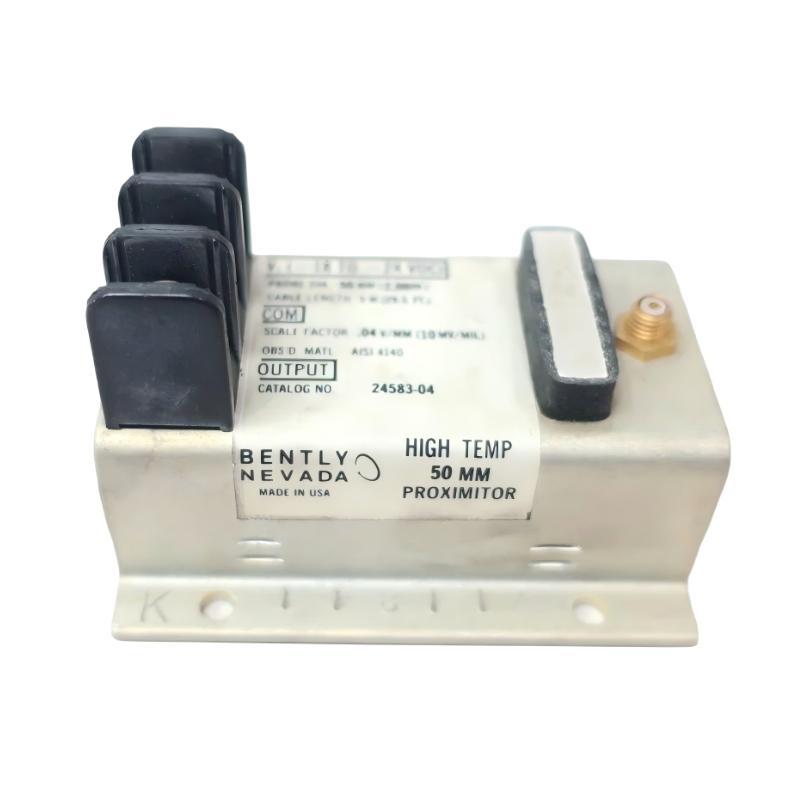

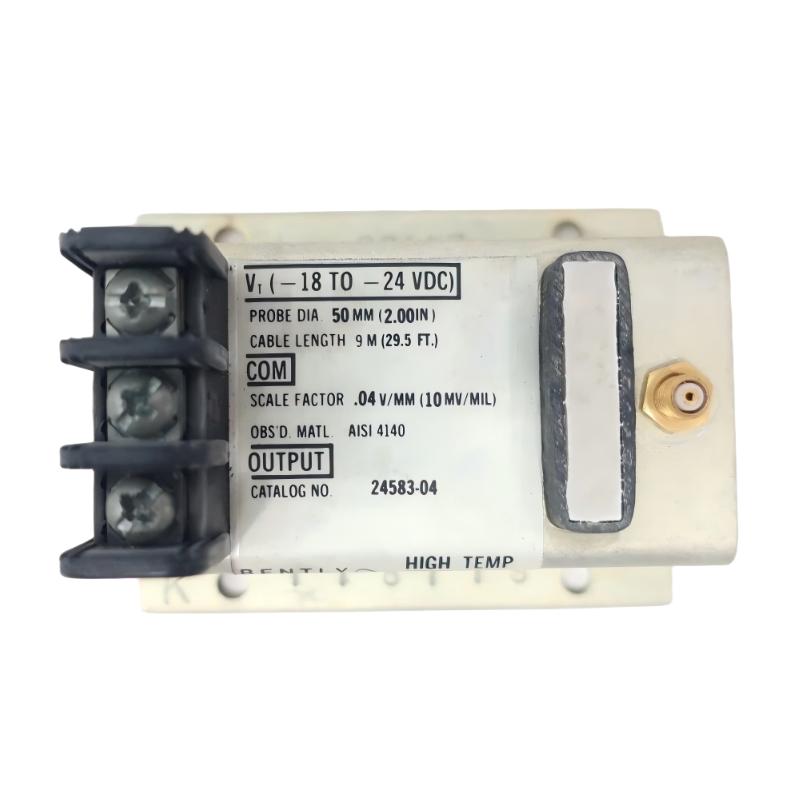

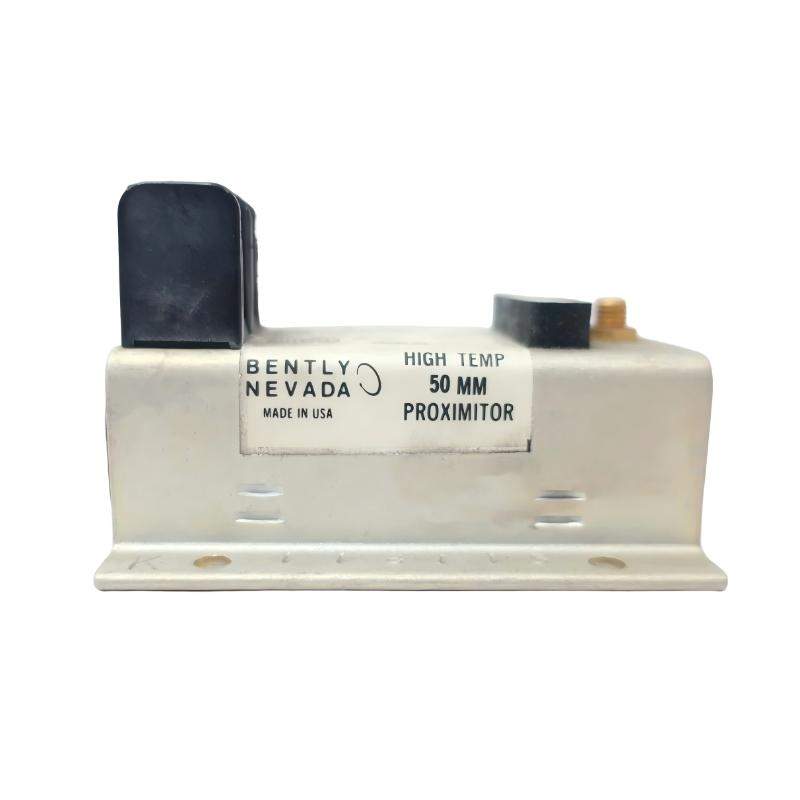

The 24583-04 proximity sensor is part of an industrial condition monitoring ecosystem widely used for protecting high-value rotating machinery. It plays a critical role in detecting early-stage mechanical issues by continuously measuring shaft movement and vibration behavior.
Technical Specifications
Parameter
Specification
Model
24583-04
Sensor Type
Proximity / Eddy current displacement sensor
Measurement Principle
Non-contact eddy current
Probe Diameter
~55 mm
Output Signal
Analog voltage proportional to displacement
Supply Voltage
-18 to -24 V DC (system dependent)
Linear Range
~2.0 mm typical
Detection Range
Up to ~50 mm (application dependent)
Operating Temperature
Up to ~150°C (variant dependent)
Material
Industrial-grade metal alloy
Weight
0.2 kg
Application
Turbomachinery vibration and position monitoring
Recommended Related Models
Model
Product Name
330780-51-00
Bently Nevada Proximity Probe System
330730-040-00
Bently Nevada Extension Cable
330850-90-00
Bently Nevada Proximitor Sensor Module
330500-02-00
Bently Nevada Standard Vibration Probe
Popular Related Models
Model
Product Name
330780-90-00
Bently Nevada Standard Proximity Probe
330103-00-12-10-02-00
Bently Nevada Proximity Probe System
330881-28-04-145-03-02
Bently Nevada PROXPAC XL System
330980-50-00
Bently Nevada XL NSv Proximity Sensor
Applications
• Turbine shaft vibration and axial displacement monitoring in power generation systems.
• Compressor and pump condition monitoring in oil & gas processing facilities.
• Industrial rotating machinery protection for detecting imbalance and misalignment faults.
• High-temperature equipment monitoring in refineries and petrochemical plants.
• Predictive maintenance systems for continuous asset health evaluation and early failure detection.
• Critical machinery shutdown and alarm systems integrated with plant control architecture.
Key Advantages
• High-precision non-contact sensing enables accurate detection of micro-level shaft movement.
• Eddy current-based measurement principle ensures zero mechanical wear and long service life.
• Stable analog output signal supports reliable integration with monitoring and control systems.
• Designed for harsh industrial environments with resistance to vibration, oil, and contamination.
• Strong long-term stability minimizes signal drift in continuous 24/7 operation.
• Suitable for high-temperature applications where conventional sensors may fail.
Technical FAQs
Q1: What is the main function of the 24583-04 sensor?
It is used to measure shaft displacement and vibration in rotating machinery.
Q2: Does it require contact with the shaft?
No, it uses a non-contact eddy current sensing principle.
Q3: What type of equipment is it used on?
It is typically used on turbines, compressors, pumps, and large industrial rotating machines.
Q4: What signal does it output?
It outputs an analog voltage proportional to displacement or vibration.
Q5: Can it be used for continuous monitoring?
Yes, it is designed for continuous 24/7 condition monitoring applications.
Q6: Is it suitable for harsh environments?
Yes, it is built for high vibration, high temperature, and contaminated environments.
Q7: Does it require external power?
Yes, it typically operates with a dedicated monitoring/proximitor system.
Q8: What is its role in protection systems?
It provides real-time data used for alarms, shutdowns, and machine protection logic.
Q9: Does it require frequent calibration?
No, it is designed for long-term stability with minimal recalibration needs.
Q10: What industries commonly use it?
Power generation, oil & gas, petrochemical, and heavy industry sectors.
