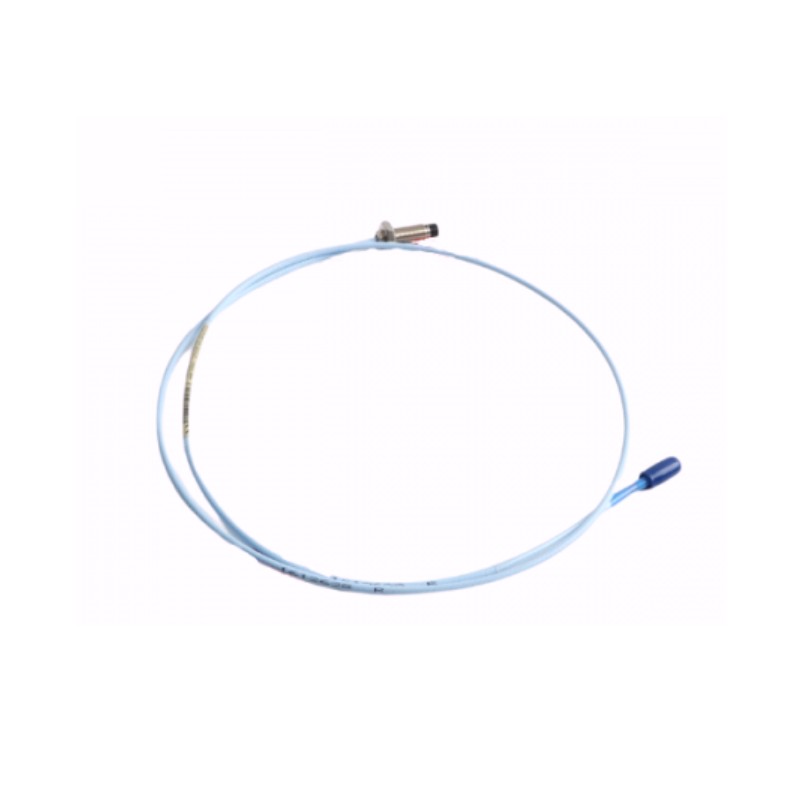

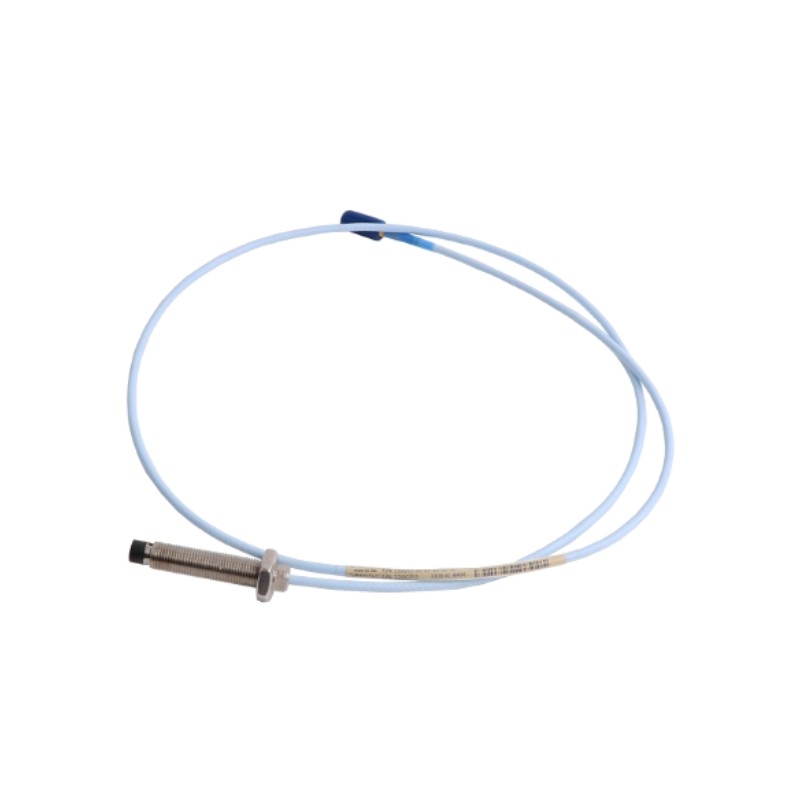

The Bently Nevada 330104-00-05-90-02 Proximity Probe Module is a high-performance non-contact eddy-current sensor designed for accurate shaft vibration, position, and displacement measurement in mission-critical rotating machinery. As a member of the renowned 3300 XL 8 mm Proximity Transducer System, this probe delivers outstanding reliability, excellent signal stability, and long-term measurement accuracy for industrial asset protection programs.
This configuration features a 50 mm case length (Option 05), a 9.0-meter total system length (Option 90), and a Miniature Coaxial ClickLoc connector with standard cable (Option 02). The extended cable length makes it ideal for large-scale machinery installations where monitoring cabinets are located far from the machine train. The model is commonly deployed in turbines, compressors, generators, pumps, and other high-value rotating assets where continuous condition monitoring is essential.
Built to support predictive maintenance strategies, the probe provides accurate machinery condition data that helps maintenance teams identify imbalance, misalignment, bearing wear, shaft rub, and other developing mechanical issues before they result in costly downtime.
Technical Profile
General Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-05-90-02 |
| Product Series | 3300 XL 8 mm |
| Product Type | Proximity Probe Module |
| Measurement Technology | Eddy Current, Non-Contact |
| Probe Thread | M10 × 1 Metric |
| Probe Diameter | 8 mm |
| Installation Method | Threaded Fixed Mounting |
| Primary Function | Shaft Vibration and Position Monitoring |
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Output Type | Linear Voltage Signal |
| Typical Sensitivity | 200 mV/mil (7.87 V/mm) |
| Frequency Response | Up to 10 kHz |
| Measurement Capability | Static and Dynamic Values |
| Signal Stability | Excellent Long-Term Stability |
| EMI Immunity | Industrial Grade |
| System Compatibility | 3300 XL Proximitor Systems |
| Monitoring Compatibility | 3500 Series Monitoring Systems |
The probe is engineered to provide highly repeatable measurements across a wide operating range, making it suitable for machinery protection and advanced vibration analysis applications.
Mechanical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Unthreaded Length | 0 mm |
| Case Length | 50 mm |
| Total System Length | 9.0 meters (29.5 ft) |
| Probe Diameter | 8 mm |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Industrial Cable |
| Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Approximate Net Weight | 0.55 kg |
| Approximate Shipping Weight | 2.0 kg |
The 9-meter configuration is specifically designed for applications requiring extended routing distances between the probe location and monitoring hardware.
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -52°C to +177°C |
| Probe Tip Temperature | Up to +218°C |
| Cable Temperature Rating | Up to +260°C |
| Humidity Resistance | Up to 93% Non-Condensing |
| Shock Resistance | Industrial Duty |
| Vibration Resistance | Continuous Operation |
| Corrosion Protection | Stainless Steel Construction |
| Environmental Suitability | Harsh Industrial Environments |
Designed for long service life, the probe maintains stable performance even in challenging industrial conditions involving vibration, contamination, and temperature fluctuations.
