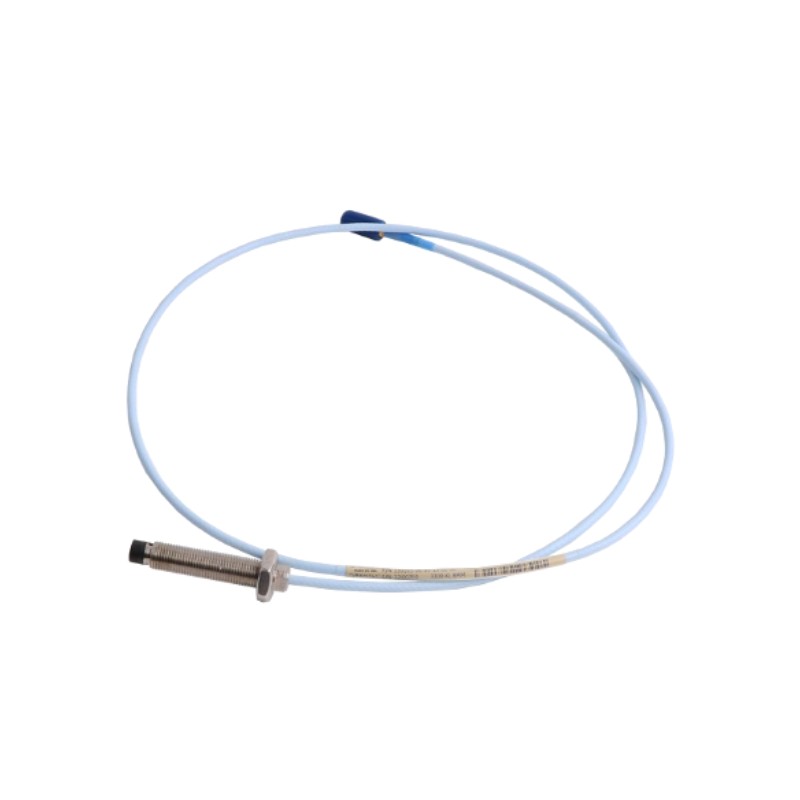

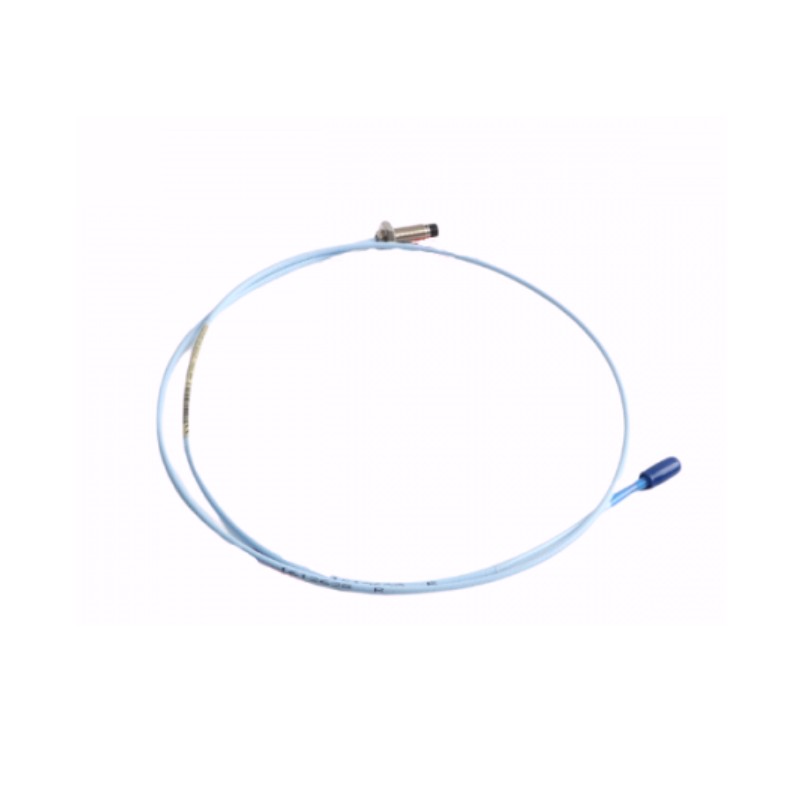

The Bently Nevada 330104-00-06-10-01-CN Proximity Probe Module is a high-performance non-contact eddy-current sensor developed for continuous monitoring of shaft vibration, axial position, and radial displacement in critical rotating equipment. As part of the industry-leading 3300 XL 8 mm Proximity Transducer System, this probe provides exceptional measurement accuracy, outstanding reliability, and long-term operational stability in demanding industrial environments.
This configuration features a 60 mm probe case length (Option 06), a 1.0-meter total system length (Option 10), and a standard miniature coaxial connector configuration (Option 01). The CN regional designation identifies a China-market version while maintaining the same core technical specifications and performance characteristics as the global model. The longer probe body enables installation flexibility in applications where deeper mounting depths or additional mechanical clearance are required.
Engineered for use in turbines, compressors, generators, pumps, and other critical rotating assets, this probe helps maintenance teams implement predictive maintenance strategies, reduce unplanned downtime, and improve overall equipment reliability.
Product Specifications
General Information
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-06-10-01-CN |
| Product Series | 3300 XL 8 mm |
| Product Type | Proximity Probe Module |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Installation Method | Fixed Threaded Mounting |
| Primary Function | Shaft Vibration and Position Monitoring |
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Output Signal | Linear Voltage Output |
| Sensitivity | 200 mV/mil (7.87 V/mm Typical) |
| Frequency Response | Up to 10 kHz |
| Measurement Capability | Static and Dynamic Measurements |
| Signal Stability | Excellent Long-Term Performance |
| EMI Immunity | High Industrial-Grade Protection |
| System Compatibility | 3300 XL Proximitor Sensors |
| Monitoring Platform Compatibility | Bently Nevada 3500 Series |
The sensor is designed to deliver highly repeatable measurements, ensuring accurate machinery diagnostics and dependable protection system performance throughout its service life.
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Probe Case Length | 60 mm |
| Unthreaded Length | 0 mm |
| Total System Length | 1.0 Meter (3.3 ft) |
| Connector Type | Standard Miniature Coaxial Connector |
| Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Approximate Net Weight | 0.38 kg |
| Estimated Shipping Weight | 1.6 kg |
The extended 60 mm case length is particularly advantageous for installations requiring additional mounting depth while maintaining reliable sensing performance.
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -52°C to +177°C |
| Maximum Probe Tip Temperature | +218°C |
| Cable Temperature Rating | Up to +260°C |
| Relative Humidity | Up to 93% Non-Condensing |
| Shock Resistance | Industrial Duty |
| Vibration Resistance | Continuous Heavy-Duty Operation |
| Corrosion Resistance | Excellent |
| Environmental Protection | Suitable for Harsh Industrial Environments |
The robust construction enables dependable operation in applications exposed to vibration, oil contamination, temperature variations, and continuous-duty service.
