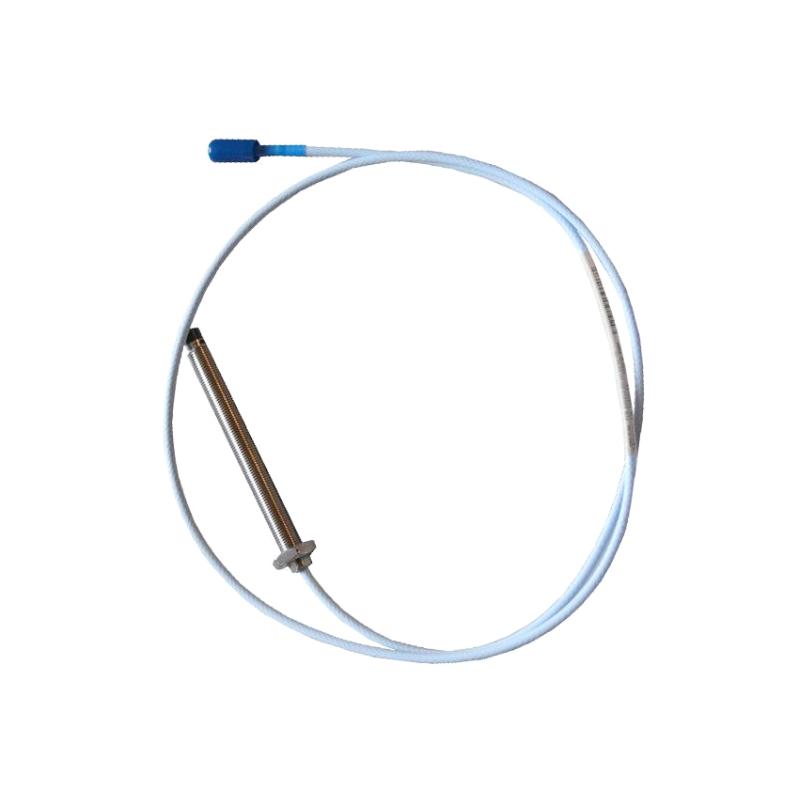

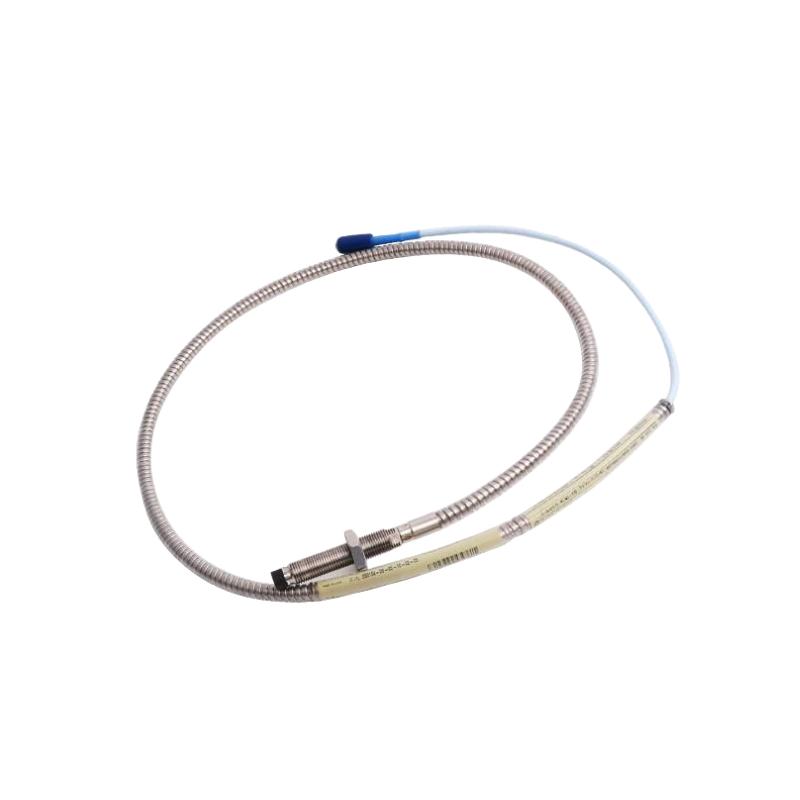

The Bently Nevada 330104-00-06-10-02-05 Proximity Probe Module is a premium non-contact eddy-current sensor engineered for accurate measurement of shaft vibration, radial displacement, and axial position in critical rotating machinery. As a member of the globally trusted 3300 XL 8 mm Proximity Transducer System, this model delivers exceptional signal integrity, long-term reliability, and superior performance in both standard and hazardous industrial environments.
Featuring a 60 mm probe case length (Option 06), a 1.0-meter total system length (Option 10), a standard connector configuration (Option 02), and a hazardous-area approval option (Option 05), this probe is designed for installations requiring compliance with stringent industrial safety standards. Its rugged construction and proven sensing technology make it an excellent choice for power generation facilities, refineries, offshore platforms, petrochemical plants, and other environments where equipment reliability is non-negotiable.
By continuously monitoring shaft movement without physical contact, the probe helps operators identify developing mechanical issues such as imbalance, misalignment, shaft rub, and bearing wear before they lead to costly equipment failures.
Product Specifications
General Information
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-06-10-02-05 |
| Product Series | 3300 XL 8 mm Proximity System |
| Product Type | Proximity Probe Module |
| Measurement Principle | Eddy Current, Non-Contact |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Mounting Method | Threaded Fixed Installation |
| Primary Function | Shaft Vibration and Position Monitoring |
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Output Signal | Linear Voltage Output |
| Typical Sensitivity | 200 mV/mil (7.87 V/mm) |
| Frequency Response | Up to 10 kHz |
| Measurement Capability | Static and Dynamic Monitoring |
| Signal Linearity | High Precision |
| EMI Resistance | Industrial Grade |
| System Compatibility | Bently Nevada 3300 XL Systems |
| Monitoring Compatibility | Bently Nevada 3500 Series |
The probe is designed to provide highly repeatable measurements with outstanding long-term stability, ensuring dependable machinery protection and condition monitoring.
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Probe Case Length | 60 mm |
| Unthreaded Length | 0 mm |
| Total System Length | 1.0 Meter (3.3 ft) |
| Connector Configuration | Standard Industrial Connector |
| Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Approximate Net Weight | 0.39 kg |
| Estimated Shipping Weight | 1.7 kg |
The longer 60 mm probe body allows installation in applications requiring deeper mounting locations while maintaining accurate sensing performance.
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -52°C to +177°C |
| Maximum Probe Tip Temperature | +218°C |
| Cable Temperature Rating | Up to +260°C |
| Relative Humidity | Up to 93% Non-Condensing |
| Shock Resistance | Industrial Duty |
| Vibration Resistance | Continuous Heavy-Duty Service |
| Corrosion Resistance | Excellent |
| Hazardous Area Approval | Option 05 Certified Configuration |
The hazardous-area configuration makes this probe suitable for deployment in locations where safety compliance and operational reliability are equally important.
