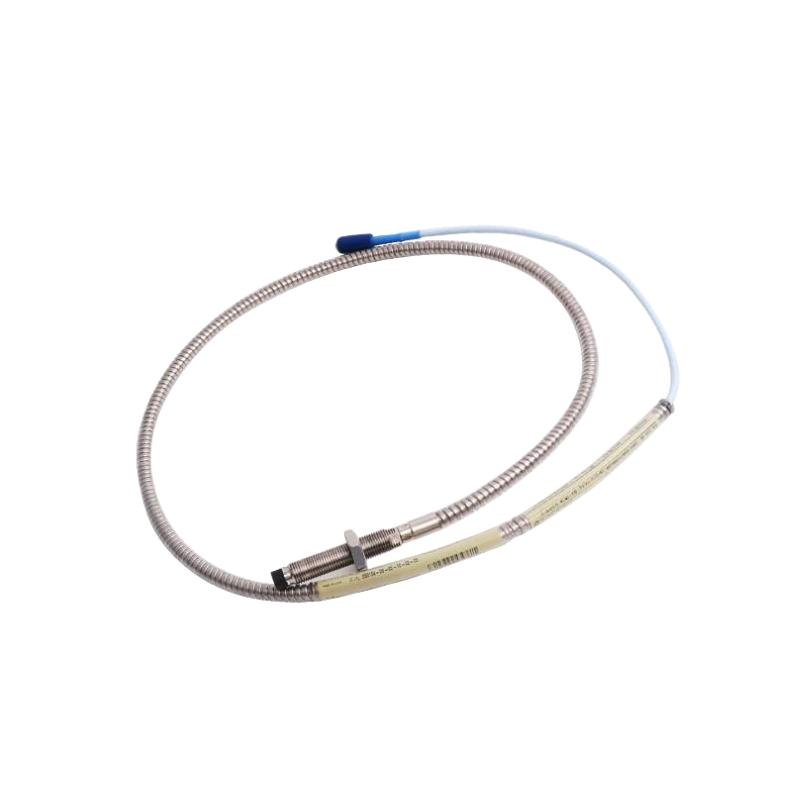

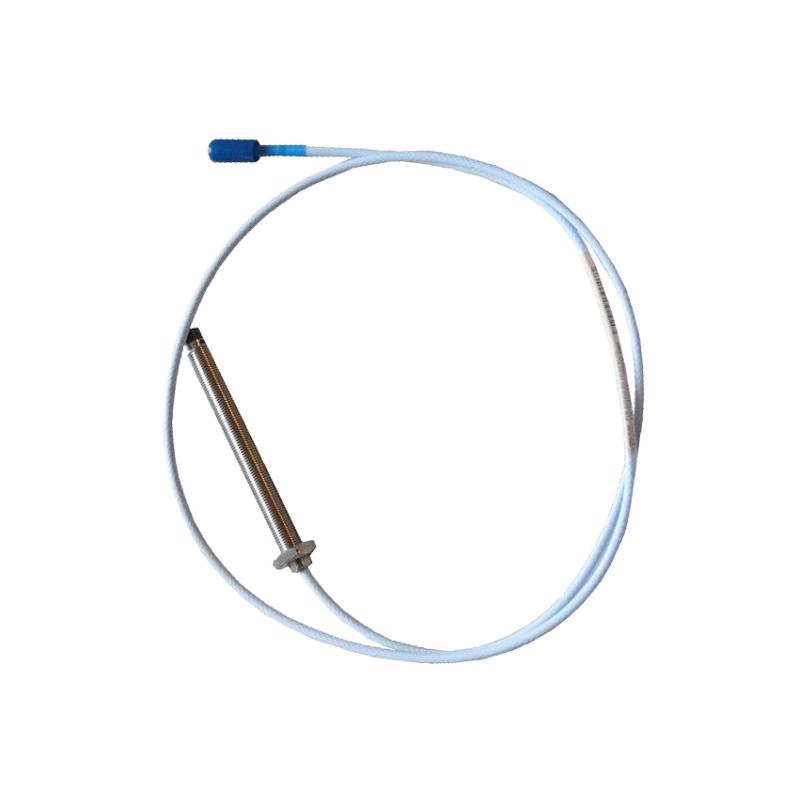

The Bently Nevada 330104-00-06-50-01-00 Proximity Probe Module is a premium-grade non-contact eddy-current sensor designed to provide precise monitoring of shaft vibration, axial position, and radial displacement in critical rotating machinery. As part of the industry-leading 3300 XL 8 mm Proximity Transducer System, this model combines advanced sensing technology, exceptional durability, and proven reliability to help industrial facilities achieve higher equipment availability and lower maintenance costs.
This configuration incorporates a 60 mm probe case length (Option 06), a 5.0-meter total system length (Option 50), and a standard connector configuration (Option 01). The extended cable length makes this probe particularly suitable for large machinery installations where monitoring racks and control cabinets are located further away from the machine. Its robust design and excellent environmental resistance enable dependable operation in demanding industries such as power generation, oil and gas, petrochemicals, mining, and heavy manufacturing.
By delivering accurate, real-time shaft movement data, this probe supports predictive maintenance programs, helping maintenance teams identify developing mechanical issues before they result in costly production interruptions.
Product Overview
General Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-06-50-01-00 |
| Product Family | 3300 XL 8 mm Series |
| Product Type | Proximity Probe Module |
| Sensing Technology | Eddy Current, Non-Contact |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Installation Method | Threaded Mounting |
| Primary Function | Shaft Vibration and Position Measurement |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Output Type | Linear Voltage Output |
| Typical Sensitivity | 200 mV/mil (7.87 V/mm) |
| Frequency Response | Up to 10 kHz |
| Measurement Range | Static and Dynamic Monitoring |
| Signal Stability | Excellent Long-Term Accuracy |
| Electrical Noise Immunity | Industrial Grade |
| Compatible Proximitor | 3300 XL Series |
| Monitoring System Compatibility | Bently Nevada 3500 Series |
The probe provides highly repeatable measurement performance, ensuring reliable machinery diagnostics and vibration analysis over extended operating periods.
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Probe Case Length | 60 mm |
| Unthreaded Length | 0 mm |
| Total System Length | 5.0 Meters (16.4 ft) |
| Connector Style | Standard Miniature Coaxial Connector |
| Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Approximate Net Weight | 0.48 kg |
| Estimated Shipping Weight | 2.1 kg |
The longer probe body combined with the 5-meter cable provides excellent installation flexibility for large rotating equipment and remote monitoring cabinet configurations.
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -52°C to +177°C |
| Maximum Probe Tip Temperature | +218°C |
| Cable Temperature Rating | Up to +260°C |
| Relative Humidity | Up to 93% Non-Condensing |
| Shock Resistance | Industrial Duty |
| Vibration Resistance | Continuous Heavy-Duty Service |
| Corrosion Protection | Stainless Steel Construction |
| Environmental Suitability | Harsh Industrial Applications |
The probe is engineered to withstand challenging operating conditions while maintaining measurement accuracy and long-term reliability.
