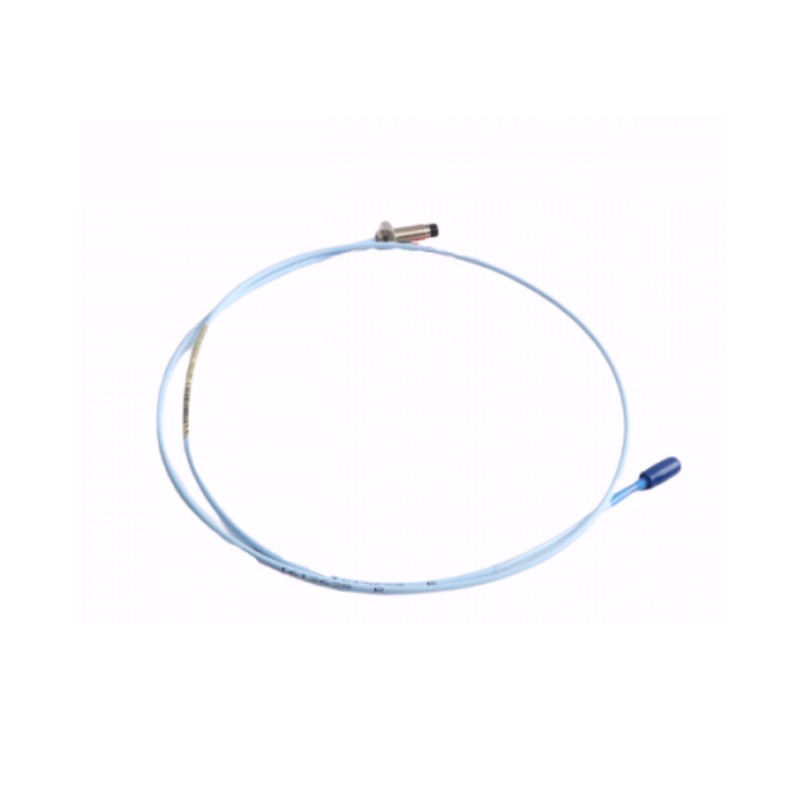

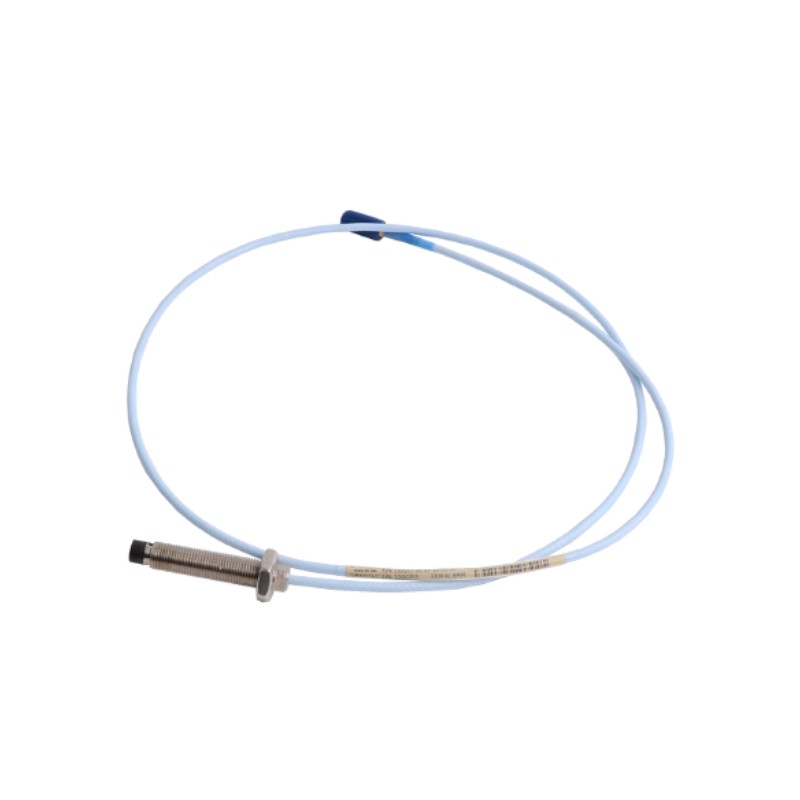

The Bently Nevada 330104-00-07-10-12-RU Proximity Probe Module is a high-precision, non-contact eddy-current sensor engineered for continuous monitoring of shaft vibration, radial displacement, and axial position in critical rotating machinery. As part of the globally proven 3300 XL 8 mm Proximity Transducer System, it delivers exceptional measurement stability, rugged durability, and long-term reliability in harsh industrial environments.
This configuration features a 70 mm probe case length (Option 07), a 1.0-meter total system length (Option 10), a specialized connector/cable configuration (Option 12), and a RU certification package (RU option) designed for Russia-region compliance requirements such as industrial safety and local regulatory approval (commonly used for CIS industrial installations). It is especially suitable for projects requiring certified components for oil & gas, power generation, and heavy industry environments in Russian-standard deployments.
Product Technical Specifications
General Information
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330104-00-07-10-12-RU |
| Product Series | 3300 XL 8 mm Proximity System |
| Type | Proximity Probe Module |
| Measurement Principle | Eddy Current Non-Contact Sensing |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Installation Method | Threaded Mounting |
| Primary Function | Shaft Vibration & Position Monitoring |
Electrical Performance
| Parameter | Specification |
|---|---|
| Output Signal | Linear Voltage Output |
| Sensitivity | 200 mV/mil (7.87 V/mm typical) |
| Frequency Response | 0 Hz – 10 kHz |
| Static Measurement | Supported |
| Dynamic Measurement | Supported |
| Signal Stability | High long-term stability |
| EMI Immunity | Industrial-grade shielding |
| System Compatibility | Bently Nevada 3300 XL / 3500 Series |
The probe ensures consistent signal integrity even in electrically noisy environments, supporting reliable condition monitoring in continuous-operation machinery.
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Probe Case Length | 70 mm |
| Unthreaded Length | 0 mm |
| Total System Length | 1.0 meter (3.3 ft) |
| Connector Type | Option 12 specialized industrial connector/cable |
| Housing Material | AISI 303 / 304 Stainless Steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Approximate Net Weight | 0.35–0.42 kg |
| Shipping Weight | ~1.7–2.2 kg |
The 1.0-meter cable provides balanced installation flexibility, while the RU-specific configuration supports regional industrial deployment standards.
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -52°C to +177°C |
| Maximum Probe Tip Temperature | +218°C |
| Cable Temperature Rating | Up to +260°C |
| Relative Humidity | Up to 93% non-condensing |
| Vibration Resistance | Continuous industrial duty |
| Shock Resistance | Heavy industrial grade |
| Corrosion Resistance | High |
| Certification | RU regional compliance package |
The RU configuration is designed for harsh industrial environments where certified instrumentation is required for compliance-driven installations.
