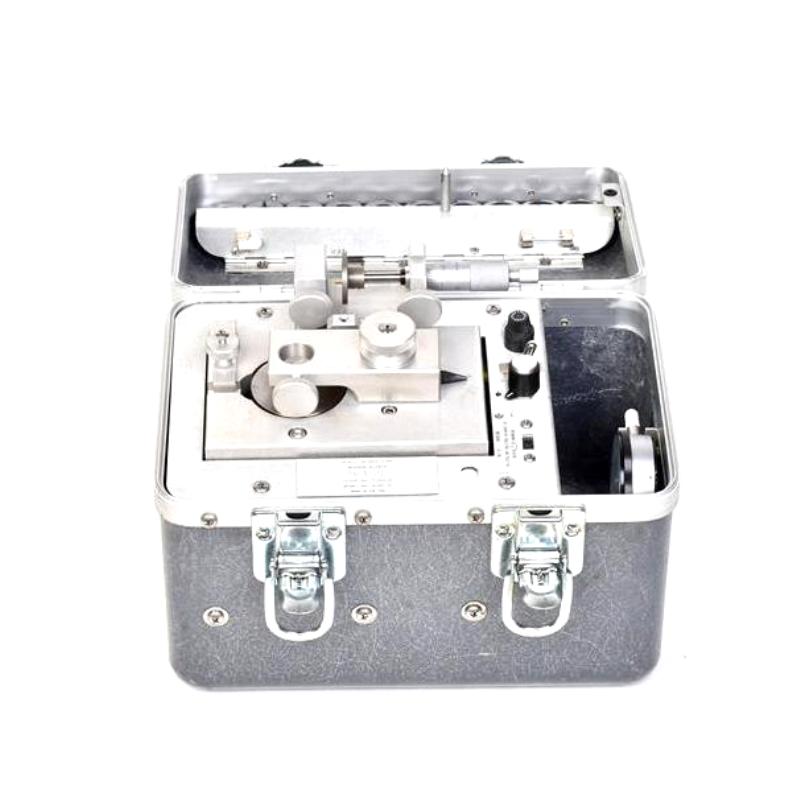

Bently Nevada TK3-2E 177313-02-02 Calibration Instruments

Applications

• Calibration of proximity probes and vibration monitoring systems in rotating machinery applications.

• Verification of shaft displacement and vibration measurements in turbines and compressors.

• Maintenance and troubleshooting of machinery protection systems in power plants.

• Performance testing of Proximitor sensors and extension cable assemblies.

• Workshop and field calibration for predictive maintenance programs.

• Inspection and commissioning of condition monitoring systems in industrial facilities.

Key Advantages

• Simulates shaft vibration and position to verify system accuracy under controlled conditions.

• Universal probe mounting capability accommodates multiple probe diameters.

• Integrated wobulator enables precise vibration signal generation without external equipment.

• Portable design simplifies field calibration and maintenance tasks.

• High-precision spindle micrometer improves measurement repeatability and accuracy.

• Rugged construction ensures dependable operation in demanding industrial environments.

Technical FAQs

Q1: What is the primary function of the TK3-2E?
It simulates shaft vibration and position for calibrating and verifying proximity transducer systems.

Q2: Which probe sizes are supported?
It supports proximity probes ranging from 5 mm to 19 mm in diameter.

Q3: Can it be used for field calibration?
Yes, it is designed for both workshop and on-site calibration tasks.

Q4: Does the instrument generate vibration signals?
Yes, the integrated wobulator provides controlled mechanical vibration amplitudes.

Q5: Is an oscilloscope required during calibration?
No, calibration can be performed using the supplied components and a voltmeter.

Q6: What systems can be tested with the TK3-2E?
It is compatible with Bently Nevada proximity probe and monitoring systems.

Q7: What is the spindle micrometer range?
The micrometer provides a range from 0 to 25.4 mm.

Q8: Can it verify monitor readings?
Yes, it helps confirm the accuracy of vibration monitor indications.

Q9: Is it suitable for predictive maintenance programs?
Yes, it is widely used to maintain the accuracy of condition monitoring systems.

Q10: What industries commonly use this instrument?
Power generation, oil & gas, petrochemical, mining, and heavy manufacturing industries.
