Brand:Epro PLC Item No.:PR6424/013-130 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

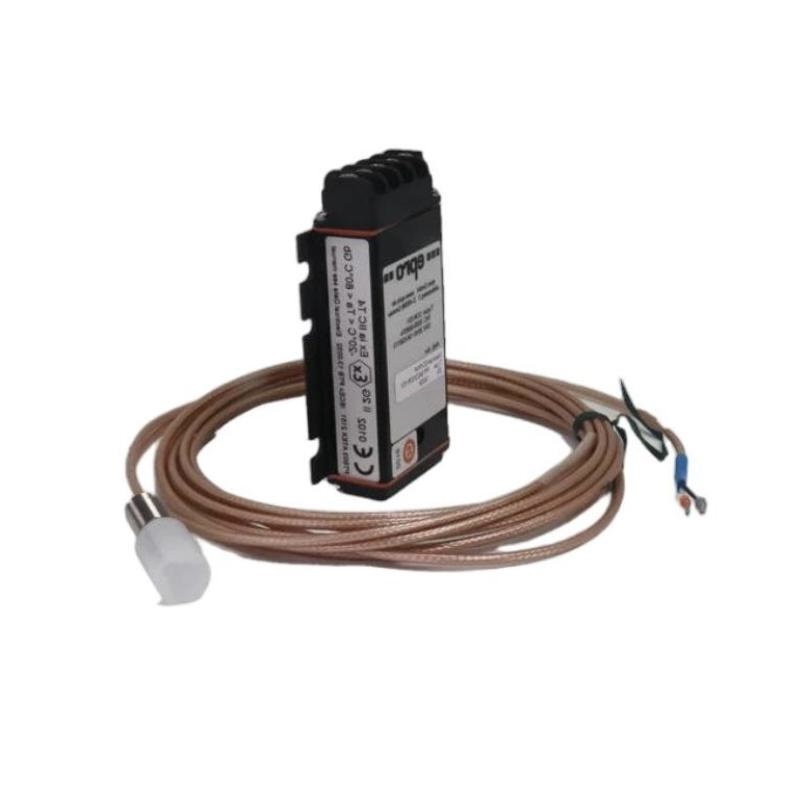

The PR6424/013-130 16 mm Eddy Current Sensor is part of Emerson Epro’s industrial proximity probe series used for high-precision machinery protection and condition monitoring. It delivers accurate real-time measurement of shaft motion, enabling early detection of imbalance, misalignment, and bearing degradation.
Built for demanding industrial environments, it provides stable and repeatable performance under continuous operation, making it suitable for critical asset protection systems.
Technical Specifications
Parameter
Specification
Product Type
Eddy Current Proximity Sensor
Brand
Epro (Emerson)
Sensor Diameter
16 mm
Measurement Type
Shaft vibration & displacement
Operating Principle
Non-contact eddy current
Signal Output
Requires external converter (CON series)
Target Material
Ferromagnetic steel
Operating Temperature
-35°C to +180°C
Application
Turbomachinery condition monitoring
Installation Type
Fixed proximity probe
Weight
0.2 kg (0.44 lb)
Applications
The Epro PR6424/013-130 16 mm Eddy Current Sensor is a high-precision non-contact probe used for monitoring shaft vibration, displacement, and eccentricity in turbomachinery. It is widely deployed in industrial rotating equipment where stable and accurate measurement is critical for protection and predictive maintenance.
Steam and gas turbine shaft vibration monitoring
Centrifugal compressors and axial displacement measurement
Industrial pumps and fan condition monitoring systems
Gearbox alignment and shaft eccentricity detection
Power generation rotating machinery protection systems
Oil & gas refinery rotating equipment monitoring
Continuous condition monitoring of critical rotating assets
Advantages
16 mm eddy current probe design for high sensitivity and stable output
Non-contact measurement eliminates mechanical wear and improves reliability
High linear accuracy for precise displacement tracking
Stable operation in harsh industrial environments
Strong resistance to vibration, temperature variation, and EMI noise
Compatible with Epro CON-series signal conditioning systems
Suitable for long-term 24/7 monitoring applications
Supports API 670-compliant machinery protection systems
Technical FAQs (10 Technical Questions)
Q1: What is the main function of this sensor?
It measures shaft vibration and displacement using eddy current technology.
Q2: Does it require a signal converter?
Yes, it must be used with Epro CON-series modules such as CON011, CON021, or CON041.
Q3: Is it suitable for turbines and compressors?
Yes, it is widely used in turbomachinery monitoring systems.
Q4: Does it require physical contact with the shaft?
No, it is a non-contact measurement probe.
Q5: What materials is it designed to measure?
It is optimized for ferromagnetic steel shafts.
Q6: Can it measure both vibration and displacement?
Yes, it measures static displacement and dynamic vibration.
Q7: Is calibration required after installation?
Yes, system calibration with the matched converter is required.
Q8: Can it operate in high-temperature environments?
Yes, it is designed for harsh industrial temperature conditions.
Q9: Is it suitable for continuous monitoring?
Yes, it supports 24/7 condition monitoring applications.
Q10: Does it comply with industrial standards?
Yes, it is commonly used in API 670-compliant protection systems.
