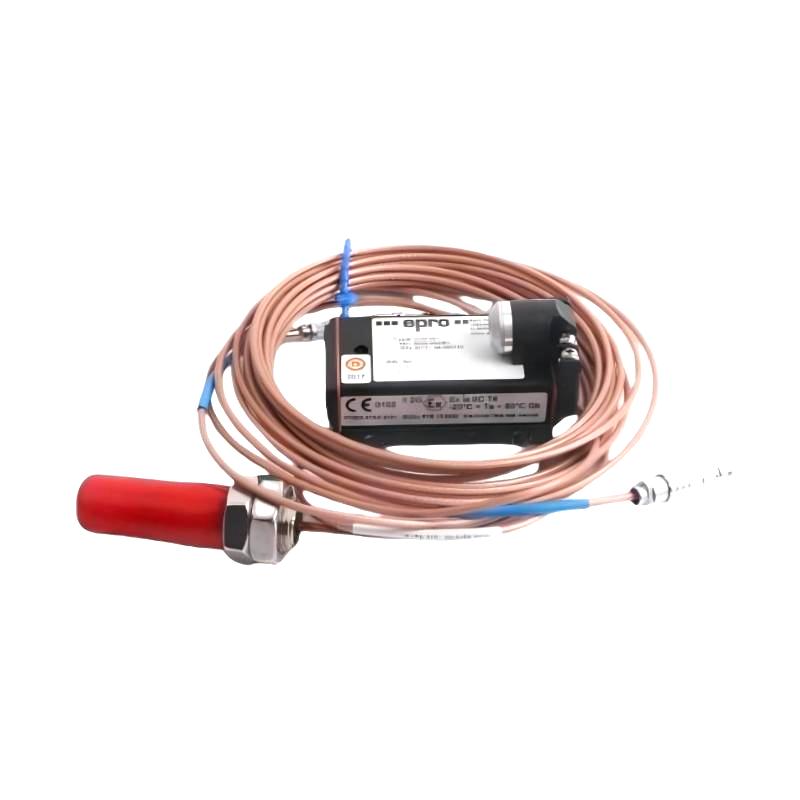

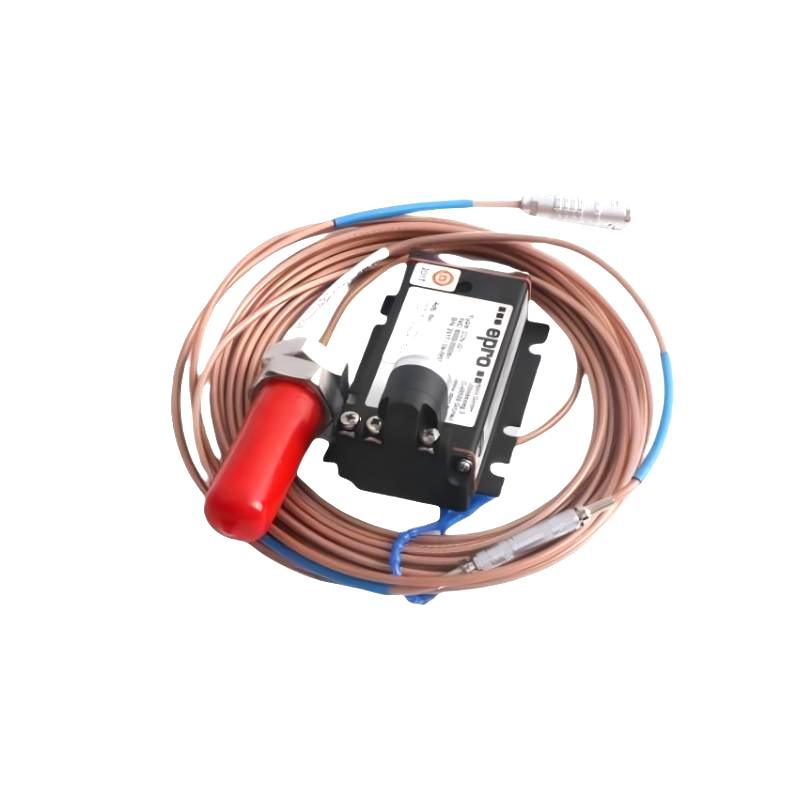

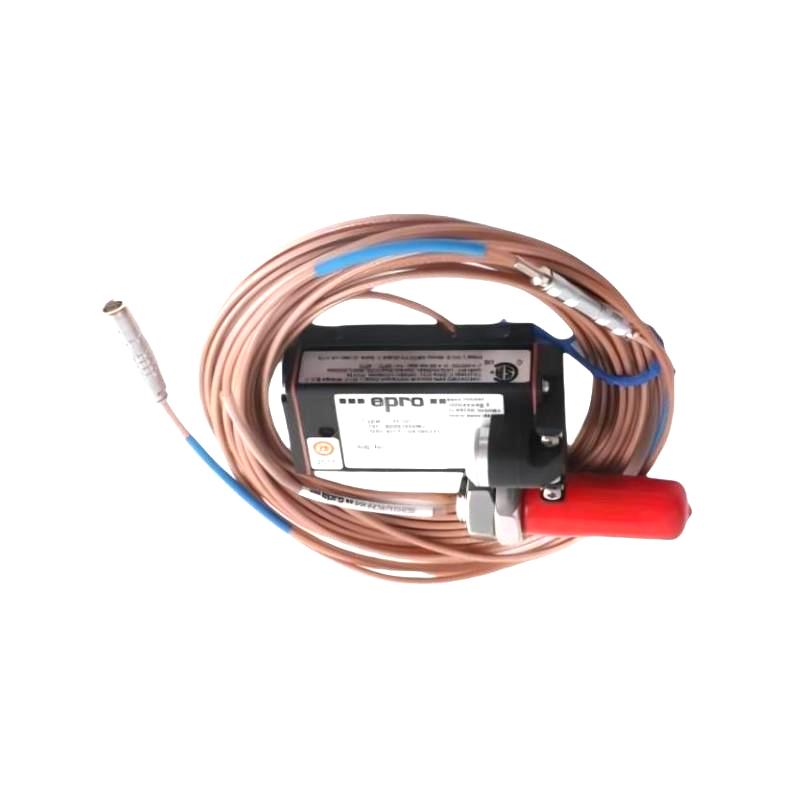

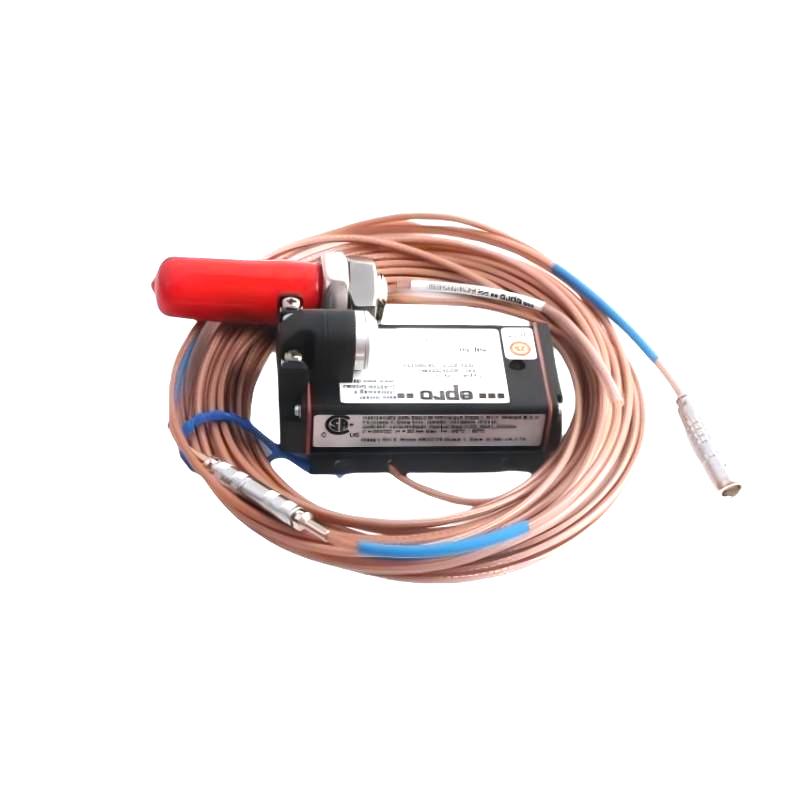

Epro PR6424/013-140+CON021 16 mm Eddy Current Sensor
Epro PR6424/013-140+CON021 16 mm Eddy Current Sensor
0.0
Points
Brand:Epro PLC Item No.:PR6424/013-140+CON021 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The PR6424/013-140 + CON021 system is part of Emerson Epro’s advanced eddy current monitoring portfolio, engineered for high-precision measurement of shaft dynamics in critical industrial machinery. It provides reliable detection of vibration, displacement, and eccentricity, enabling early fault detection and improved asset reliability.
With its integrated sensor-converter architecture, the system ensures stable signal conditioning and accurate data acquisition even in electrically noisy and mechanically demanding environments.
Technical Specifications
Parameter
Specification
Product Type
Eddy Current Proximity Measurement System
Sensor Model
PR6424/013-140
Converter Model
CON021
Sensor Diameter
16 mm
Measurement Type
Shaft vibration & displacement
Operating Principle
Non-contact eddy current
Measurement Range
±2.0 mm (typical system range)
Frequency Response
Up to 20 kHz (system dependent)
Operating Temperature
-35°C to +180°C
Target Material
Ferromagnetic steel shafts
System Output
Conditioned analog signal via CON021
Application
Turbomachinery condition monitoring
Weight
0.32 kg (0.71 lb)
Applications
The Epro PR6424/013-140 + CON021 Eddy Current Sensor System is a high-performance industrial measurement solution designed for precise monitoring of shaft vibration, axial displacement, and eccentricity in turbomachinery. By combining a 16 mm eddy current probe with a dedicated signal converter, it delivers stable, real-time data for critical rotating equipment protection.
Steam and gas turbine vibration monitoring systems
Centrifugal compressors and axial displacement tracking
Industrial pumps, fans, and blower condition monitoring
Gearbox shaft alignment and eccentricity detection
Power generation rotating machinery protection systems
Oil & gas refinery rotating asset monitoring
Continuous predictive maintenance and condition monitoring platforms
Advantages
Factory-matched probe and CON021 converter ensures measurement stability
High-sensitivity 16 mm eddy current probe for reliable signal resolution
Non-contact measurement eliminates mechanical wear and drift
Excellent linearity for accurate displacement and vibration tracking
Strong resistance to EMI, vibration, and harsh industrial environments
Wide frequency response suitable for dynamic turbomachinery applications
Designed for long-term 24/7 monitoring in mission-critical systems
Fully compatible with industrial PLC/DCS monitoring architectures
Technical FAQs (10 Technical Questions)
Q1: What is the function of this system?
It measures shaft vibration and displacement using eddy current technology with signal conditioning via CON021.
Q2: Is the probe usable without CON021?
No, the PR6424 probe requires a signal converter like CON021 to produce usable output signals.
Q3: What type of machines is it used on?
It is used on turbines, compressors, pumps, and other rotating machinery.
Q4: Does it measure both static and dynamic behavior?
Yes, it measures both shaft position (static) and vibration (dynamic).
Q5: Is this a contact or non-contact system?
It is a non-contact eddy current measurement system.
Q6: Can it operate in harsh environments?
Yes, it is designed for high temperature, vibration, and industrial EMI conditions.
Q7: Is calibration required?
Yes, calibration is required when pairing probe and converter for accurate output.
Q8: What signals does CON021 provide?
It outputs standardized voltage or current signals for monitoring systems.
Q9: Is it suitable for continuous monitoring?
Yes, it is designed for 24/7 industrial condition monitoring applications.
Q10: Does it comply with industrial standards?
Yes, it is commonly used in API 670-compliant machinery protection systems.
