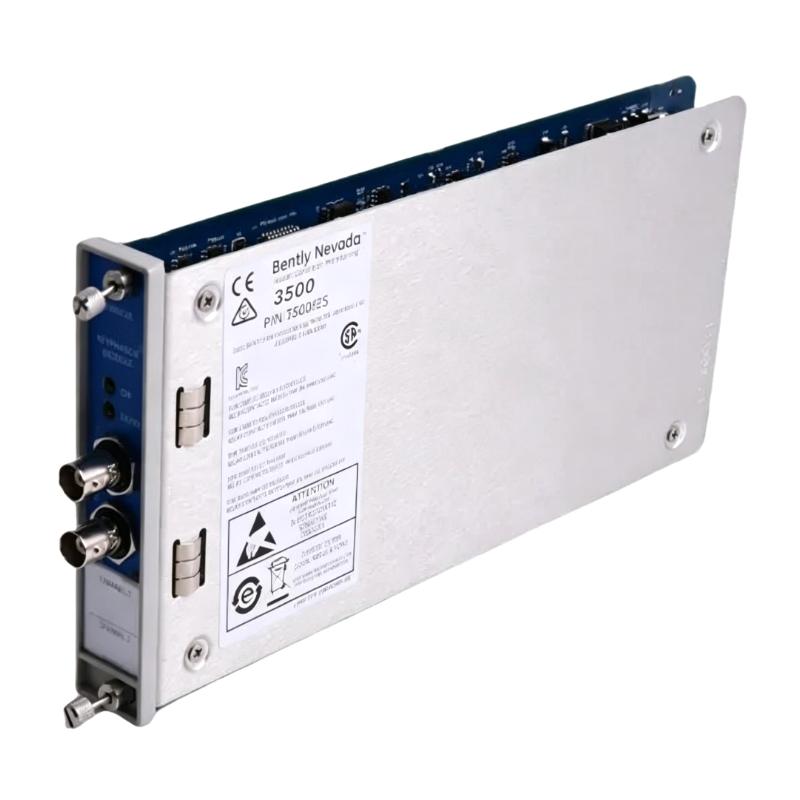

Bently Nevada 3500/25-01-01-02 149369-01+125800-01 Enhanced Bond Phase Module

Applications

• Shaft speed and phase reference measurement
 Used to generate accurate phase and speed signals for rotating machinery such as turbines, compressors, and generators.

• Turbomachinery synchronization systems
 Provides stable phase reference signals for synchronized operation and monitoring of rotating equipment trains.

• Machinery protection and diagnostic systems
 Supports vibration analysis by delivering precise phase angle data for advanced fault detection.

• Condition monitoring and dynamic analysis
 Enables detailed rotor behavior evaluation including imbalance, misalignment, and resonance conditions.

• Power generation monitoring systems
 Widely applied in steam and gas turbine systems for precise timing and phase tracking.

• Industrial predictive maintenance programs
 Improves diagnostic accuracy in long-term machinery health monitoring strategies.

Key Advantages

• High-precision phase signal generation
 Delivers accurate and stable phase reference signals for vibration analysis systems.

• Enhanced compatibility within 3500 platform
 Fully integrates into the Bently Nevada 3500 machinery protection architecture.

• Improved signal stability under dynamic conditions
 Maintains reliable output even during high-speed or variable-load operation.

• Strong diagnostic support capability
 Enhances fault detection accuracy through precise phase alignment data.

• Industrial-grade reliability design
 Built for continuous operation in harsh industrial environments.

• Supports advanced rotating machinery analysis
 Enables deeper insight into rotor dynamics and machine condition trends.

Technical FAQs

Q1: What is the main function of this module?
A: It provides phase reference and speed signals for rotating machinery monitoring and diagnostics.

Q2: What system is it part of?
A: It is part of the Bently Nevada 3500 machinery protection system.

Q3: What type of signal does it process?
A: It processes phase reference signals used in vibration and rotor analysis.

Q4: Does it operate independently?
A: No, it must be installed within a 3500 rack system.

Q5: What equipment is it used with?
A: Turbines, compressors, pumps, motors, and other rotating machinery.

Q6: What is the benefit of phase measurement?
A: It helps identify vibration sources such as imbalance or misalignment more accurately.

Q7: Is it suitable for harsh environments?
A: Yes, it is designed for industrial control cabinet environments.

Q8: Does it require calibration?
A: It is factory-configured as part of the 3500 system architecture.

Q9: Can it improve diagnostics accuracy?
A: Yes, phase data significantly improves vibration analysis precision.

Q10: What industries use it most?
A: Power generation, oil & gas, petrochemical, and heavy industrial sectors.
