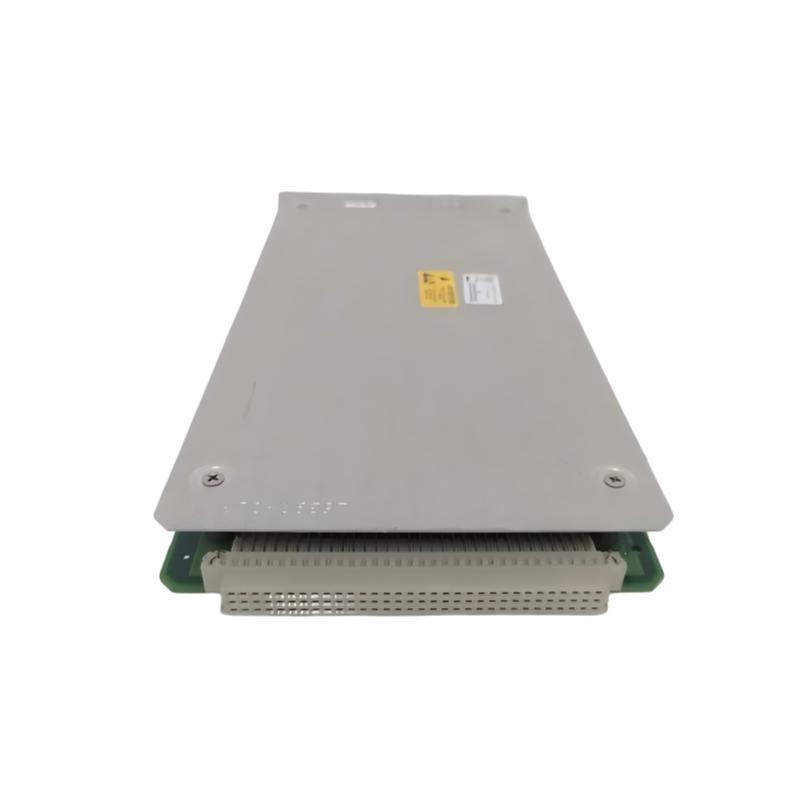

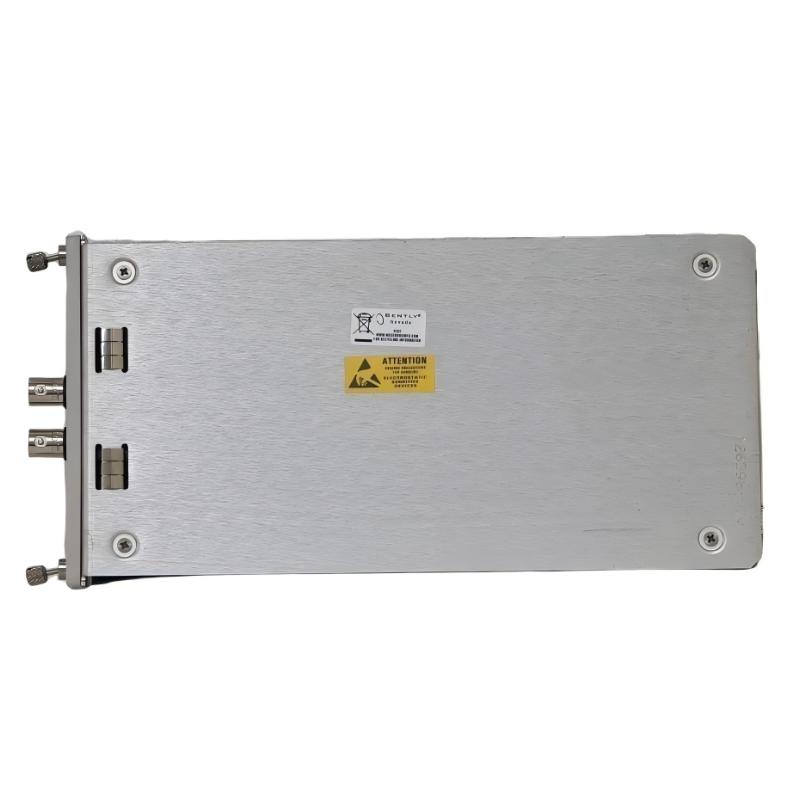

Bently Nevada 3500/25 125792-01+149369-01 Enhanced Bond Phase Module

Enhanced Phase & Speed Reference Monitoring

• High-accuracy phase reference for rotating machinery

• Supports precise speed and angular position measurement

• Processes enhanced Keyphasor® signals

• Suitable for turbines, compressors, pumps, and generators

• Designed for Bently Nevada 3500 machinery protection systems

Key Advantages

• Enhanced Signal Processing: Improved phase stability and accuracy

• Reliable Speed Measurement: Provides precise rotational speed reference

• Dual-Module Configuration: Combines main module and enhanced Keyphasor I/O

• Seamless System Integration: Fully compatible with 3500 series racks

• Industrial-Grade Reliability: Designed for continuous 24/7 operation

Technical FAQs

1. What does the 125792-01 + 149369-01 combination include?
   It includes the Enhanced Bond Phase Module with the Enhanced Keyphasor I/O module.

2. What is the main function of this module set?
   It provides accurate phase and speed reference signals for machinery monitoring.

3. Which systems is it compatible with?
   Bently Nevada 3500 monitoring and protection systems.

4. What type of input does it accept?
   Keyphasor® probe signals from rotating machinery.

5. What applications typically use this module?
   Turbines, compressors, motors, pumps, and generators.

6. Does it support redundant configurations?
   Yes, redundancy can be achieved using paired module configurations.

7. Is it suitable for transient analysis?
   Yes, accurate phase reference is essential for transient and vibration analysis.

8. How is it installed?
   It installs directly into a dedicated slot in a 3500 rack.

9. Does it improve diagnostic accuracy?
   Yes, stable phase reference enhances vibration and condition diagnostics.

10. Is special software required?
    Configuration is performed using standard Bently Nevada 3500 configuration tools.
