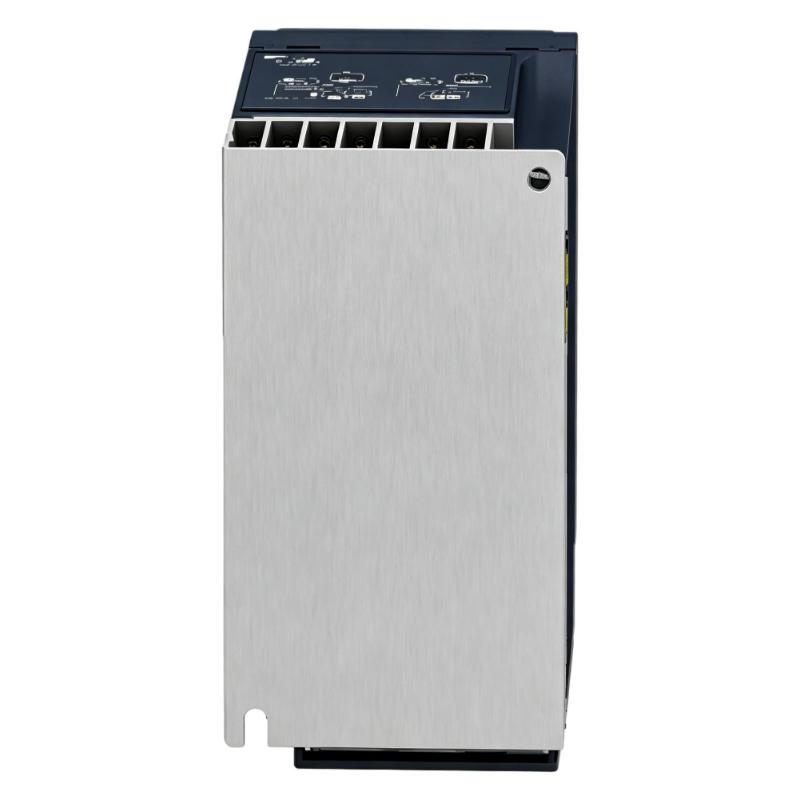

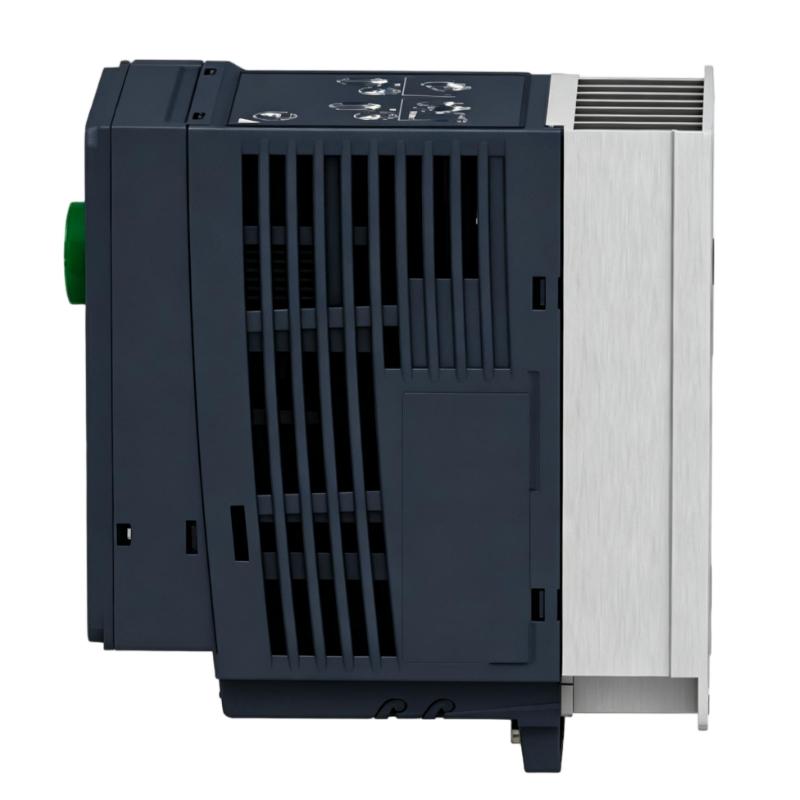

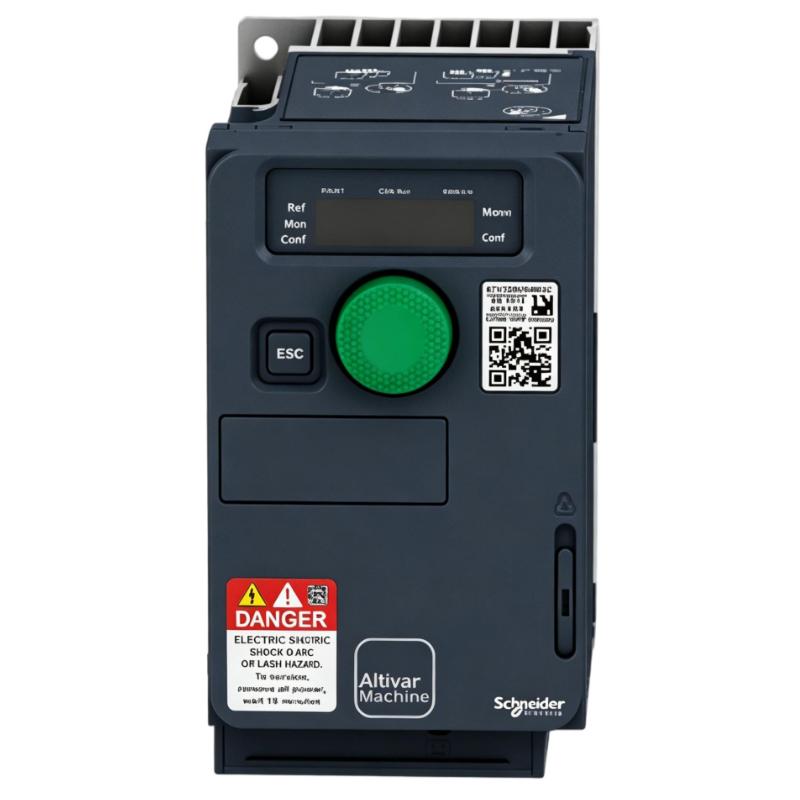

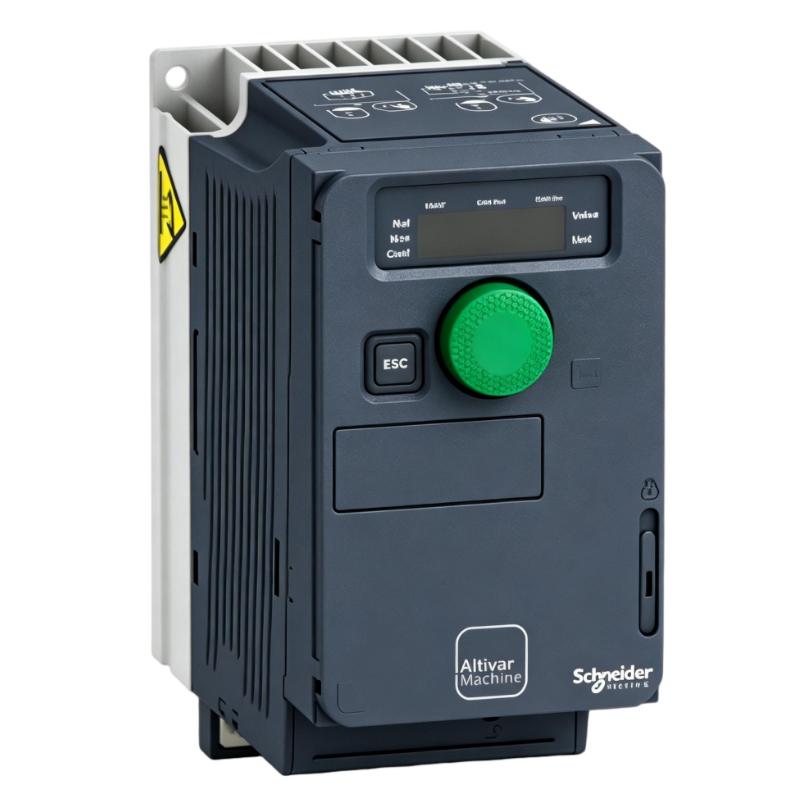

Schneider ATV320U02M2C Variable Speed Drive

Applications

• Conveyor Systems
Helps maintain steady motion in small conveying equipment where uneven load changes can easily affect transport consistency and cause product misalignment.

• Packaging Machinery
Improves motion coordination in compact packaging lines, especially where repetitive start-stop actions require smooth response and timing accuracy.

• Industrial Pump Systems
Used in low-power pumping setups to stabilize flow behavior when demand varies frequently during operation cycles.

• HVAC Ventilation Systems
Supports more balanced airflow control in small ventilation units where motor speed fluctuations directly impact environmental comfort.

• Light Automation Equipment
Provides responsive motor adjustment for compact automated machines that rely on precise timing and repeatable mechanical actions.

Key Advantages

• Stable operation during real machine load changes
Keeps motor behavior smoother when production conditions are not constant, reducing sudden performance fluctuations that may affect machine output quality.

• Easier integration into compact machine designs
Helps machine builders fit the drive into tighter control spaces without redesigning cabinet layouts or sacrificing wiring flexibility.

• Reduced operating waste under light load conditions
Adjusts energy usage more naturally according to actual demand, avoiding unnecessary power draw when full output is not required.

• More tolerant response in unstable electrical environments
Improves operational continuity when supply conditions are not perfectly stable, helping reduce unexpected interruptions.

• More predictable long-term machine behavior
Supports consistent performance over extended use cycles, which helps reduce variation in machine output over time.

Technical FAQs

1. What control methods does the ATV320U02M2C support?

It supports V F control and sensorless vector control for flexible motor operation.

2. What type of motors can it drive?

It is designed for three-phase asynchronous induction motors.

3. What is the rated power of this model?

The rated power is approximately 0.18 kW.

4. What is the input voltage range?

It operates on 200 to 240 VAC single-phase input.

5. Does it support low-speed torque control?

Yes, sensorless vector control improves torque stability at low speeds.

6. Is it suitable for pump applications?

Yes, it supports basic pump control and flow regulation.

7. Does it include built-in braking support?

Yes, braking functions are supported depending on configuration and accessories.

8. Can parameters be adjusted easily?

Yes, parameters can be configured through Schneider tools or keypad interface.

9. What protection features are included?

It includes protection against overload, short circuit, undervoltage, and overheating.

10. Is it suitable for continuous operation?

Yes, it is designed for stable industrial continuous-duty operation.
