Brand:Schneider PLC Item No.:ATV320U02M2B Product Origin:France Product Dimensions:45 x 325 x 245 mm Product Weight:2.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

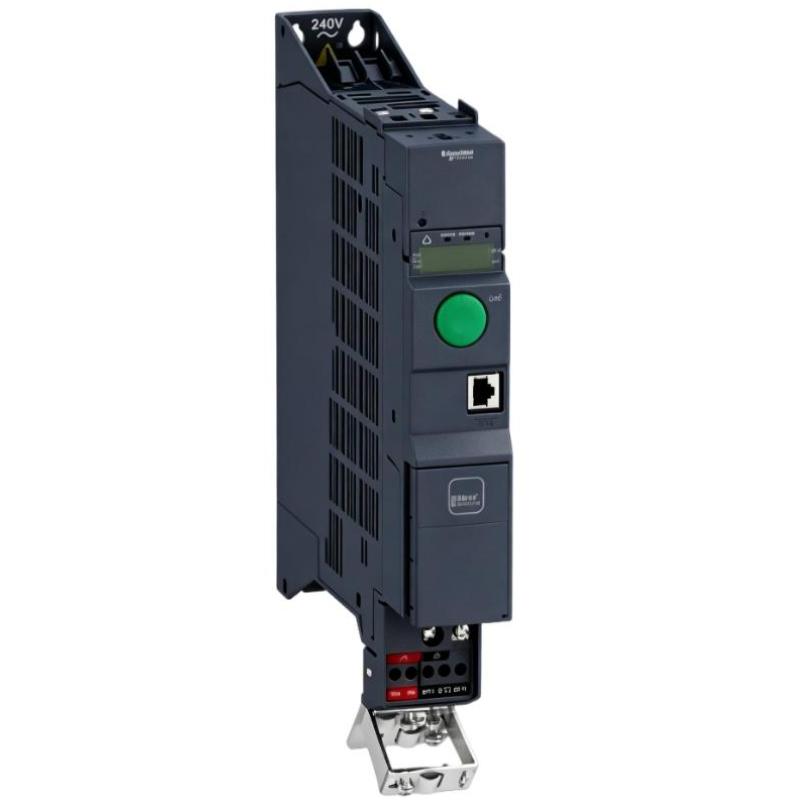

The Schneider ATV320U02M2B is part of the Altivar 320 machine-oriented drive family, developed for compact automation systems requiring reliable and efficient motor control. It is engineered for OEM applications where space constraints, performance stability, and integration flexibility are critical.
• Compact conveyor and transport systems in automated production lines
Provides smooth speed regulation to maintain consistent material flow and reduce mechanical stress on belts and gears.
• Small packaging and labeling machinery
Ensures precise synchronization between motors for accurate product handling and positioning.
• HVAC auxiliary systems including small fans and pumps
Delivers energy-efficient airflow and fluid control for auxiliary climate systems.
• Textile auxiliary equipment and light winding machines
Supports stable tension control and smooth motor acceleration for delicate processing materials.
• OEM-built compact automation machines
Ideal for machine builders requiring a space-saving drive with flexible control functions.
• Light industrial material handling systems
Maintains reliable operation in low to medium load lifting and transfer applications.
Key Advantages
• Ultra-compact book-style design for cabinet optimization
The slim 45 mm width allows high-density installation in modern control panels.
• High-performance motor control algorithms
Ensures stable torque and speed regulation even under variable load conditions.
• Flexible motor compatibility
Supports both asynchronous and synchronous motors for broader application coverage.
• Built-in protection and fault diagnostics
Enhances system reliability and reduces downtime through real-time fault detection.
• Energy-efficient operation
Optimized control logic reduces unnecessary energy consumption during partial loads.
• Fast OEM integration and commissioning
Simplified parameter structure reduces setup time in production environments.
Technical FAQs
Q1: Does the ATV320U02M2B support sensorless vector control?
Yes, it provides sensorless vector control for improved low-speed torque performance.
Q2: Can it be used with both pump and fan applications?
Yes, it is suitable for HVAC-related pump and fan control systems.
Q3: Does it support braking resistor connection?
Yes, external braking resistors can be connected for enhanced braking performance.
Q4: Is it compatible with single-phase power supply?
Yes, it operates on 200–240V single-phase input.
Q5: Does it provide overload protection?
Yes, it includes short-term overload handling capability.
Q6: Can it be integrated into automation networks?
Yes, it supports communication modules depending on system configuration.
Q7: Is it suitable for OEM machine builders?
Yes, it is specifically designed for OEM compact machine integration.
Q8: Does it include built-in fault diagnostics?
Yes, it provides detailed fault codes for troubleshooting.
Q9: Is commissioning complicated?
No, it is designed for quick and simple setup.
Q10: Can it operate under voltage fluctuations?
Yes, it includes protection against unstable supply conditions.
