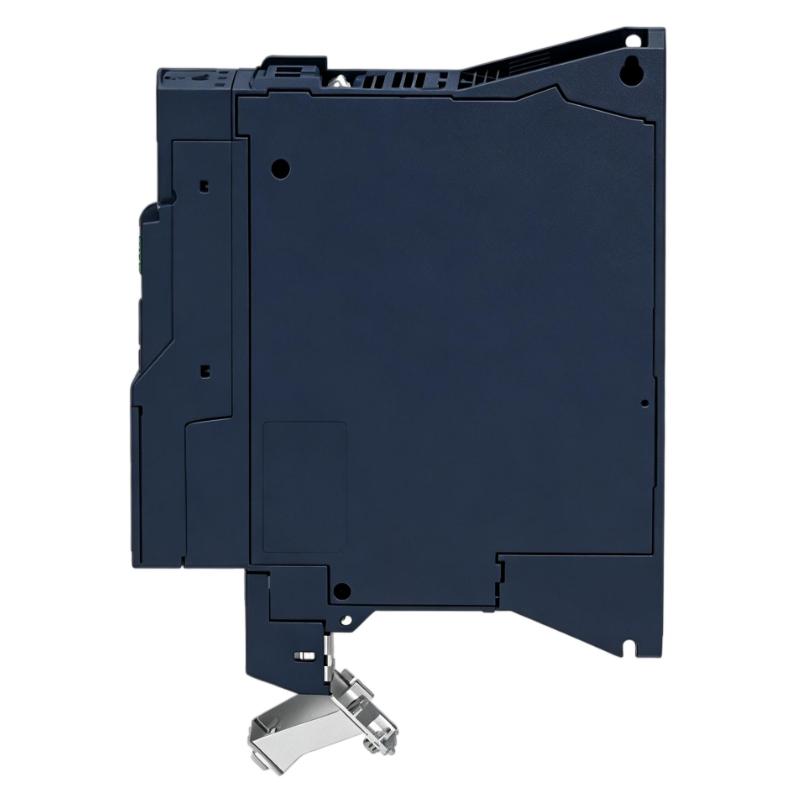

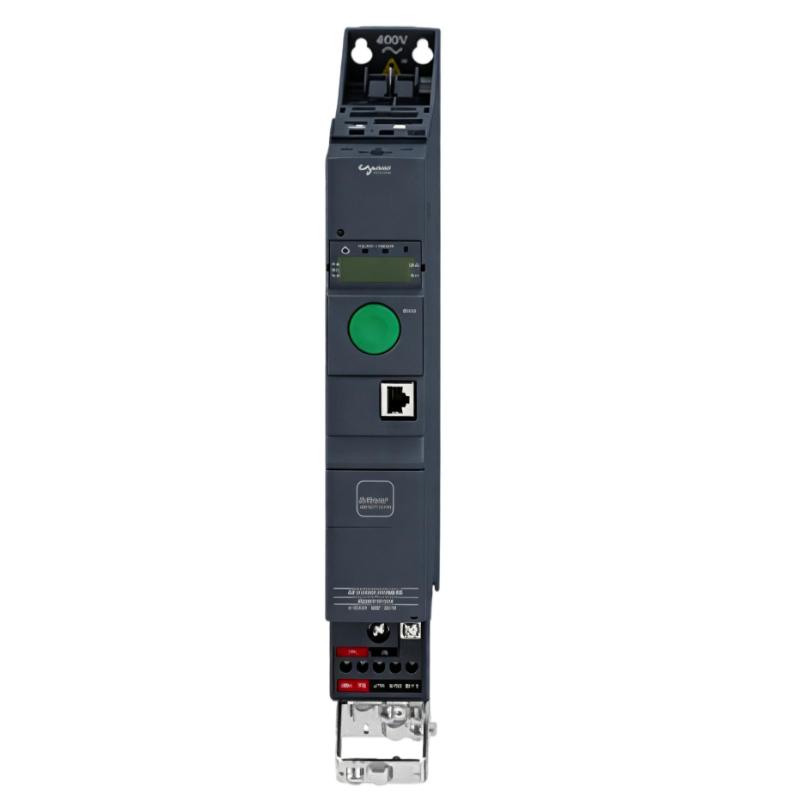

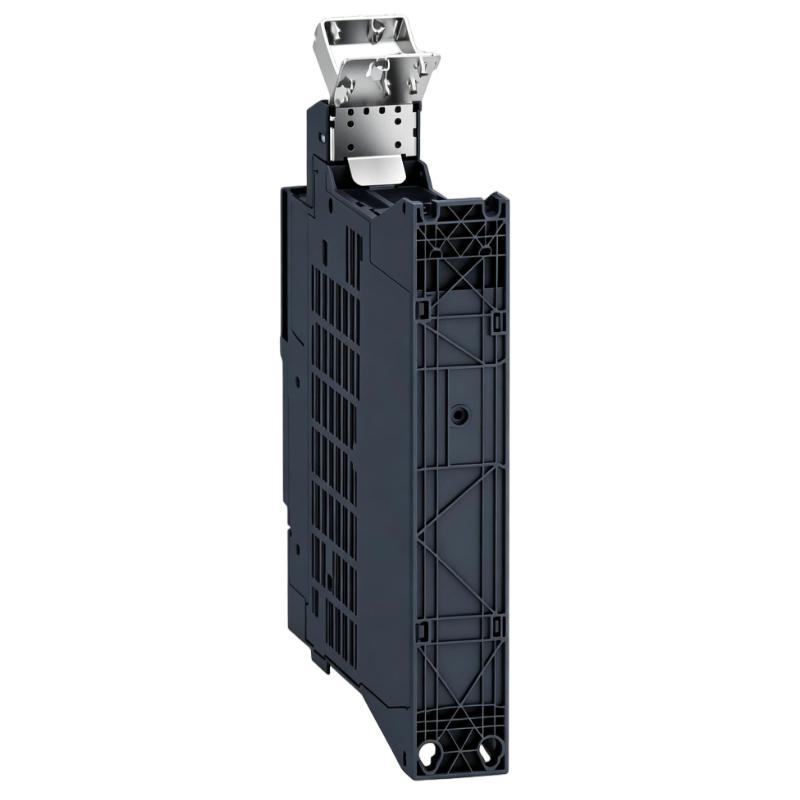

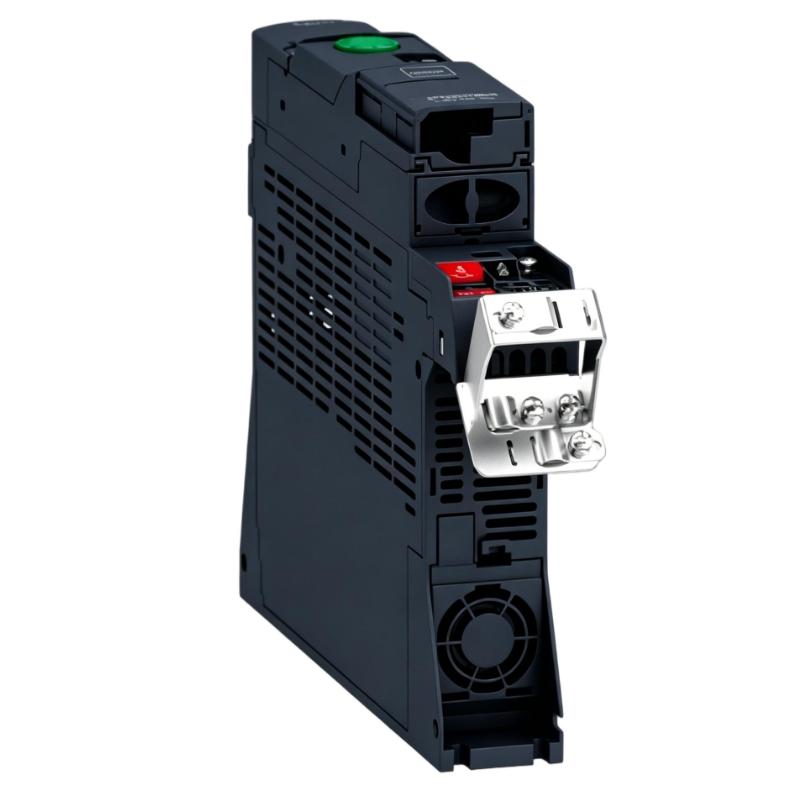

Schneider ATV320U06M2B Variable Speed Drive

Applications

• Compact conveyor systems in automated production lines
Ensures stable motor speed regulation for smooth and consistent material handling.

• Small packaging and labeling machinery
Provides precise synchronization for accurate product positioning and process timing.

• HVAC auxiliary fan and pump systems
Delivers efficient airflow and fluid control with optimized energy consumption.

• Textile auxiliary equipment and winding machines
Maintains stable torque control for delicate material processing.

• OEM compact automation machines
Ideal for machine builders requiring high performance in limited cabinet space.

• Light industrial material handling systems
Supports reliable operation in low to medium load transfer applications.

Key Advantages

• Ultra-compact mechanical design
Optimized for high-density installation in modern control panels.

• High-performance motor control
Ensures stable torque and speed regulation under dynamic load conditions.

• Broad motor compatibility
Supports both asynchronous and synchronous motor types.

• Integrated protection functions
Improves system reliability and reduces downtime risks.

• Energy-efficient operation
Reduces power consumption through intelligent motor control algorithms.

• Fast commissioning and OEM-friendly setup
Simplifies parameter configuration for rapid deployment.

Technical FAQs

Q1: Does this model support sensorless vector control?
Yes, it supports sensorless vector control for improved low-speed torque performance.

Q2: Is it suitable for pump and fan applications?
Yes, it is widely used in HVAC-related applications.

Q3: Can braking resistors be connected?
Yes, external braking resistors are supported.

Q4: Does it support single-phase power input?
Yes, it operates on 200–240V single-phase supply.

Q5: Does it provide overload protection?
Yes, it includes short-time overload capability.

Q6: Can it be integrated into automation networks?
Yes, optional communication modules can be used depending on configuration.

Q7: Is it suitable for OEM machine builders?
Yes, it is specifically designed for OEM compact machine integration.

Q8: Does it include fault diagnostics?
Yes, it provides detailed diagnostic and fault code functions.

Q9: Is commissioning complicated?
No, it is designed for quick and simple setup.

Q10: Can it handle unstable voltage conditions?
Yes, it includes built-in protection against voltage fluctuations.
