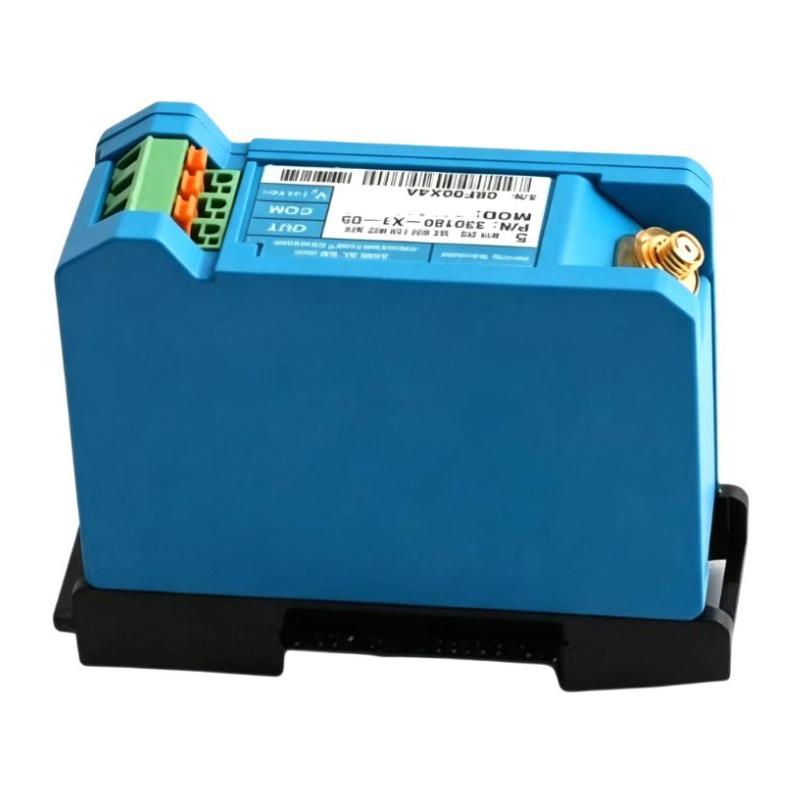

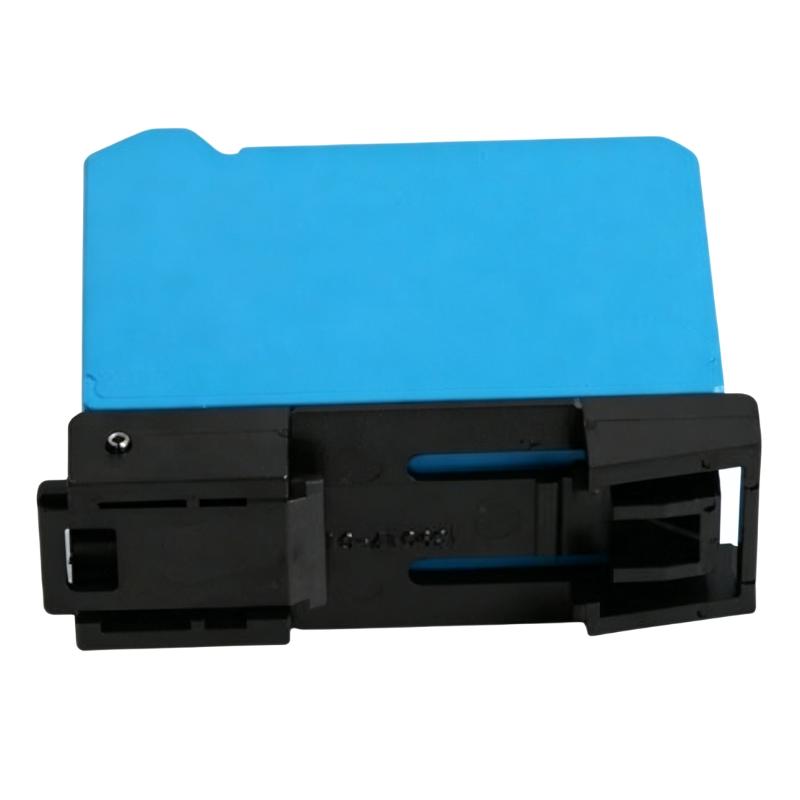

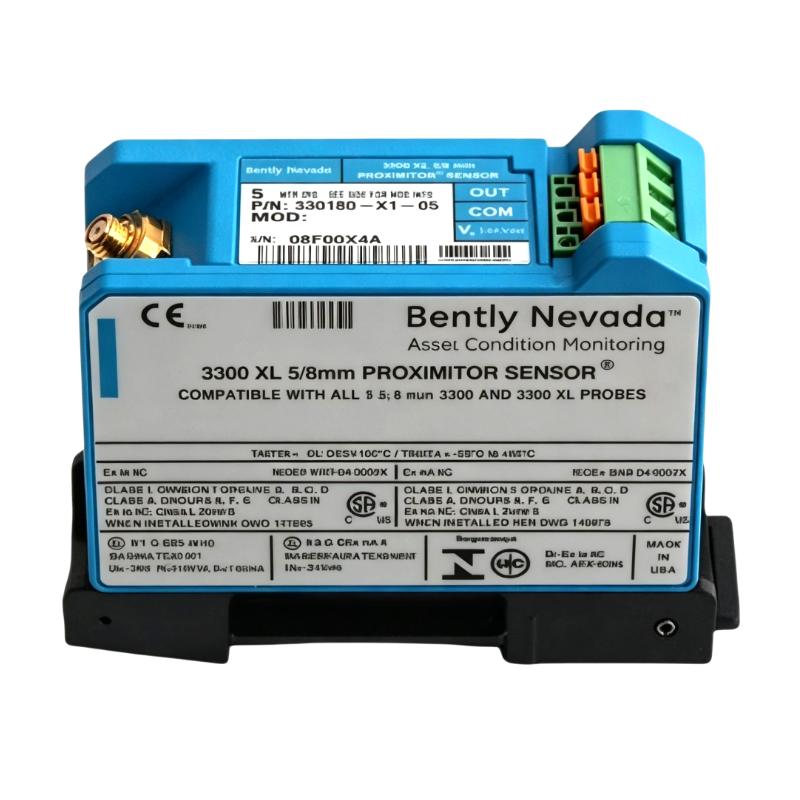

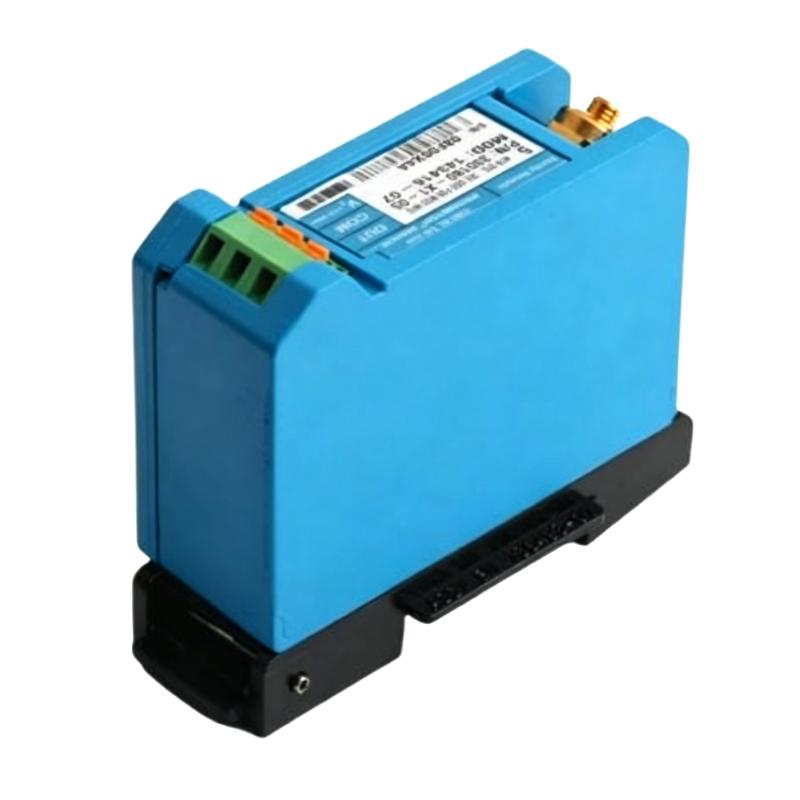

Bently Nevada 330180-X1-05 143416-42 3300 XL 8 mm Preamplifier Sensor
Bently Nevada 330180-X1-05 143416-42 3300 XL 8 mm Preamplifier Sensor
0.0
Points
Brand:Bently Nevada PLC Item No.:330180-X1-05 Product Origin:USA Product Dimensions:81.3 x 35.1 x 63.5 mm Product Weight:0.246 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 330180-X1-05 / 143416-42 is a Proximitor sensor used in the 3300 XL eddy current measurement system. It processes signals from the proximity probe and converts them into stable outputs for vibration and displacement monitoring.
It is widely used in industrial machinery protection systems where continuous and reliable monitoring is required to ensure safe operation of rotating equipment.
Technical Specifications
Parameter
Specification
Product Model
330180-X1-05 / 143416-42
System Type
Bently Nevada 3300 XL
Device Type
Proximitor signal conditioner
Compatible Probe
8 mm proximity probe
Input Signal
Eddy current probe signal
Output Signal
Voltage output proportional to displacement
Power Supply
DC supply (system dependent)
Operating Temperature
Industrial grade
Mounting Type
Panel mount
Housing
Industrial metal enclosure
Dimensions
81.3 × 35.1 × 63.5 mm
Weight
0.246 kg
Function
Signal conditioning for vibration monitoring
Recommended Related Models
Model
Product Name
330180-X1-00
Bently Nevada 3300 XL Proximitor Sensor
330104-02-12-50-02-00
Bently Nevada 3300 XL 8 mm Proximity Probe
330130-045-05-CN
Bently Nevada 3300 XL Extension Cable 4.5 m
330105-02-12-10-12-RU
Bently Nevada Reverse Mount Probe
Popular Related Models
Model
Product Name
330180-X1-05 / 143416-42
Bently Nevada 3300 XL Proximitor Sensor
330104-03-06-05-02-00
Bently Nevada 3300 XL 8 mm Proximity Probe
330130-080-11-05
Bently Nevada 3300 XL Extension Cable 8 m
330104-04-10-05-01-00
Bently Nevada 3300 XL 8 mm Proximity Probe
Applications
• Turbines and rotating machinery
Used for processing probe signals into stable vibration and displacement monitoring outputs.
• Compressors and pumps
Supports continuous monitoring of shaft condition in industrial rotating equipment.
• Power generation systems
Applied in steam, gas, and hydro turbines for vibration and position monitoring.
• Oil and gas industry equipment
Used in compressors, pumps, and rotating machinery in harsh environments.
• Industrial condition monitoring systems
Provides reliable signal conditioning for predictive maintenance applications.
• Heavy industrial machinery
Ensures stable measurement output for large rotating equipment.
Key Advantages
• Stable signal conditioning
Provides consistent conversion of eddy current probe signals into usable outputs.
• System compatibility
Designed for Bently Nevada 3300 XL 8 mm proximity systems.
• Reliable industrial performance
Suitable for continuous operation in vibration-intensive environments.
• Accurate signal output
Maintains linear and stable measurement behavior.
• Compact design
Easy to install in control cabinets or instrumentation panels.
• Proven use in machinery protection systems
Widely applied in turbine and compressor monitoring systems.
Technical FAQs
Q1: What is the function of this device?
It converts probe signals into stable output signals for monitoring systems.
Q2: Is it a probe or sensor head?
No, it is a Proximitor (signal conditioning unit).
Q3: What system is it used with?
It is used with the Bently Nevada 3300 XL 8 mm proximity system.
Q4: What components does it work with?
It works with a proximity probe and extension cable.
Q5: Where is it commonly used?
It is used in turbines, compressors, pumps, and industrial machinery.
Q6: Does it require field calibration?
No, it is factory calibrated.
Q7: What type of output does it provide?
It provides a voltage output proportional to shaft displacement.
Q8: Can it operate continuously?
Yes, it is designed for 24/7 industrial operation.
Q9: Is it affected by vibration?
No, it is designed for stable operation in industrial environments.
Q10: What is its role in protection systems?
It enables vibration monitoring and machine shutdown logic.
