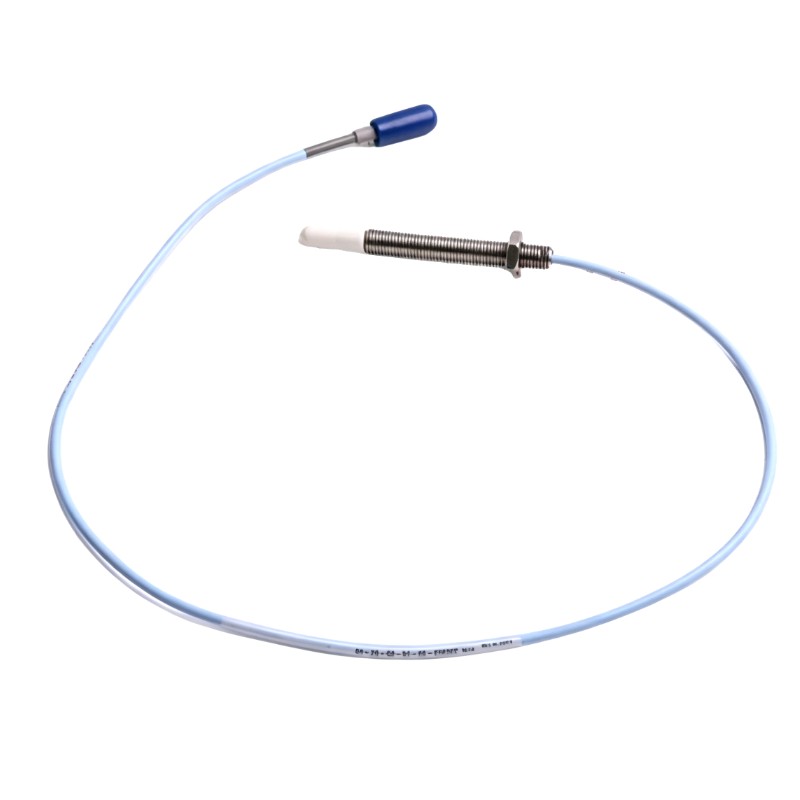

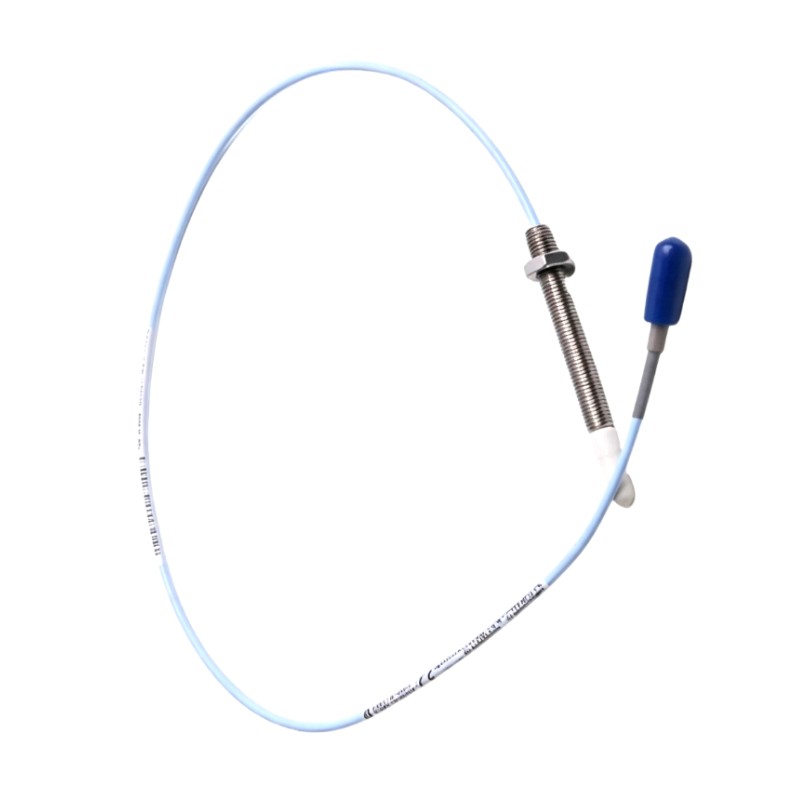

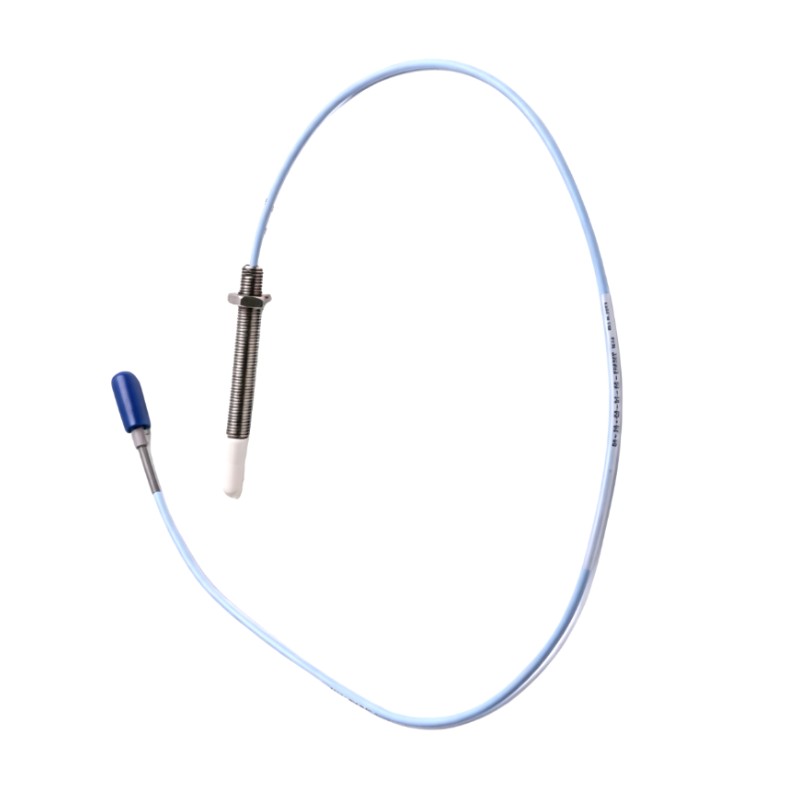

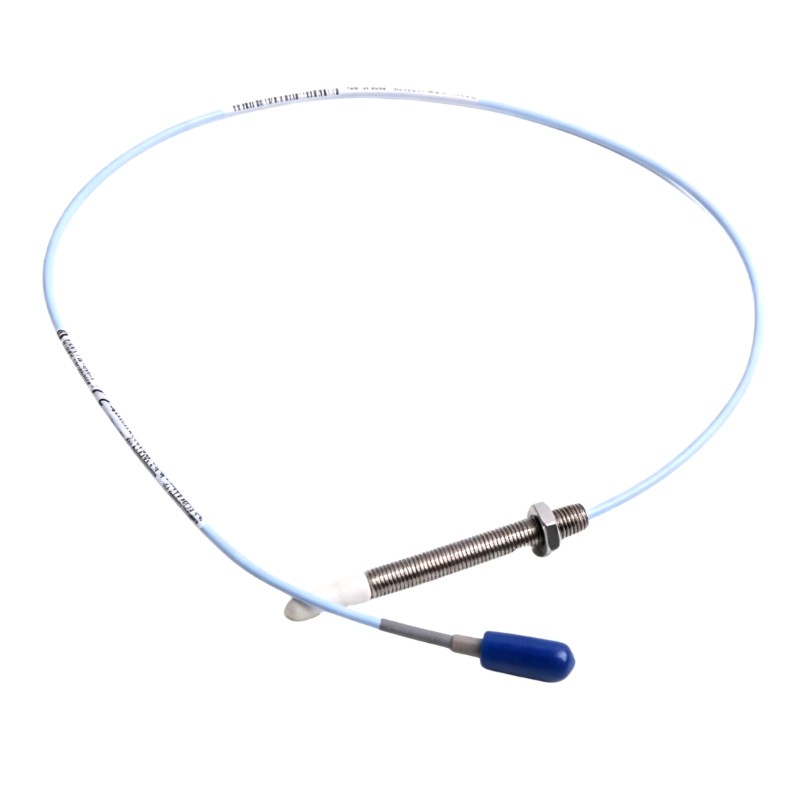

Bently Nevada 330903-01-07-10-12-CN 3300 NSv Proximity Probe

Applications

• Small-frame gas turbine monitoring
Used for precise shaft vibration and position measurement in compact turbine systems

• Industrial compressor monitoring
Ensures stable rotor condition tracking in compressor applications

• High-speed motor shaft measurement
Monitors dynamic shaft movement and displacement in electric motors

• Pump condition monitoring
Detects vibration, imbalance, and early mechanical wear in pump systems

• Compact machinery installations
Suitable for equipment with limited radial installation space

Key Advantages

• High-resolution eddy current sensing
Provides accurate and stable non-contact displacement measurement

• Optimized compact probe design
Ideal for tight installation environments and small machinery layouts

• Strong resistance to electrical interference
Maintains stable signal output in noisy industrial environments

• Full compatibility with 3300 NSv systems
Seamlessly integrates into Bently Nevada monitoring architecture

• Long-term industrial reliability
Designed for continuous operation in demanding environments

Technical FAQs

1. What is the primary function of this probe?
It measures shaft vibration and position using eddy current technology.

2. Which system is it compatible with?
It is designed for the Bently Nevada 3300 NSv platform.

3. Can it be used in compact machinery?
Yes, it is specifically designed for limited-space installations.

4. Does it require physical contact with the shaft?
No, it operates using non-contact measurement.

5. What equipment is it commonly used on?
It is used on turbines, compressors, pumps, and motors.

6. What type of output signal does it provide?
It provides an analog voltage signal proportional to displacement.

7. Can it operate in harsh industrial conditions?
Yes, it is built for high-temperature and high-vibration environments.

8. Does it support predictive maintenance?
Yes, it provides real-time data for condition monitoring systems.

9. What is the benefit of the NSv design?
It allows accurate measurement in restricted radial space applications.

10. Is installation calibration required?
System verification is recommended after installation.
