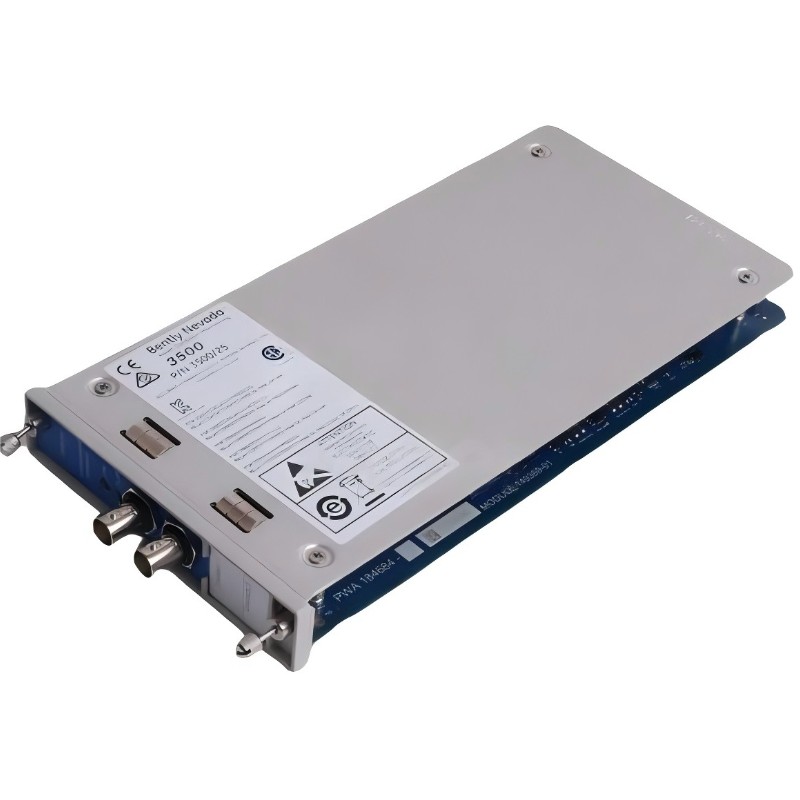

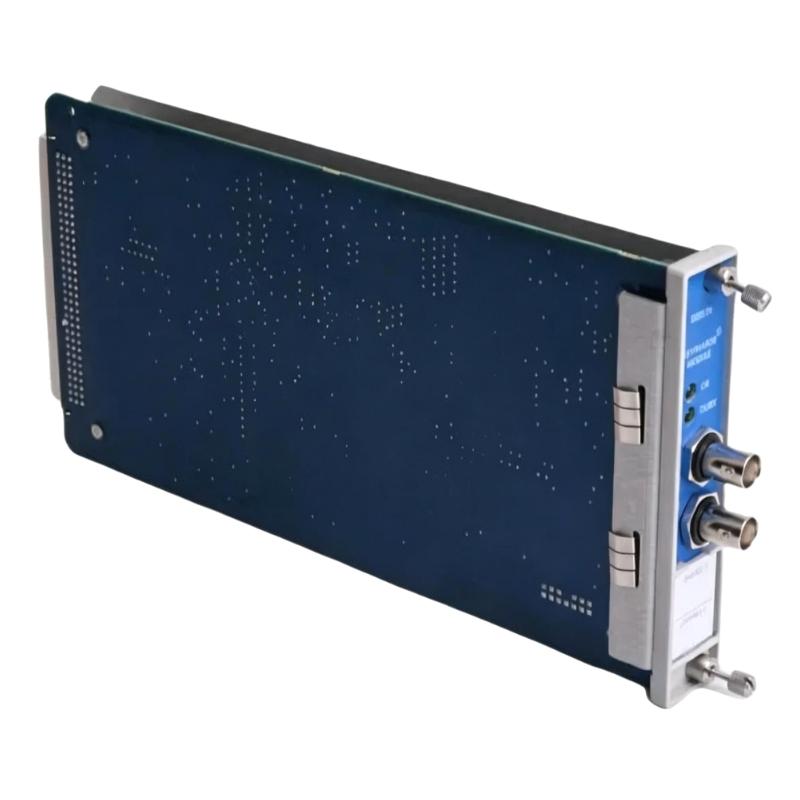

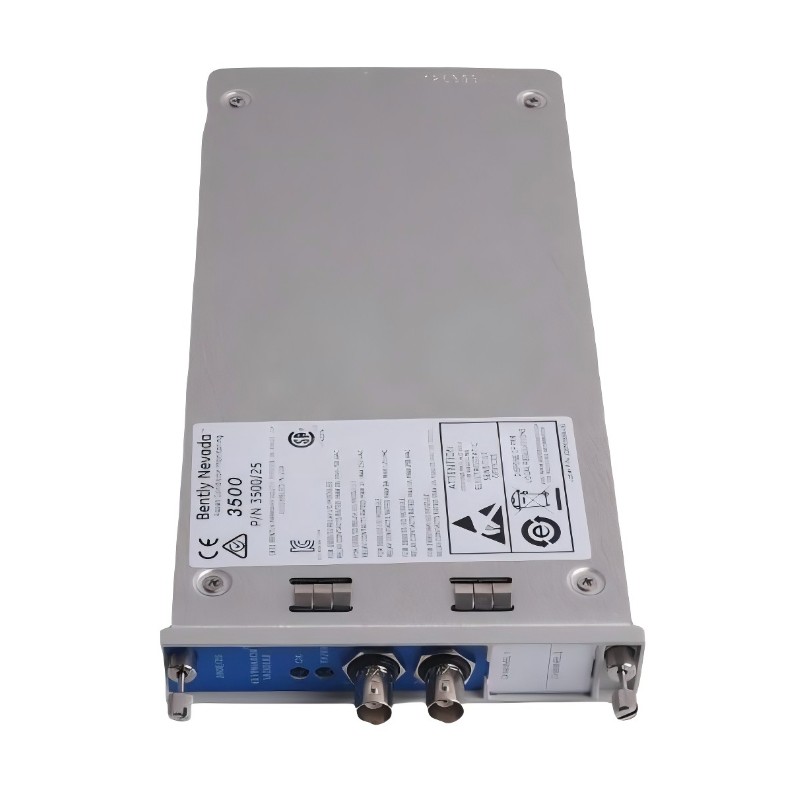

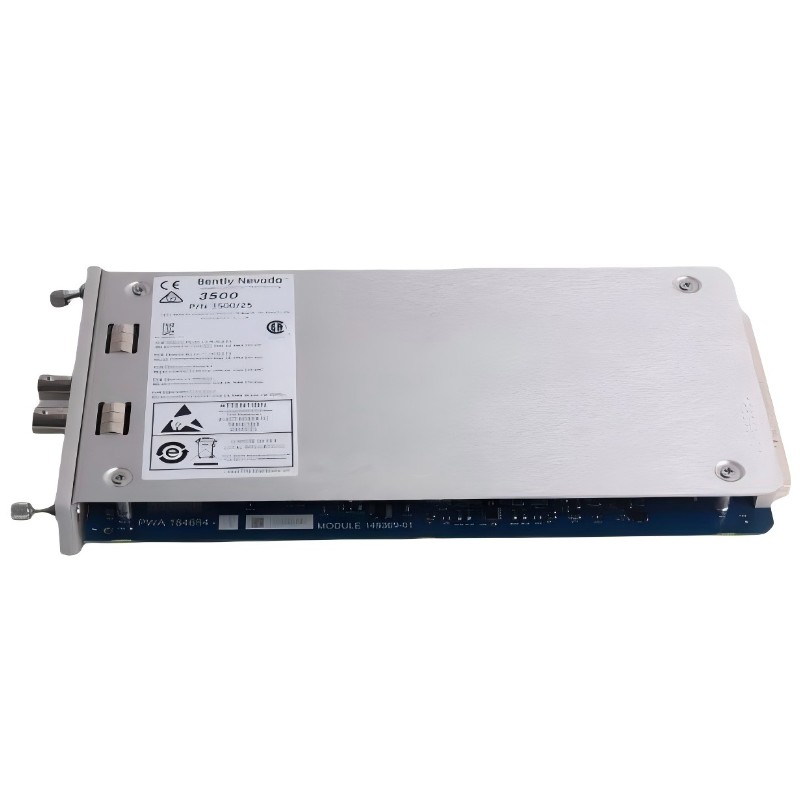

Bently Nevada 3500/25-02-01-CN Enhanced Bond Phase Module
Bently Nevada 3500/25-02-01-CN Enhanced Bond Phase Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/25-02-01-CN Product Origin:USA Product Dimensions:119.9 x 24.4 x 256.5 mm Product Weight:0.34 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/25-02-01-CN Enhanced Bond Phase Module is designed to provide precise phase reference signals for rotating machinery monitoring applications. It plays a key role in rotor dynamic analysis by delivering stable and accurate phase information used in vibration diagnostics and machinery protection systems.
Technical Specifications
Parameter
Specification
Model
3500/25-02-01-CN
Product Type
Enhanced Bond Phase Module
System Compatibility
Bently Nevada 3500 Series
Function
Phase signal generation and processing
Signal Type
Phase reference output
Dimensions
119.9 mm × 24.4 mm × 256.5 mm
Weight
0.34 kg
Installation Type
Rack-mounted module
Operating Environment
Industrial machinery monitoring systems
Recommended Related Models
Model Number
Product Name
3500/25-01-01
Keyphasor Module
3500/22-01-03-00
Transient Data Interface Module
3500/40M
Proximitor Monitor Module
3500/42M
Proximitor/Seismic Monitor Module
Popular Related Models
Model Number
Product Name
3500/05
Rack Interface Module
3500/20
System Rack Configuration Module
3500/15-01-02-01
Power Module
3500/32M
Relay Output Module
Applications
• Turbine phase reference monitoring
Provides accurate phase signal reference for turbine rotor dynamics analysis
• Compressor vibration phase alignment
Supports phase comparison in centrifugal and axial compressor monitoring systems
• Rotating machinery balance analysis
Enables precise detection of imbalance conditions through phase signal tracking
• Critical machinery diagnostics systems
Improves fault identification accuracy in complex rotating equipment
• Power generation monitoring systems
Supports stable phase reference signals in power plant protection systems
Key Advantages
• High-accuracy phase signal processing
Delivers precise and stable phase reference output for diagnostic use
• Enhanced signal stability
Maintains consistent performance under industrial electrical noise conditions
• Seamless integration with 3500 system
Fully compatible with Bently Nevada 3500 monitoring architecture
• Improved diagnostic capability
Enhances vibration analysis accuracy through reliable phase reference data
• Industrial-grade reliability
Designed for continuous operation in harsh industrial environments
Technical FAQs
1. What is the main function of this module?
It provides enhanced phase reference signals for machinery monitoring systems.
2. What systems is it designed for?
It is designed for the Bently Nevada 3500 monitoring platform.
3. What is a phase signal used for?
It is used to analyze rotational position and vibration phase relationships.
4. Can it improve vibration diagnostics?
Yes, it enhances accuracy in rotor dynamic analysis.
5. What equipment is it typically used with?
Turbines, compressors, pumps, and generators.
6. Does it operate continuously?
Yes, it is designed for 24/7 industrial operation.
7. Is it compatible with other 3500 modules?
Yes, it integrates directly into the 3500 system architecture.
8. What is the benefit of enhanced phase processing?
It improves accuracy of imbalance and misalignment detection.
9. Is it suitable for harsh environments?
Yes, it is designed for industrial conditions.
10. Does it require frequent calibration?
No, it is designed for stable long-term operation.
