Brand:Bently Nevada PLC Item No.:Bently Nevada 330104-19-23-50-02-05 Product Origin:USA Product Dimensions:230 mm Product Weight:0.50 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

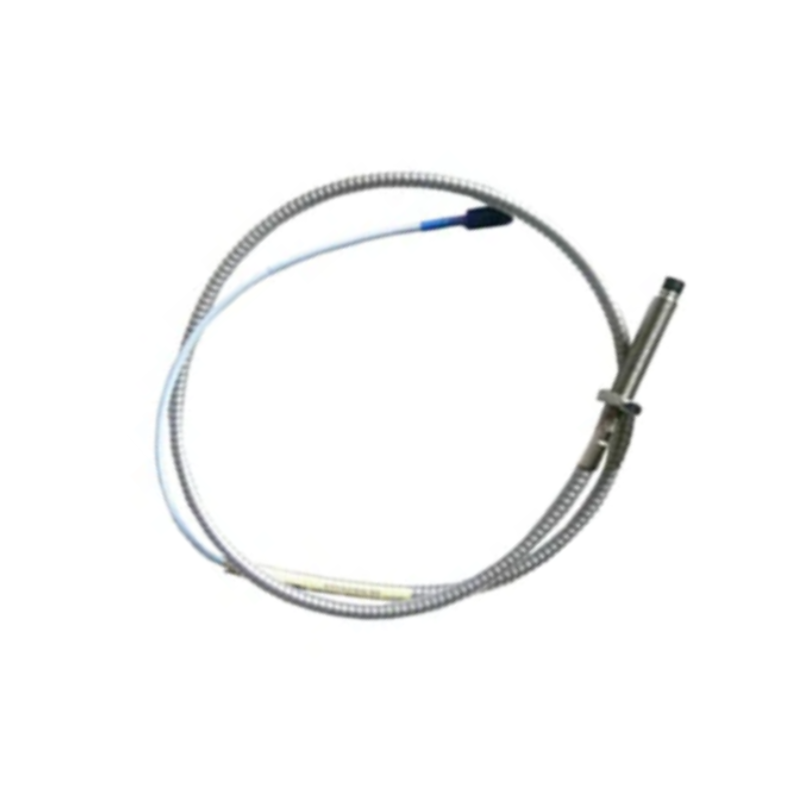

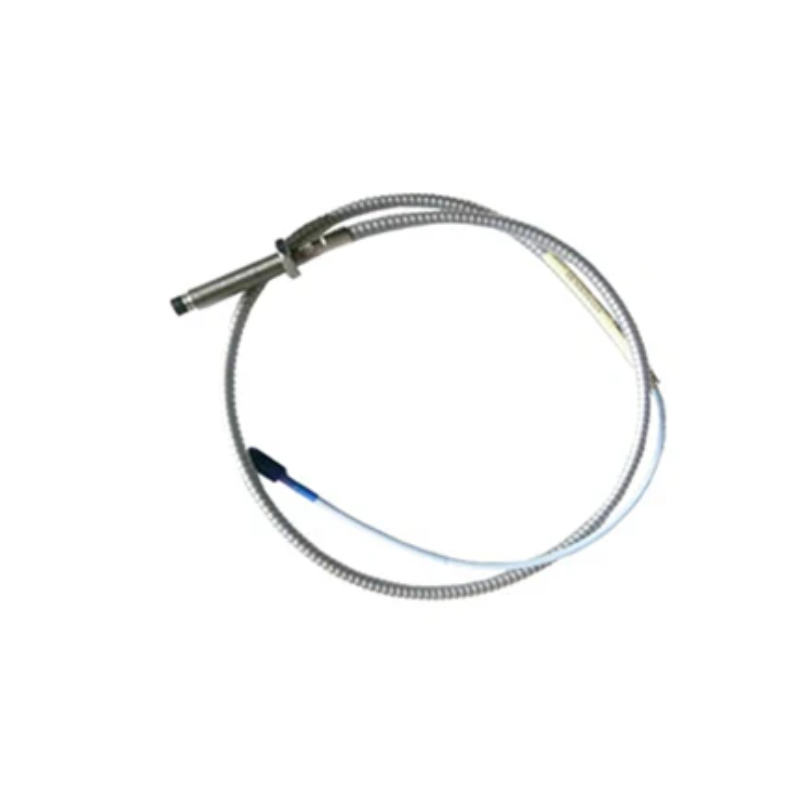

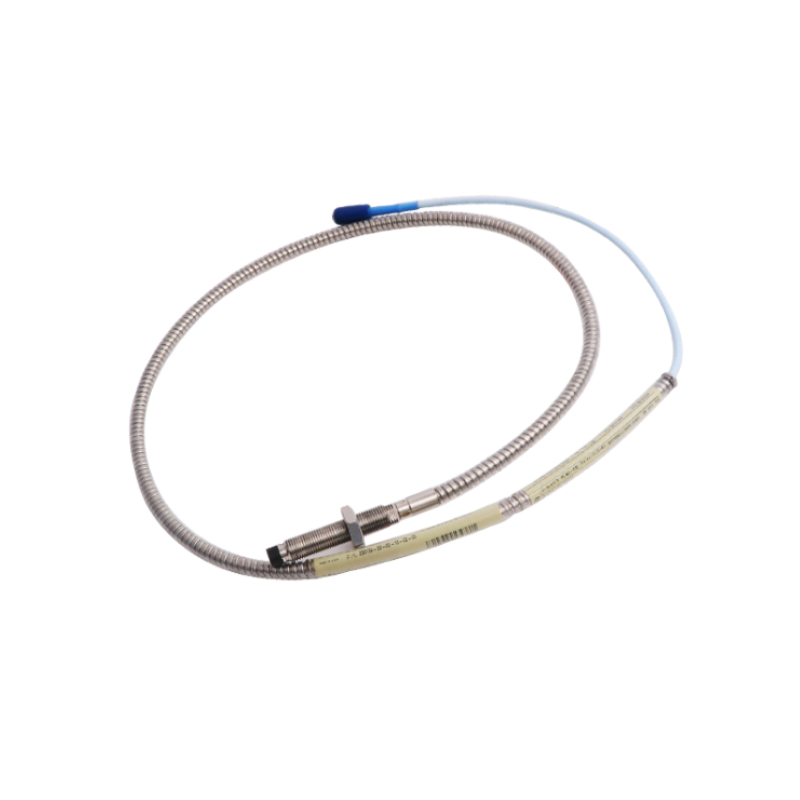

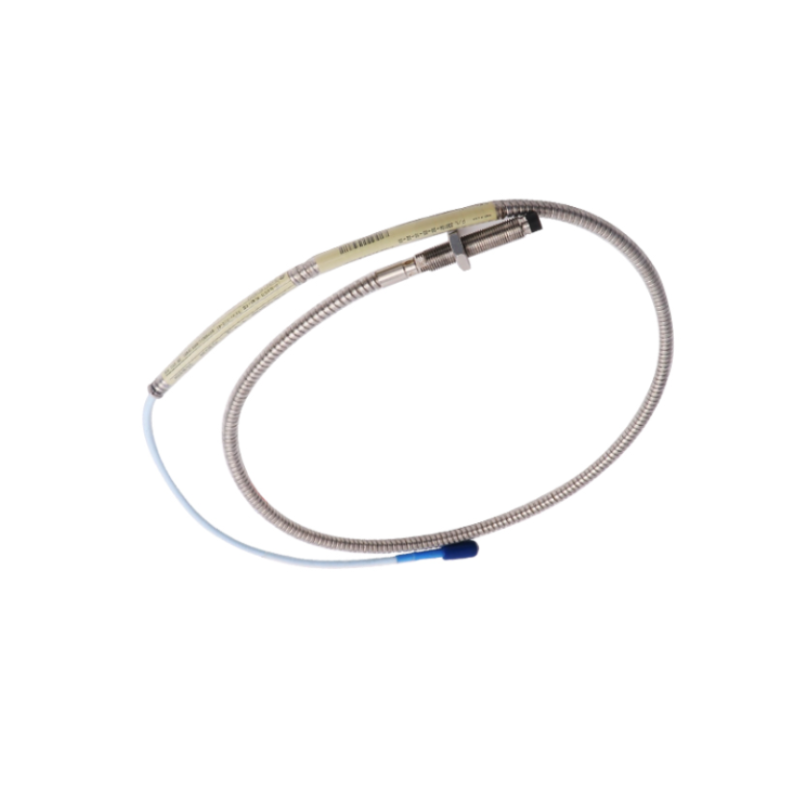

The Bently Nevada 330104-19-23-50-02-05 proximity probe is part of the 3300 XL 8 mm eddy-current proximity transducer system, designed for continuous, non-contact measurement of shaft vibration and radial displacement in rotating machinery.
It is widely used in industrial monitoring and protection systems for turbines, compressors, pumps, and generators. The probe provides stable signal output when paired with a Proximitor sensor and extension cable, forming a complete vibration measurement chain for condition monitoring applications.
This model is engineered for harsh industrial environments where reliability, long service life, and measurement consistency are critical.
Technical Specifications
Parameter
Specification
Manufacturer
Bently Nevada
Model
330104-19-23-50-02-05
Series
3300 XL 8 mm
Measurement Type
Eddy-current non-contact sensing
Application
Vibration & displacement monitoring
System Configuration
Probe + Proximitor + Cable
Output Signal
Linear analog voltage
Physical Dimensions & Weight
Probe Dimensions (Standard 3300 XL 8mm class reference)
Parameter
Specification
Probe Diameter
8 mm
Probe Body Length
~200–230 mm (configuration dependent)
Mounting Thread
M10 × 1
Cable Length Class
Extended configuration (varies by build)
System Dimensions (Installed Assembly Estimate)
Parameter
Specification
Total Assembly Length
~1.5 m – 5 m (probe + cable + extension dependent)
