Brand:Epro PLC Item No.:PR6424/113-000 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

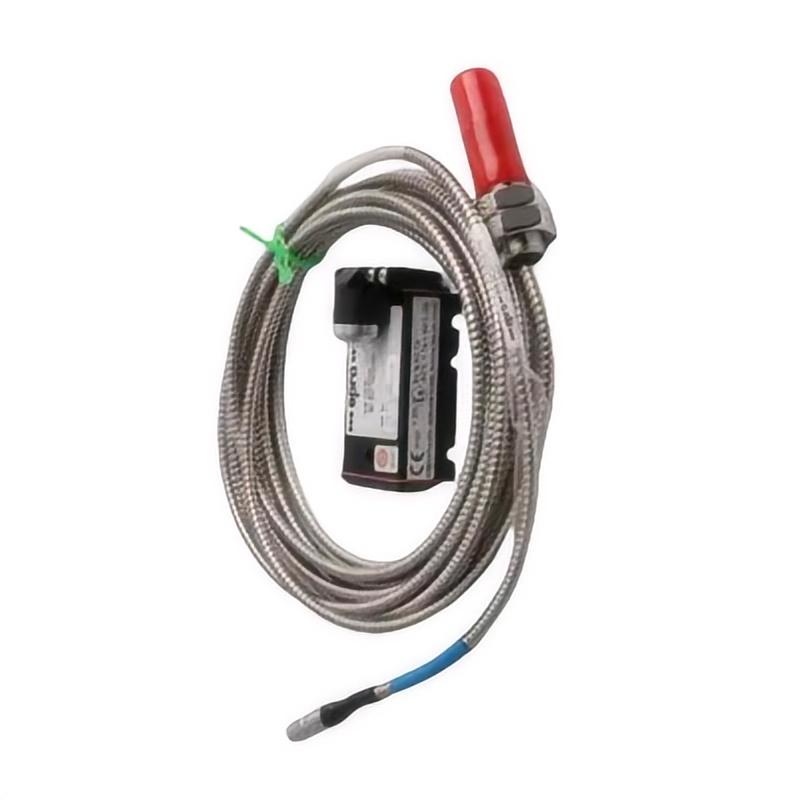

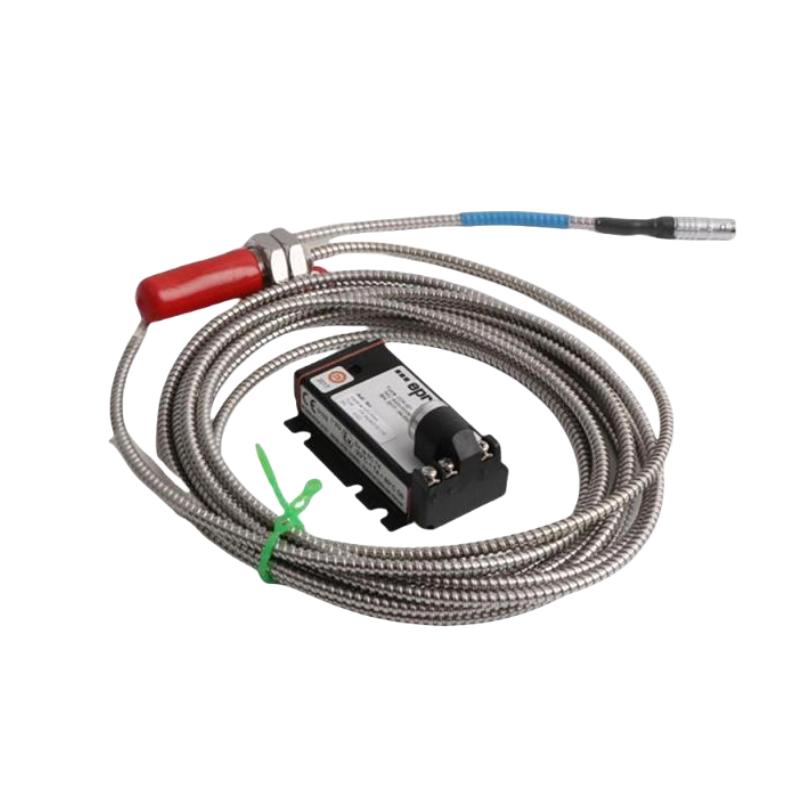

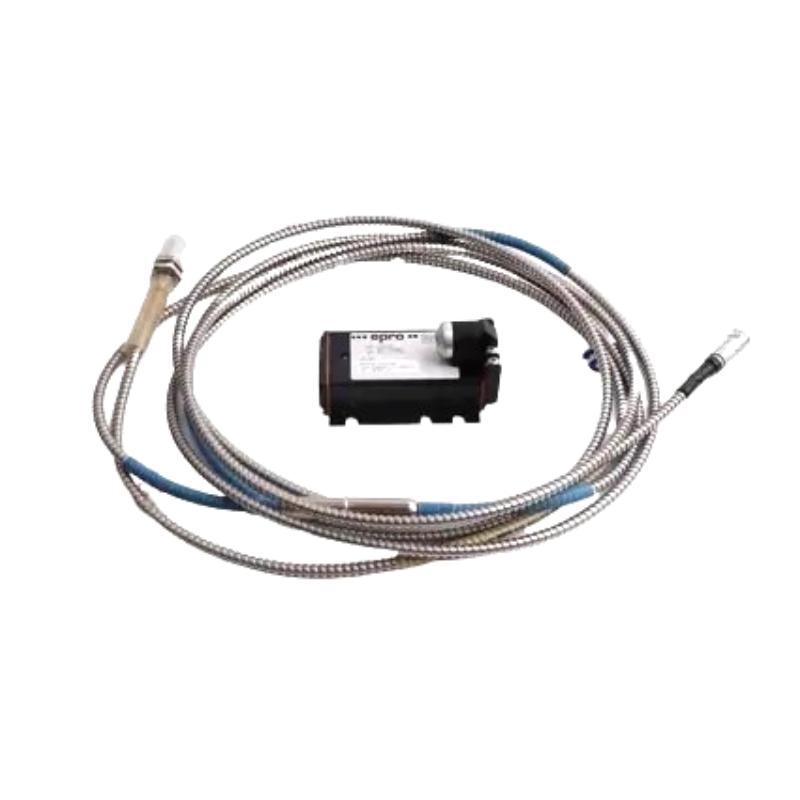

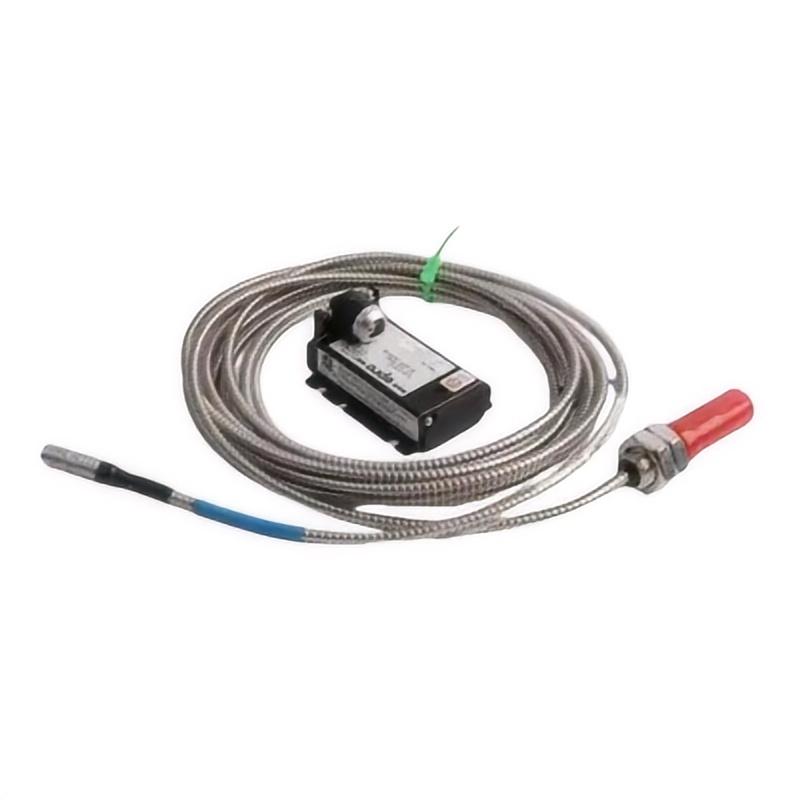

The Epro PR6424/113-000 is a 16mm eddy current proximity probe designed for precise shaft displacement measurement in high-performance rotating machinery. It is part of the PR6424 series, widely used in power generation and heavy industry for continuous condition monitoring and protection.
Using non-contact electromagnetic induction, the sensor provides accurate real-time displacement signals without mechanical wear, making it suitable for long-term deployment in turbines, compressors, and other mission-critical systems.
Technical Specifications
Parameter
Specification
Product Model
PR6424/113-000
Sensor Type
Eddy current non-contact probe
Sensor Head Diameter
16 mm
Measurement Type
Shaft displacement, vibration, position
Operating Principle
Electromagnetic induction
Shaft Compatibility
≥80 mm diameter
Output Type
Requires external CON signal converter
Operating Temperature
-35°C to +180°C
Shock & Vibration Resistance
Up to 5g @ 60 Hz
Linearity
±1.5%
Long-term Drift
<0.3%
Target Material
Ferromagnetic steel
Weight
0.2 kg / 0.44 lb
Applications
The Epro PR6424/113-000 16mm Eddy Current Sensor is designed for high-precision, non-contact measurement of shaft displacement and vibration in critical rotating machinery. It is widely used in industrial condition monitoring systems where long-term stability and measurement accuracy are essential.
Typical applications include:
Steam, gas, and hydro turbines
Centrifugal and axial compressors
Industrial pump and feedwater systems
Large industrial fans and blowers
Turbomachinery radial and axial vibration monitoring
Shaft eccentricity and position measurement
Speed and keyphasor-related monitoring systems
It is commonly deployed in API 670-compliant protection systems for continuous machinery health monitoring.
Advantages
Non-contact eddy current technology eliminates mechanical wear
High stability output suitable for continuous monitoring
Strong resistance to vibration, temperature variation, and harsh environments
High linearity for reliable diagnostic performance
Compatible with EPRO CON series signal converters
Suitable for both static and dynamic displacement measurement
Designed for heavy-duty turbomachinery applications
Stable long-term drift characteristics for predictive maintenance use
Technical FAQs
Q1: What does the PR6424/113-000 measure?
It measures shaft displacement, vibration, eccentricity, and axial/radial position.
Q2: What technology is used?
It uses eddy current non-contact sensing technology.
Q3: Does it require contact with the shaft?
No, it operates completely without physical contact.
Q4: What systems is it compatible with?
It is typically used with EPRO CON series signal converters such as CON021, CON031, or CON041.
Q5: What shaft size is required?
It is generally used on shafts ≥80 mm in diameter.
Q6: Can it operate in high-temperature environments?
Yes, it is designed for turbine-grade high-temperature conditions.
Q7: Is it suitable for continuous monitoring?
Yes, it supports 24/7 industrial condition monitoring.
Q8: Does it measure both static and dynamic signals?
Yes, it measures both static position and dynamic vibration.
Q9: Is it resistant to industrial vibration?
Yes, it is engineered for harsh industrial environments.
Q10: Does it require frequent calibration?
No, it has long-term stability with minimal drift.
