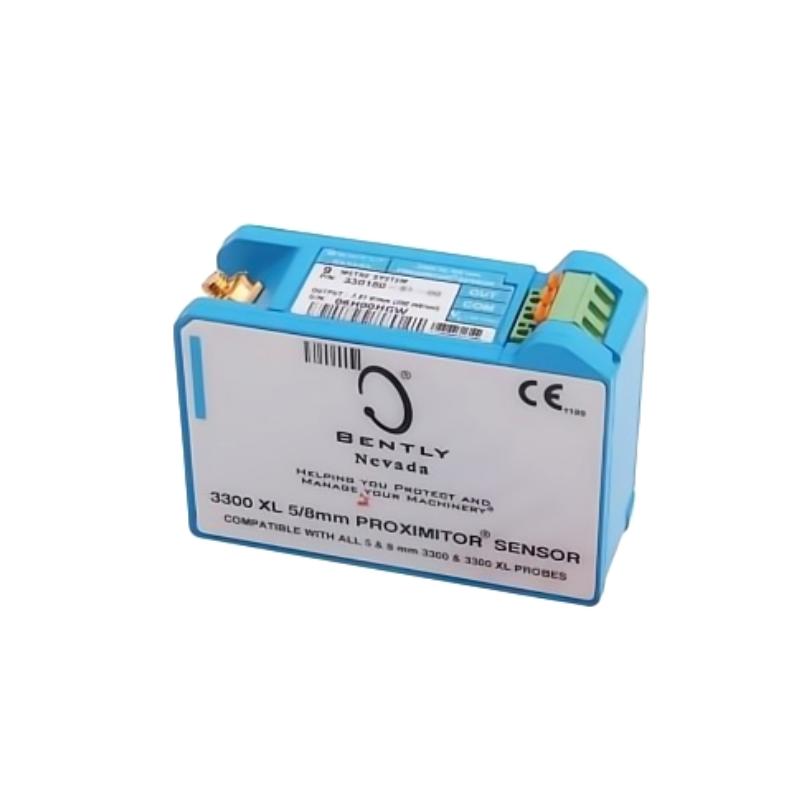

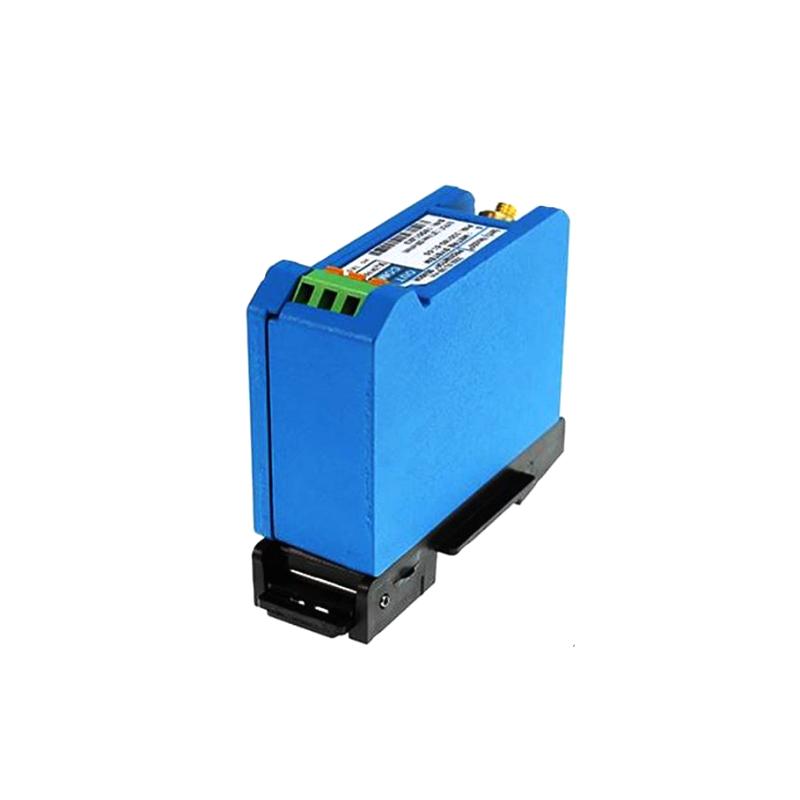

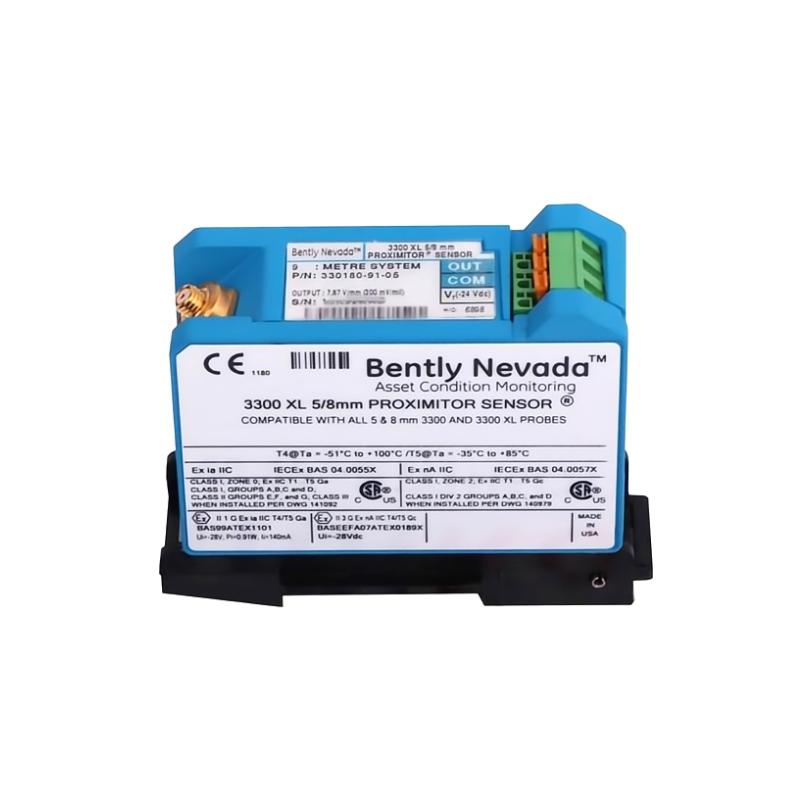

The Bently Nevada 330180-91-CN Proximitor Sensor Module is a component used in industrial machinery condition monitoring systems. It is designed to interface with proximity probe systems and convert raw eddy current signals into stable measurement outputs for vibration and shaft position monitoring.
This model is typically integrated into 3300 XL-based architectures and applied in rotating equipment monitoring systems across energy, petrochemical, and heavy industrial environments. It supports standardized installation within control cabinets and monitoring racks.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-91-CN |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe & extension cable series |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | DIN rail / panel installation |
| Material | Aluminum alloy housing |
| Operating Temperature | -51°C to +100°C |
| Storage Temperature | -51°C to +105°C |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 160 mm × 160 mm × 120 mm |
| Weight | Approx. 0.8 kg |
The enclosure design supports cabinet-level installation with sufficient space for wiring and thermal management in standard industrial panels.
Recommended Related Models
- 330104 Proximity Probe Series
- 330130 Extension Cable Series
- 330180 Series Proximitor Variants
- 3300 XL System Mounting Accessories
- 3500 Monitoring System Interface Modules
Popular Bently Nevada Models
Within industrial monitoring solutions from Bently Nevada, commonly used product families include:
- 330180 Series Proximitor Modules
- 330104 Proximity Probe Series
- 330130 Extension Cable Series
- 3500 Machinery Protection System Modules
- 3300 XL Monitoring System Components
These product lines are widely used in rotating machinery protection and condition monitoring applications.
