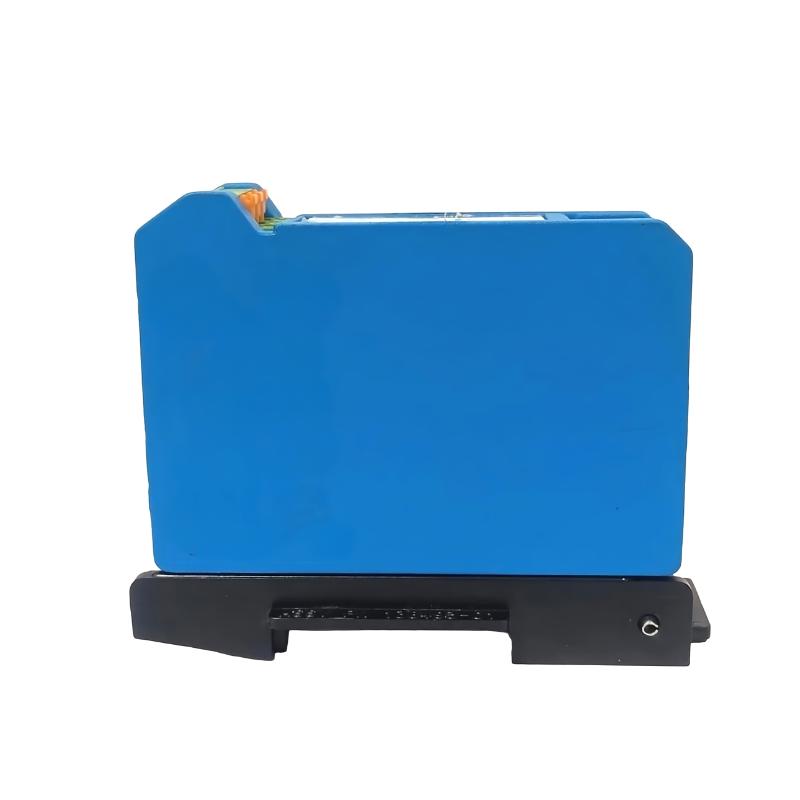

The Bently Nevada 330180-91-KZ Proximitor Sensor Module is a configuration variant within the 3300 XL proximity measurement system, designed for industrial machinery monitoring applications. It is used to condition eddy current probe signals and support vibration and shaft displacement measurement in rotating equipment.
This module is commonly integrated into monitoring systems used in power generation, oil & gas, and heavy industrial environments. It is designed for cabinet-mounted installation and works as part of a complete proximity transducer chain to ensure stable and repeatable measurement performance.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-91-KZ |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe & extension cable series |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | DIN rail / panel installation |
| Housing Material | Aluminum alloy |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 200 mm × 120 mm × 70 mm |
| Weight | Approx. 0.2 – 0.6 kg |
The compact structure supports efficient installation in industrial control cabinets with standardized wiring layouts and modular system design.
Recommended Related Models
- 330104 Proximity Probe Series
- 330130 Extension Cable Series

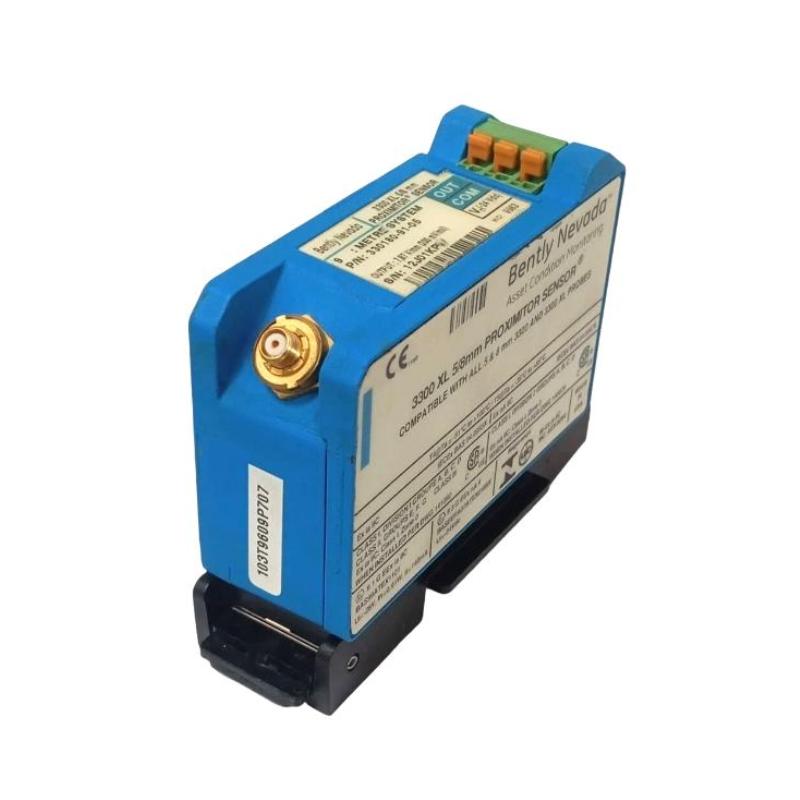

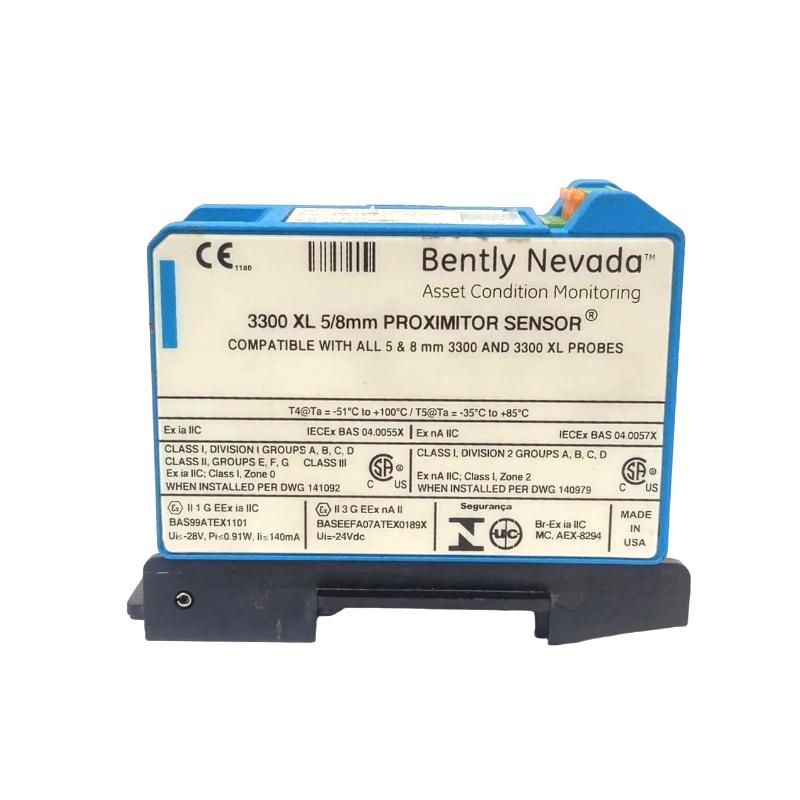

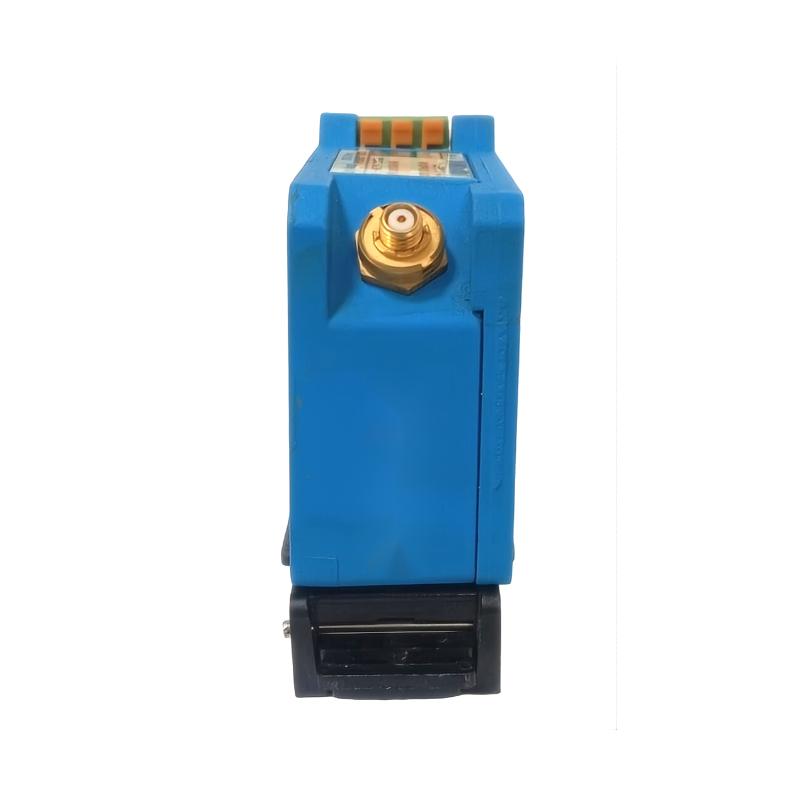

- 330180 Series Variants (91-CN / 91-BR / 91-RU / 91-00)
- 3300 XL System Mounting Accessories
- 3500 Monitoring System Interface Modules
Popular Bently Nevada Models
Within industrial monitoring solutions from Bently Nevada, commonly used product families include:
- 330180 Proximitor Sensor Series
- 330104 Proximity Probe Series
- 330130 Extension Cable Series
- 3500 Machinery Protection System Modules
- 3300 XL System Components
These product lines are widely used in rotating machinery condition monitoring and protection systems.
