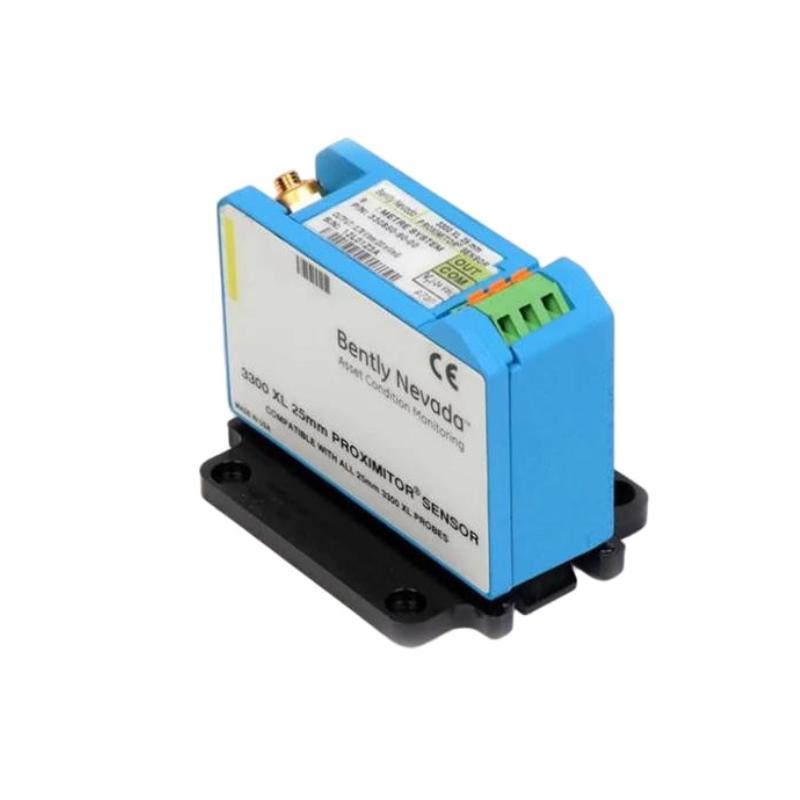

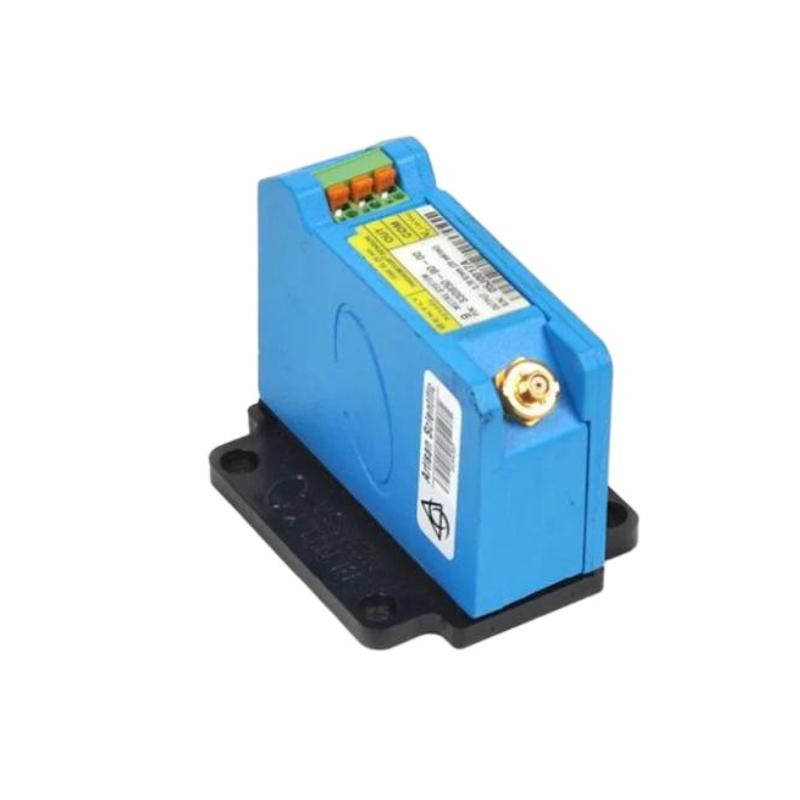

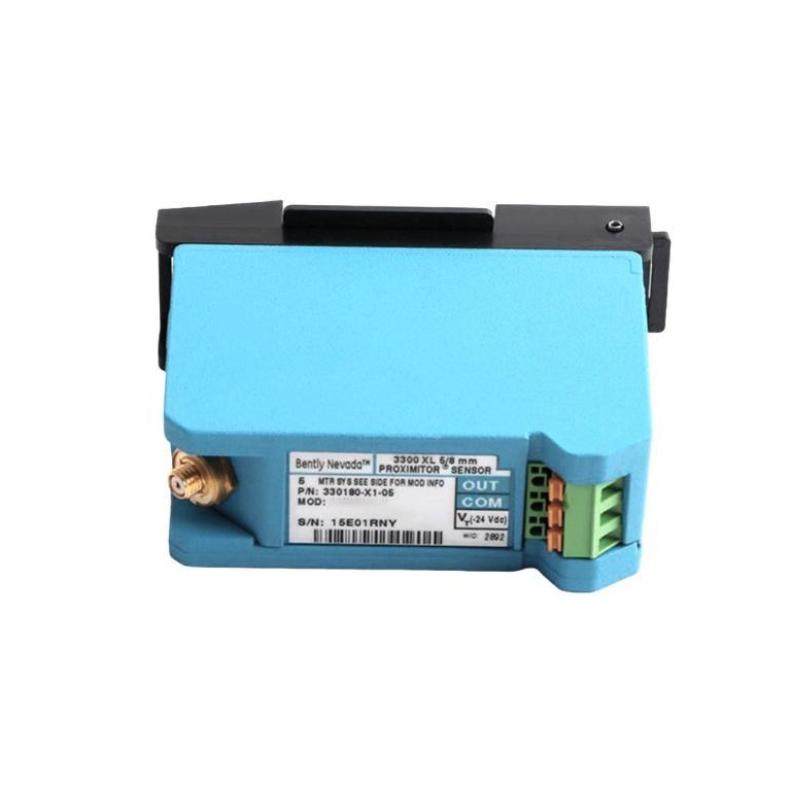

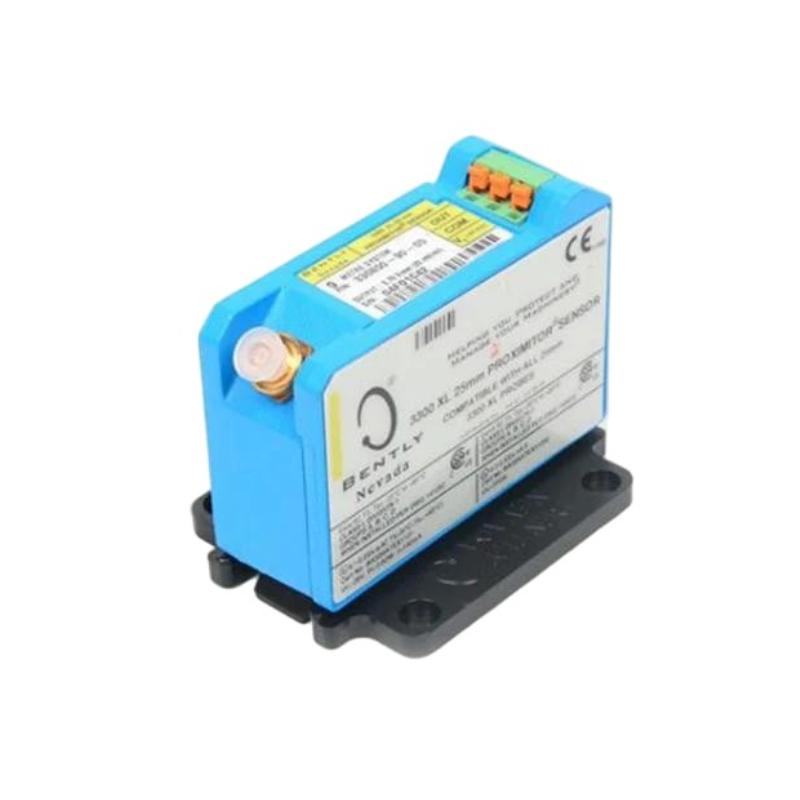

The Bently Nevada 330180-X0-05 / 143416-05 Proximitor Sensor Module is part of the 3300 XL proximity measurement system used in industrial machinery monitoring applications. It is designed to interface with eddy current proximity probes and convert displacement signals into stable output data for vibration and shaft position monitoring.
This module is commonly used in rotating equipment monitoring systems across power generation, oil & gas, petrochemical, and heavy industrial environments. It is intended for installation within control cabinets and rack-based monitoring systems as part of a complete measurement chain.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-X0-05 / 143416-05 |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe and extension cable system |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | Panel / rack installation |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | -40°C to +85°C (typical industrial range) |
| Power Supply | System-dependent DC supply |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 81 mm × 50 mm × 64 mm |
| Weight | Approx. 0.25 kg |
The compact design supports efficient installation in control cabinets while maintaining stable electrical performance in industrial environments.
