Brand:Bently Nevada PLC Item No.:330800-28-15-063-00-02 Product Origin:USA Product Dimensions:91.4 x 144.8 mm Product Weight:1.44 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

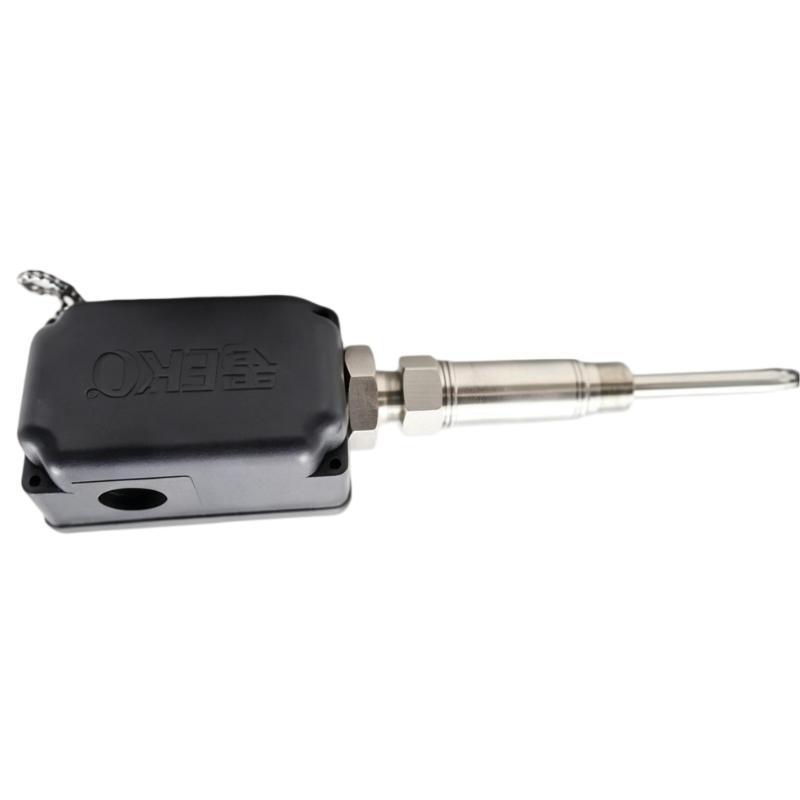

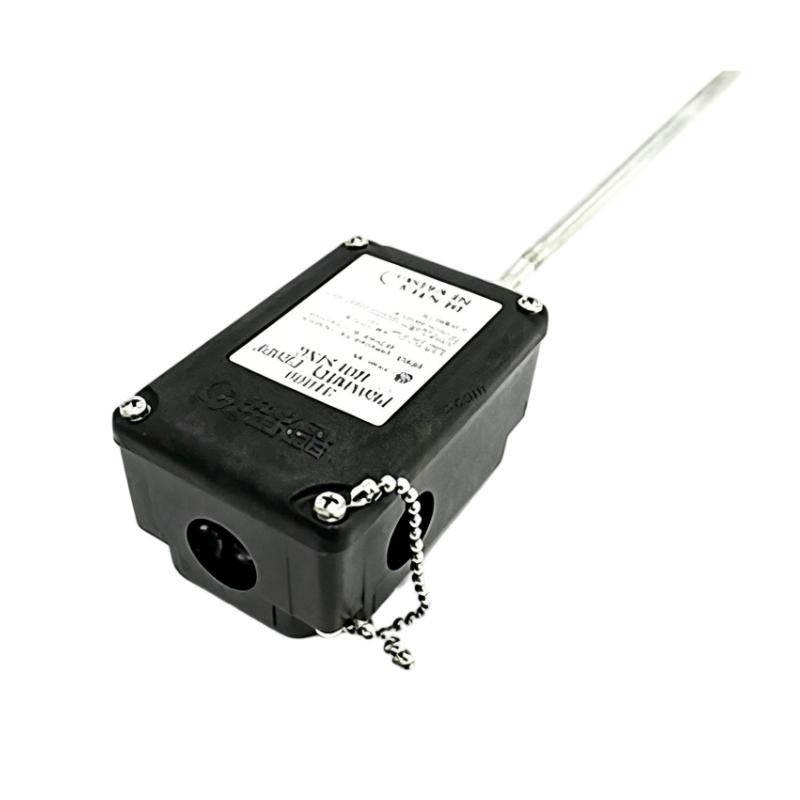

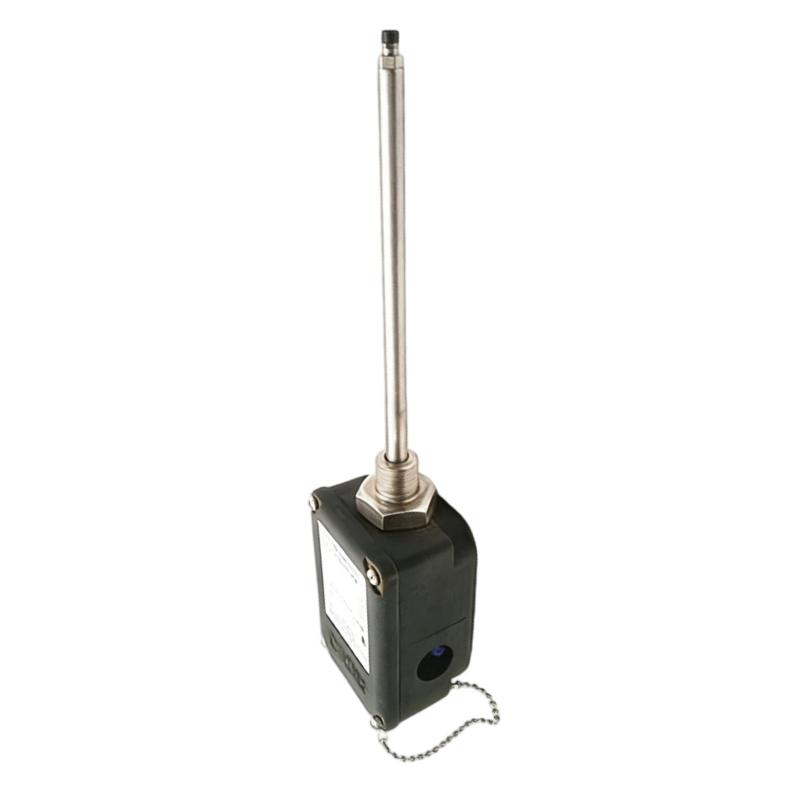

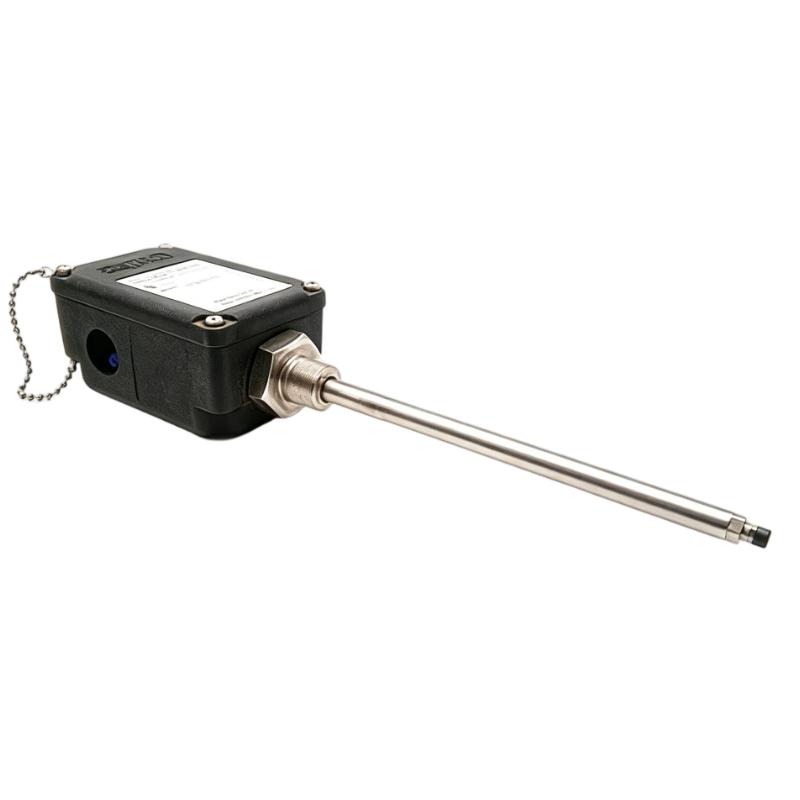

The Bently Nevada 330800-28-15-063-00-02 PROXPAC XL is an integrated proximity sensor assembly designed for industrial vibration and position monitoring. It combines the probe, housing, and signal conditioning electronics into a single compact system.
This design simplifies installation by removing the need for external extension cables and separate proximitor housings. It is widely used in turbines, compressors, pumps, and other rotating machinery where reliable monitoring is critical.
Technical Specifications
Parameter
Specification
Product Model
330800-28-15-063-00-02
Product Type
PROXPAC XL Proximity Sensor Assembly
System
Bently Nevada 3300 XL
Measurement Principle
Eddy current proximity system
Probe Type
8 mm integrated probe system
Housing Material
Industrial thermoplastic (PPS)
Dimensions
91.4 × 144.8 mm
Weight
1.44 kg
Configuration
Fully integrated (probe + sensor + housing)
Installation Type
Direct mount proximity assembly
Operating Environment
Industrial machinery monitoring
Recommended Related Models
Model
Product Name
Bently Nevada 330400-01-05
Accelerometer
Bently Nevada 330500-02-04
Velocity Sensor
Bently Nevada 330130-080-10-05
8 m Extension Cable
Bently Nevada 330180-X1-00
Preamplifier Sensor
Popular Related Models
Model
Product Name
Bently Nevada 3300 XL Proximity Probe System
Standard probe system
Bently Nevada 3300 XL Extension Cable Series
Signal transmission cables
Bently Nevada 3300 XL Proximitor Sensor Series
Signal conditioning modules
Bently Nevada 3500 Series Monitoring System
Machinery protection platform
Applications
• Used for shaft vibration and position monitoring in rotating machinery systems.
• Commonly applied in turbines, compressors, pumps, and large industrial drive equipment.
• Suitable for harsh industrial environments where sensor housing protection is required.
• Integrates probe, housing, and signal conditioning into a single measurement assembly.
• Used in condition monitoring systems for power generation, oil & gas, and heavy industry.
• Supports machinery protection systems for continuous vibration and displacement tracking.
• Ideal for installations requiring simplified wiring and reduced external components.
Key Advantages
• Fully integrated design combining probe, housing, and proximitor sensor in one unit.
• Eliminates the need for separate extension cables and external sensor housings.
• Provides stable and accurate signal output for vibration monitoring systems.
• Rugged IP-rated housing suitable for harsh industrial environments.
• Reduces installation complexity and overall system wiring effort.
• Designed for long-term operation in critical machinery protection applications.
• Improves reliability by minimizing external connection points.
Technical FAQs
1. What is the main function of this device?
It measures shaft vibration and position using an integrated proximity transducer system.
2. What makes PROXPAC XL different from standard probes?
It integrates the probe, housing, and proximitor sensor into a single assembly.
3. Does it require an extension cable?
No, the system design eliminates the need for external extension cables.
4. Where is it typically installed?
On rotating machinery such as turbines, compressors, and pumps.
5. Is it suitable for harsh environments?
Yes, it is designed for industrial-grade protection and durability.
6. What systems is it used with?
It is used in machinery protection and condition monitoring systems.
7. Can it be used for continuous monitoring?
Yes, it supports continuous industrial vibration monitoring.
8. Does it reduce installation complexity?
Yes, it significantly simplifies wiring and system configuration.
9. What type of measurement does it provide?
It provides shaft vibration and displacement measurement data.
10. Why is it widely used in industry?
Because it offers a compact, reliable, and integrated monitoring solution.
