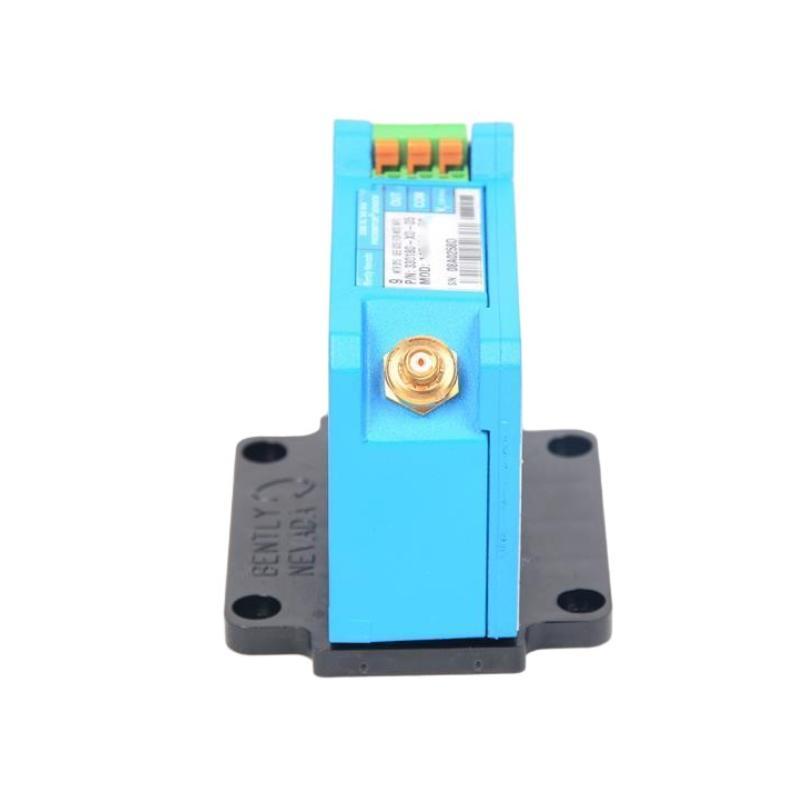

Bently Nevada 330180-X1-05 / 145004-67 Proximitor Sensor Module

Applications

• Turbine vibration monitoring systems
• Compressor condition monitoring systems
• Pump and motor vibration measurement
• Power generation equipment monitoring
• Oil & gas rotating machinery systems
• Industrial machinery diagnostics

Advantages

• Stable signal conditioning for proximity measurement systems
• Compatible with 3300 XL architecture
• Compact design for cabinet integration
• Suitable for continuous industrial operation
• Standardized system integration
• Reliable performance in industrial environments
• Supports structured monitoring applications

Technical FAQs

1. What is the function of this module?
It converts eddy current probe signals into conditioned outputs for vibration and displacement monitoring.

2. What system is it used with?
It is designed for the 3300 XL monitoring system.

3. What are the dimensions?
88 mm × 35 mm × 70 mm (L × W × H).

4. What is the weight?
Approximately 0.20 – 0.25 kg.

5. Where is it installed?
Inside industrial control cabinets or monitoring racks.

6. Which industries use it?
Power generation, oil & gas, petrochemical, and industrial manufacturing.

7. Is it suitable for continuous operation?
Yes, it is designed for continuous monitoring applications.

8. What type of output does it provide?
Conditioned analog displacement signal.

9. Does it operate alone?
No, it works as part of a complete proximity measurement system.

10. What does 145004-67 represent?
It is a configuration or ordering variant used within system-specific customization of the 3300 XL platform.
