Introduction

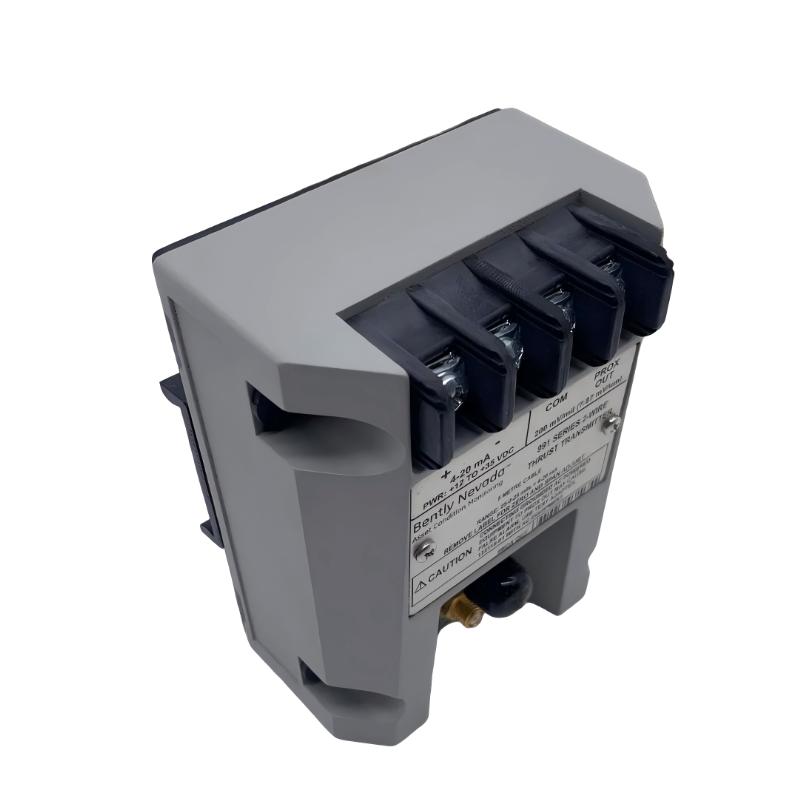

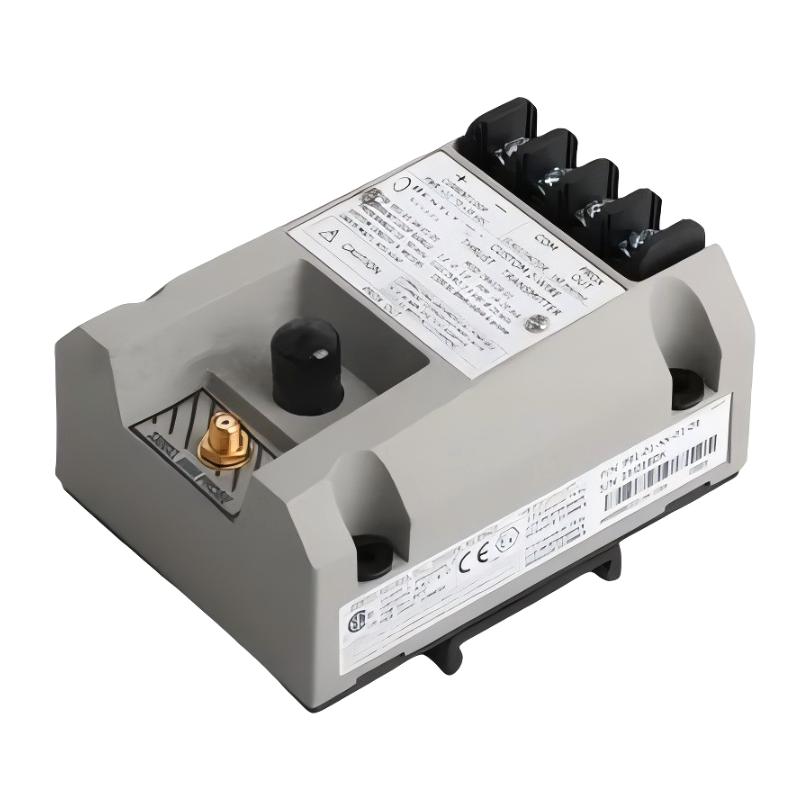

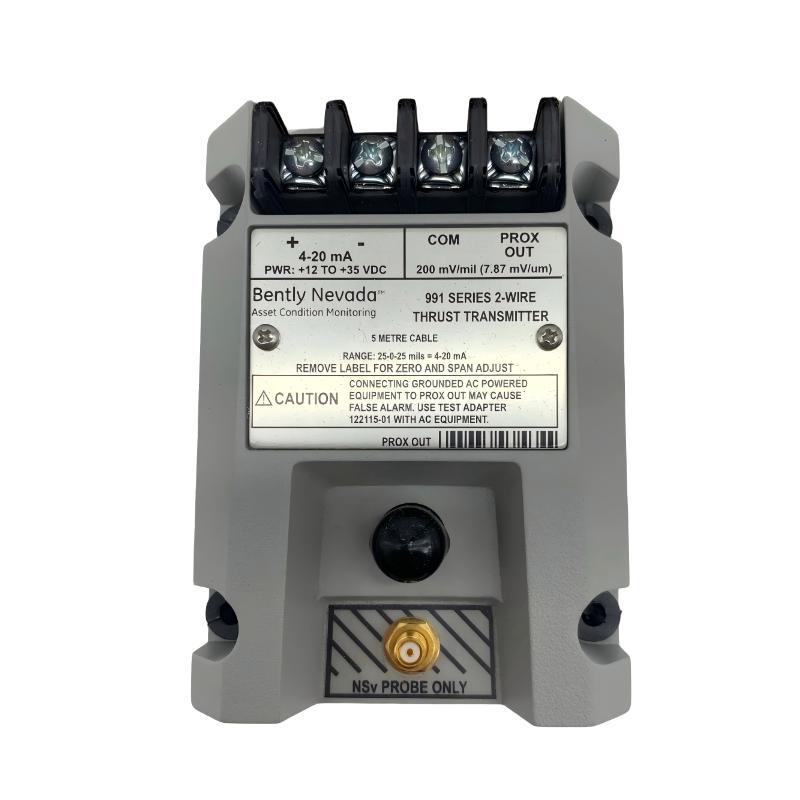

The 991-06-50-01-01 is a loop-powered thrust monitoring transmitter used for axial displacement measurement in rotating machinery. It converts proximity probe signals into a stable 4–20 mA output for integration into industrial control and protection systems.

This model is widely used in turbines, compressors, pumps, and other rotating equipment where axial shaft position must be continuously monitored to ensure mechanical stability and prevent failure conditions.

The 991 series is specifically designed for thrust monitoring applications, making it essential for critical machinery where axial movement directly impacts equipment reliability and operational safety.

Technical Specifications

Parameter	Value
Model	991-06-50-01-01
Product Type	Thrust Sensor / Transmitter
Output Signal	4–20 mA
Power Supply	12–35 VDC (loop powered)
Input Type	Bently Nevada proximity probe system
Operating Temperature	-40°C to +85°C
Measurement Type	Axial displacement / thrust monitoring
Accuracy	Manufacturer-defined system dependent
Response Time	Application dependent

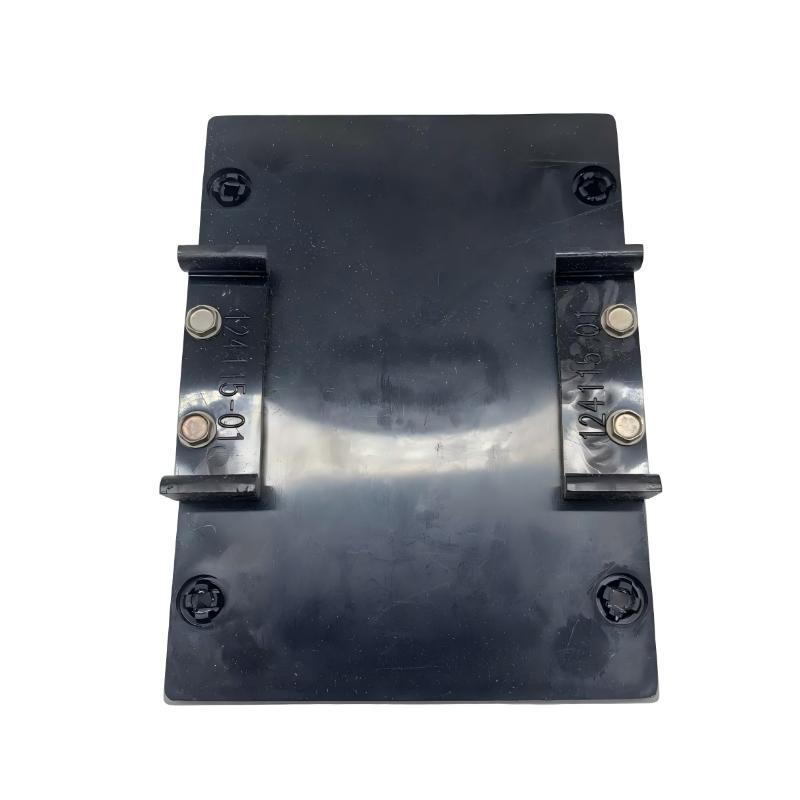

Mounting Type	DIN rail / panel mount
Dimensions	100.1 × 73.9 × 53.3 mm
Weight	0.43 kg (0.95 lb)

Recommended Related Models

Bently Nevada 991-01-XX-01-00 284318-01
Bently Nevada 991-01-XX-01-05 284318-01
Bently Nevada 991-01-XX-01-CN 284318-01
Bently Nevada 990-10-XX-01-00 283278-01
Bently Nevada 3300 NSv Proximity Probe System

Popular Related Models

991-01-XX-01-00
991-01-XX-01-05
991-01-XX-01-CN
990-08-XX-01-05
990-10-XX-01-05

Applications

The Bently Nevada 991-06-50-01-01 991 Thrust Sensor Module is designed for axial displacement (thrust position) monitoring in rotating machinery, providing stable signal conversion for industrial protection and condition monitoring systems.

Typical applications include:

Steam turbine thrust bearing position monitoring
Gas turbine axial displacement tracking
Centrifugal compressor thrust control systems
Industrial pump shaft axial movement supervision
Gearbox thrust load monitoring
Industrial fan rotor stability control
Critical rotating machinery protection systems
OEM condition monitoring solutions

Advantages

Dedicated axial thrust measurement for critical rotating equipment
Stable 4–20 mA output for PLC/DCS integration
Loop-powered 2-wire installation simplifies wiring
Integrated signal conditioning reduces external modules
Compatible with Bently Nevada proximity probe systems
Compact industrial-grade housing for control panel use
Built-in NOT OK diagnostic function for fault detection
Designed for continuous industrial monitoring environments

Technical FAQs

Q1: What is the main function of this sensor?
A1: It measures axial displacement (thrust position) in rotating machinery and converts it into a 4–20 mA output signal.

Q2: Is it loop-powered?
A2: Yes, it operates as a 2-wire loop-powered transmitter.

Q3: What output signal does it provide?
A3: It provides a standard 4–20 mA analog signal.

Q4: What type of machinery uses it?
A4: It is commonly used in turbines, compressors, pumps, motors, and fans.

Q5: Can it operate continuously?
A5: Yes, it is designed for 24/7 industrial monitoring applications.

Q6: Does it support fault diagnostics?
A6: Yes, it includes NOT OK signal functionality.

Q7: Is it suitable for harsh environments?
A7: Yes, it is designed for industrial vibration, temperature, and humidity conditions.

Q8: Does it require external signal conditioning?
A8: No, signal conditioning is fully integrated inside the device.

Q9: Can it connect directly to PLC/DCS systems?
A9: Yes, it connects directly via 4–20 mA input channels.

Q10: What is the difference between 991-06-50-01-00 and 991-06-50-01-01?
A10: The difference is typically related to configuration revision or minor OEM specification updates, while the functional structure remains the same thrust monitoring architecture.
