Brand:Bently Nevada PLC Item No.:991-06-50-01-05 Product Origin:USA Product Dimensions:100.1 x 73.9 x 53.3 mm Product Weight:0.43 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

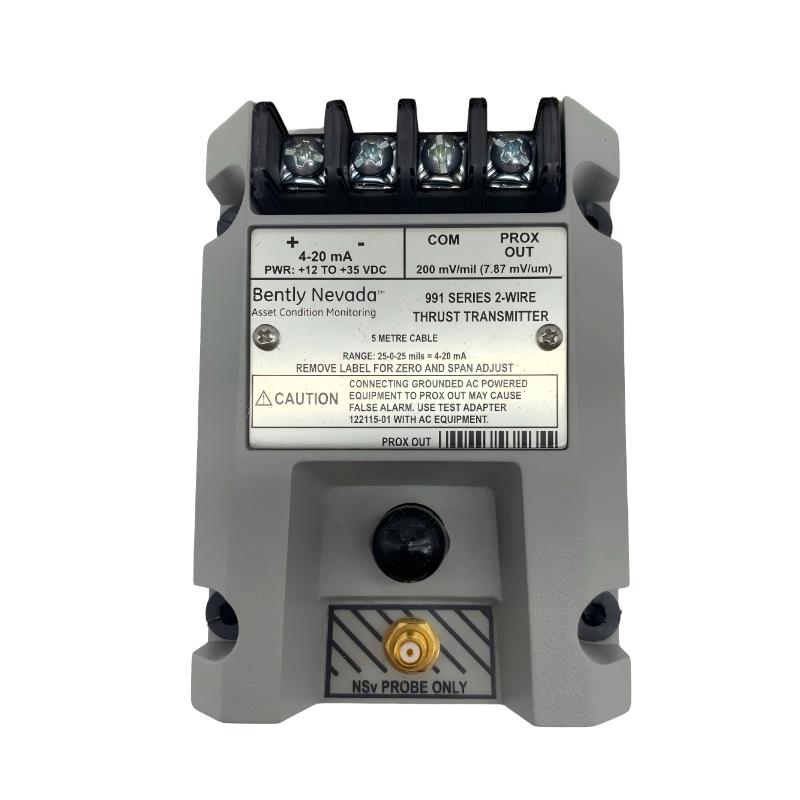

The 991-06-50-01-05 is a loop-powered thrust transmitter used for axial displacement monitoring in rotating machinery. It converts proximity probe signals into a stable 4–20 mA output for integration into industrial control and protection systems.
This model is widely used in turbines, compressors, pumps, and other rotating equipment where axial shaft position must be continuously monitored to ensure mechanical stability and prevent thrust-related failures.
The 991 series is specifically designed for thrust monitoring applications rather than radial vibration, making it a critical component in compressor and turbine protection strategies.
Technical Specifications
Parameter
Value
Model
991-06-50-01-05
Product Type
Thrust Sensor / Transmitter
Output Signal
4–20 mA
Power Supply
12–35 VDC (loop powered)
Input Type
Bently Nevada proximity probe system
Operating Temperature
-40°C to +85°C
Measurement Type
Axial displacement / thrust monitoring
Accuracy
Manufacturer system-dependent (typically ±1% FS)
Response Time
<10 ms (typical class)
Mounting Type
DIN rail / panel mount
Dimensions
100.1 × 73.9 × 53.3 mm
Weight
0.43 kg (0.95 lb)
Recommended Related Models
Bently Nevada 991-01-XX-01-00 284318-01
Bently Nevada 991-01-XX-01-05 284318-01
Bently Nevada 991-01-XX-01-CN 284318-01
Bently Nevada 991-06-50-01-00
Bently Nevada 990-10-XX-01-05
Popular Related Models
991-01-XX-01-00
991-01-XX-01-05
991-01-XX-01-CN
991-06-50-01-00
990-08-XX-01-05
Applications
The Bently Nevada 991-06-50-01-05 991 Thrust Sensor Module is designed for axial displacement (thrust position) monitoring in rotating machinery, delivering stable 4–20 mA output for industrial protection and condition monitoring systems.
Typical applications include:
Steam turbine thrust bearing position monitoring
Gas turbine axial displacement tracking
Centrifugal compressor thrust control systems
Industrial pump shaft axial movement supervision
Gearbox thrust load monitoring
Industrial fan rotor stability control
Critical rotating machinery protection systems
OEM machinery condition monitoring solutions
Advantages
High-precision axial thrust measurement for critical rotating equipment
Integrated signal conditioning reduces external modules
Compatible with Bently Nevada proximity probe systems
Rugged industrial-grade housing for harsh environments
Built-in NOT OK diagnostic function for fault detection
Designed for continuous industrial monitoring operation
Technical FAQs
Q1: What is the main function of this sensor?
A1: It measures axial displacement (thrust position) in rotating machinery and converts it into a 4–20 mA output signal.
Q2: Is it loop-powered?
A2: Yes, it operates as a 2-wire loop-powered transmitter.
Q3: What output signal does it provide?
A3: It provides a standard 4–20 mA analog signal.
Q4: What type of machinery uses it?
A4: It is commonly used in turbines, compressors, pumps, motors, and fans.
Q5: Can it operate continuously?
A5: Yes, it is designed for 24/7 industrial monitoring.
Q6: Does it include diagnostics?
A6: Yes, it includes NOT OK signal and self-diagnostic functionality.
Q7: Is it suitable for harsh environments?
A7: Yes, it is designed for vibration, humidity, and temperature stress conditions.
Q8: Does it require external signal conditioning?
A8: No, signal conditioning is fully integrated inside the device.
Q9: Can it connect directly to PLC/DCS systems?
A9: Yes, it integrates directly via 4–20 mA input channels.
Q10: What is the difference between 991-06-50-01-05 and other 991 variants?
A10: The “-06-50-01-05” configuration defines the measurement range, system length, mounting style, and approval option, while keeping the same thrust monitoring principle.
