Brand:Bently Nevada PLC Item No.:Bently Nevada 330180-X1-CN 143416-42 Product Origin:USA Product Dimensions:88 × 36 × 71 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

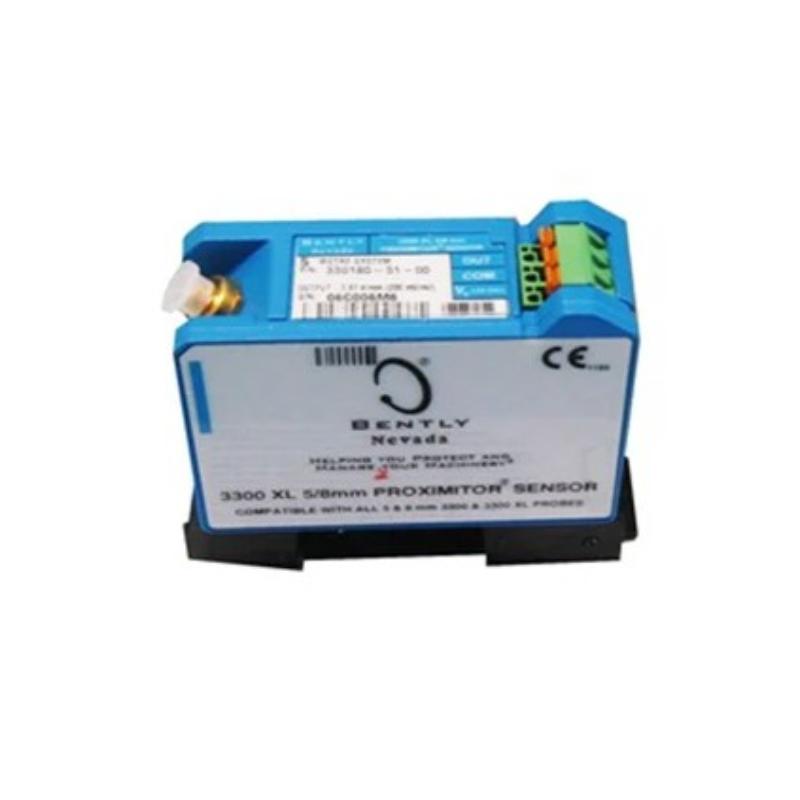

The Bently Nevada 330180-X1-CN 143416-42 Proximitor Sensor is part of the 3300 XL proximity transducer system, designed for high-precision monitoring of vibration, shaft position, and displacement in rotating machinery.
It is used in combination with proximity probes and extension cables to convert eddy current signals into stable analog outputs for condition monitoring systems. This enables continuous real-time protection of critical assets such as turbines, compressors, and industrial pumps.
The 143416-42 modification code represents a configuration-specific variant within the 330180 platform, typically related to regional certification, assembly variation, or system integration requirements.
Technical Specifications
Specification
Details
Brand
Bently Nevada
Series
3300 XL
Model
330180-X1-CN
Modification
143416-42
Type
Proximitor Sensor / Signal Conditioning Module
Measurement System
Eddy current non-contact transducer system
Function
Vibration / shaft position / displacement monitoring
Operating Voltage
10–30 VDC
Output Signal
Linear analog voltage proportional to gap distance
System Compatibility
3300 XL probe & extension cable system
Application
Machinery protection and condition monitoring
Physical Dimensions & Weight
Parameter
Value
Size (L × W × H)
88 × 36 × 71 mm
Weight
0.20–0.25 kg
Recommended Related Models
330103 Proximity Probe
330104 Proximity Probe
330130 Extension Cable
330180-X1-00 Proximitor Sensor
330780 Vibration Monitor Module
3500/40M Proximitor Monitor
3500/42M Vibration Monitoring Module
3500/15 Power Supply Module
Popular Bently Nevada Monitoring Systems
3300 XL Proximitor Sensor Series
3300 XL Proximity Probe Series
330130 Extension Cable System
3500 Machinery Protection System
3500/42M Vibration Monitoring Module
3500/40M Monitoring Modules
3500/05 Rack Interface Module
1900/65A General Purpose Monitor
Industrial Applications
This module is widely used in critical rotating machinery monitoring systems where continuous accuracy and reliability are essential.
Typical applications include:
Steam turbine vibration monitoring
Gas turbine condition monitoring
Centrifugal compressor protection
Industrial pump vibration analysis
Motor shaft displacement tracking
Petrochemical processing systems
Offshore oil & gas platforms
Power generation facilities
Steel and heavy industrial equipment
Marine propulsion systems
Key Advantages
High-precision non-contact eddy current measurement
Stable analog signal output for monitoring systems
Strong resistance to electromagnetic interference
Designed for continuous 24/7 operation
Compatible with 3300 XL architecture
Supports predictive maintenance strategies
Proven industrial reliability in harsh environments
Long service life with minimal maintenance
Widely used in global rotating machinery systems
Stable performance under vibration and temperature variation
Technical FAQs
Q1: What is the function of this sensor?
It converts eddy current probe signals into proportional voltage for vibration and displacement monitoring.
Q2: Is it a contact sensor?
No, it is a non-contact eddy current proximity measurement system.
Q3: What is the operating voltage range?
10–30 VDC.
Q4: What systems is it compatible with?
Bently Nevada 3300 XL monitoring systems.
Q5: What is its main application?
Machinery protection and condition monitoring of rotating equipment.
Q6: What are its dimensions?
88 × 36 × 71 mm (L × W × H).
Q7: What is its weight?
Approximately 0.20–0.25 kg.
Q8: Where is it commonly used?
Power plants, oil & gas, petrochemical, and heavy industry.
Q9: What does 143416-42 mean?
It is a configuration or production variant identifier within the 330180 platform.
Q10: Why is this module widely used?
Because it provides stable, accurate, and long-term machinery condition monitoring.
