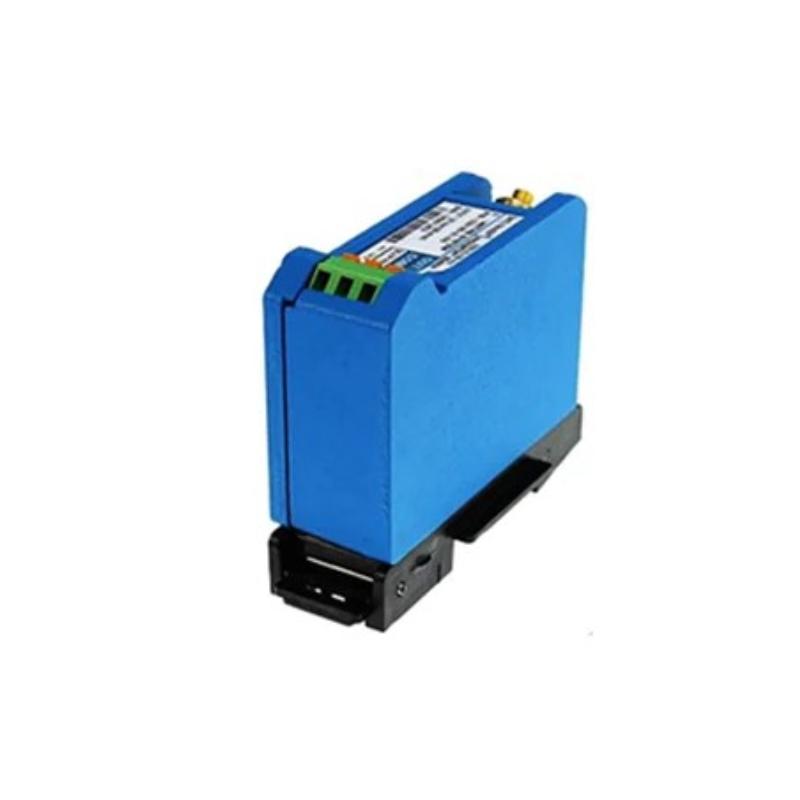

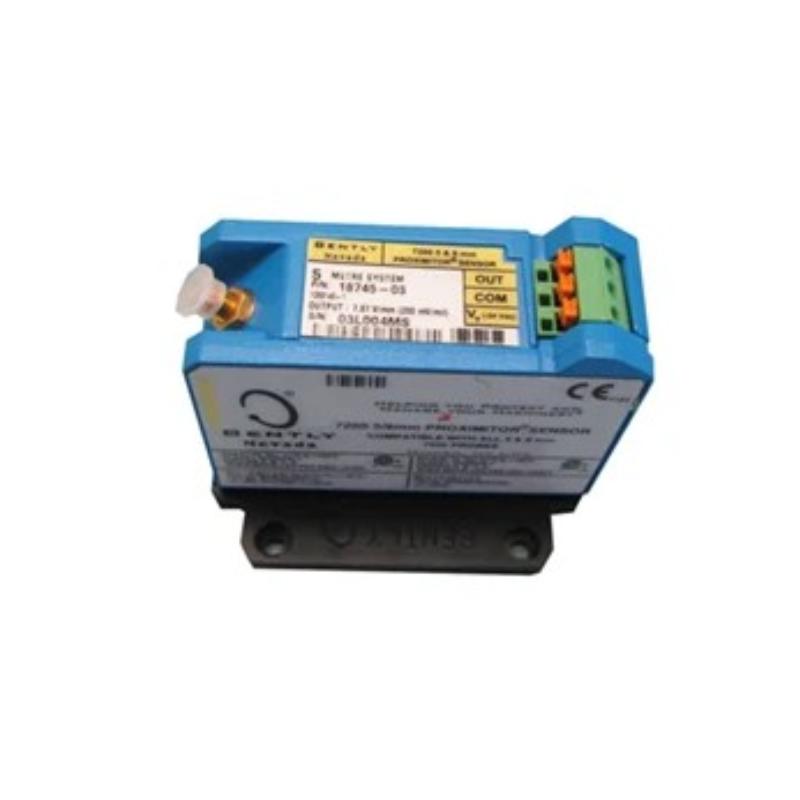

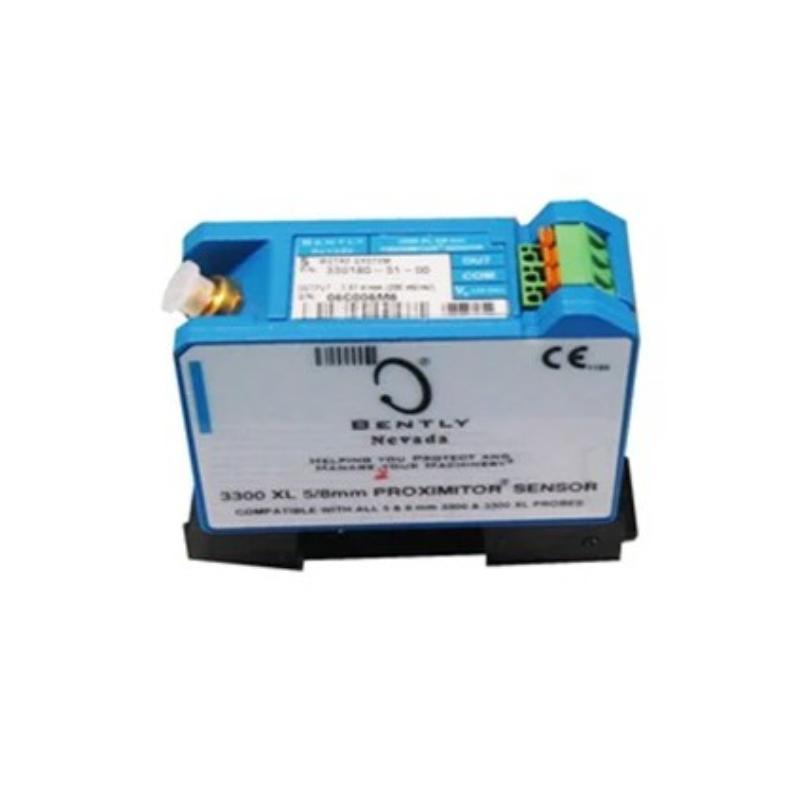

The Bently Nevada 330180-X2-00 181634-02 Proximitor Sensor is part of the 3300 XL proximity transducer system, designed for continuous measurement of vibration, shaft displacement, and rotor position in critical rotating machinery.
It works together with eddy current proximity probes and extension cables to convert gap variation into stable analog signals, which are then used by machinery protection and condition monitoring systems. This enables real-time tracking of equipment health in turbines, compressors, pumps, and other high-value rotating assets in industrial environments.
The 181634-02 modification code represents a configuration-specific variant within the 330180 platform, typically related to assembly revision, system calibration, or application-specific integration requirements.
Based on verified 3300 XL system documentation and industrial catalog data, the 3300 XL series is designed for high stability, wide temperature tolerance, and compliance with industrial vibration monitoring standards for rotating machinery protection.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330180-X2-00 |
| Modification | 181634-02 |
| Type | Proximitor Sensor / Signal Conditioning Module |
| Measurement System | Eddy current non-contact transducer system |
| Function | Vibration / shaft position / displacement monitoring |
| Operating Voltage | 10–30 VDC |
| Output Signal | Linear analog voltage proportional to gap distance |
| System Compatibility | 3300 XL probe & extension cable system |
| Application | Machinery protection and condition monitoring |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Size (L × W × H) | 88 × 36 × 71 mm |
| Weight | 0.20–0.25 kg |
