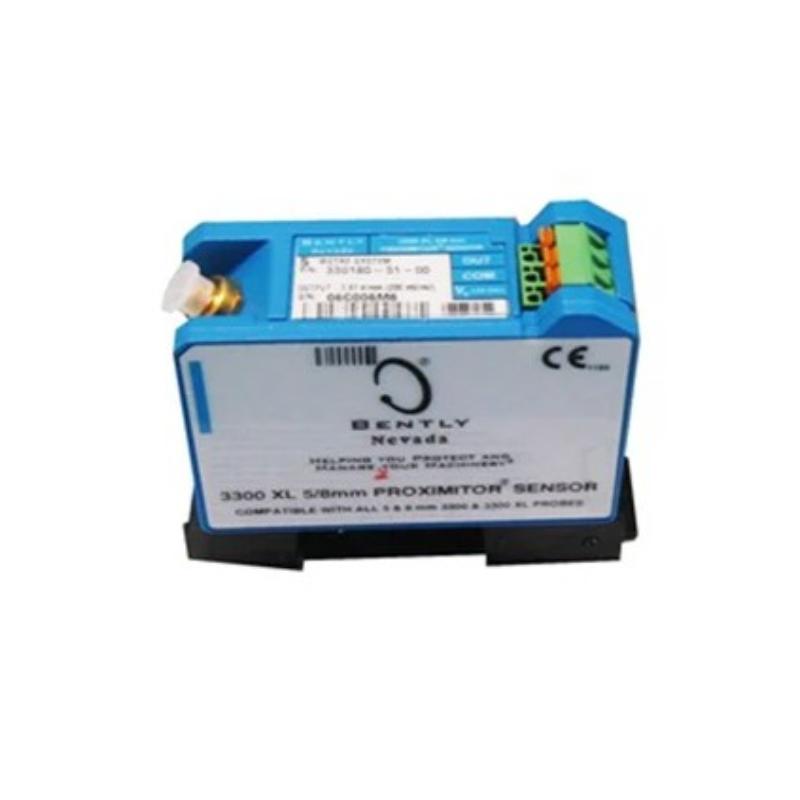

The Bently Nevada 330180-X2-05 181634-02 Proximitor Sensor is part of the 3300 XL proximity transducer system used for continuous measurement of vibration, shaft displacement, and rotor position in critical rotating machinery.
It works with proximity probes and extension cables to convert eddy current gap variations into stable analog voltage signals. These signals are then used by machinery protection and condition monitoring systems to support real-time diagnostics and predictive maintenance in turbines, compressors, pumps, and other rotating equipment.
The 3300 XL 8 mm system is widely adopted in industrial environments due to its high accuracy, strong electromagnetic interference resistance, and compliance with API 670 standards for mechanical vibration monitoring applications.
The 181634-02 modification code represents a configuration-specific variant within the 330180 platform, typically related to assembly revision or system integration requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330180-X2-05 |
| Modification | 181634-02 |
| Type | Proximitor Sensor / Signal Conditioning Module |
| Measurement System | Eddy current non-contact transducer system |
| Function | Vibration / shaft position / displacement monitoring |
| Operating Voltage | 10–30 VDC |
| Output Signal | Linear analog voltage proportional to gap distance |
| System Compatibility | 3300 XL probe & extension cable system |
| Application | Machinery protection and condition monitoring |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Size (L × W × H) | 88 × 36 × 71 mm |
| Weight | 0.20–0.25 kg |
