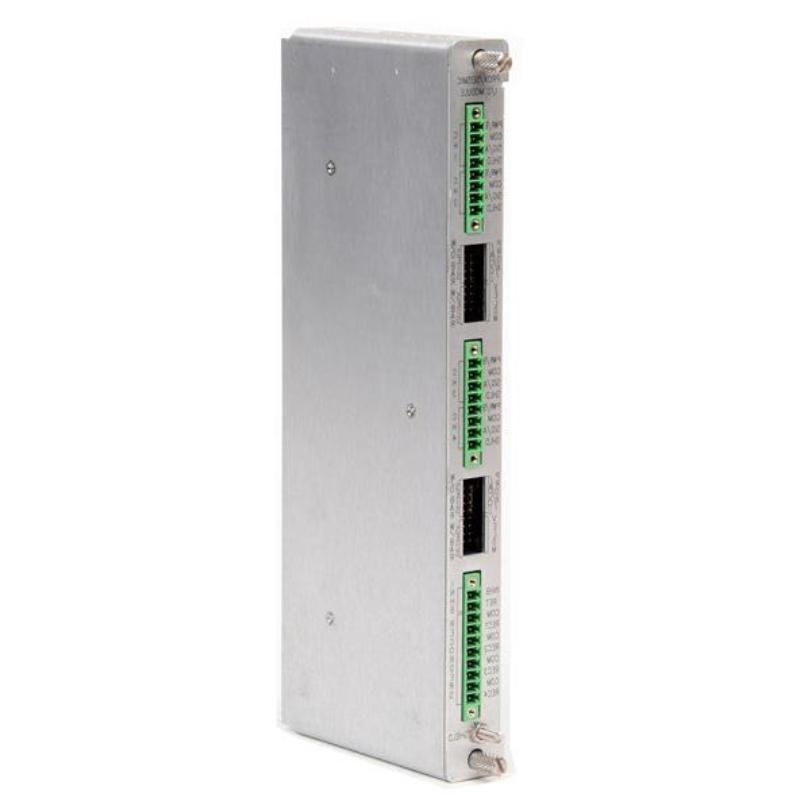

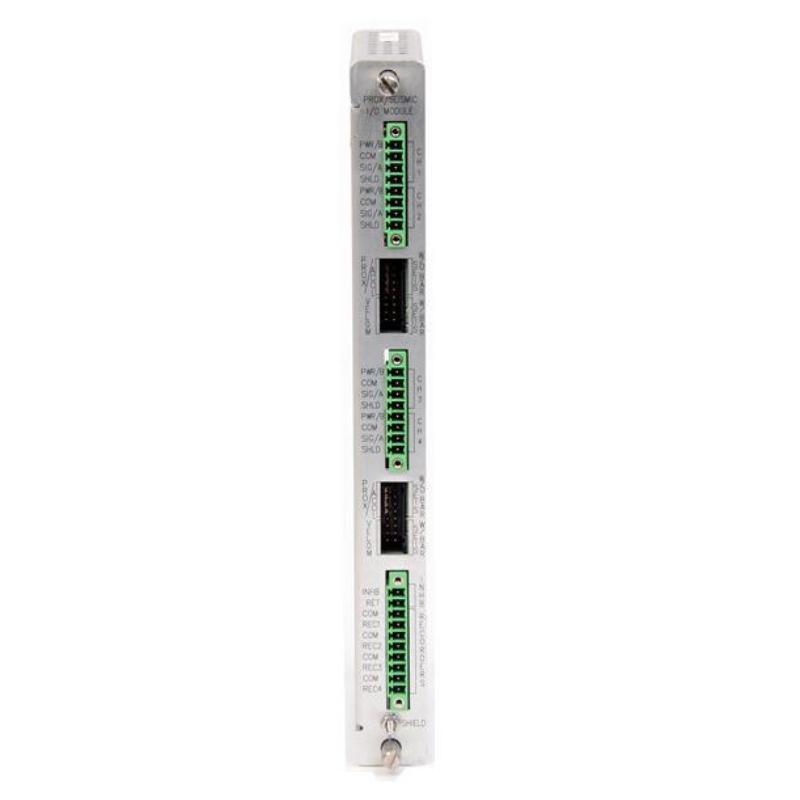

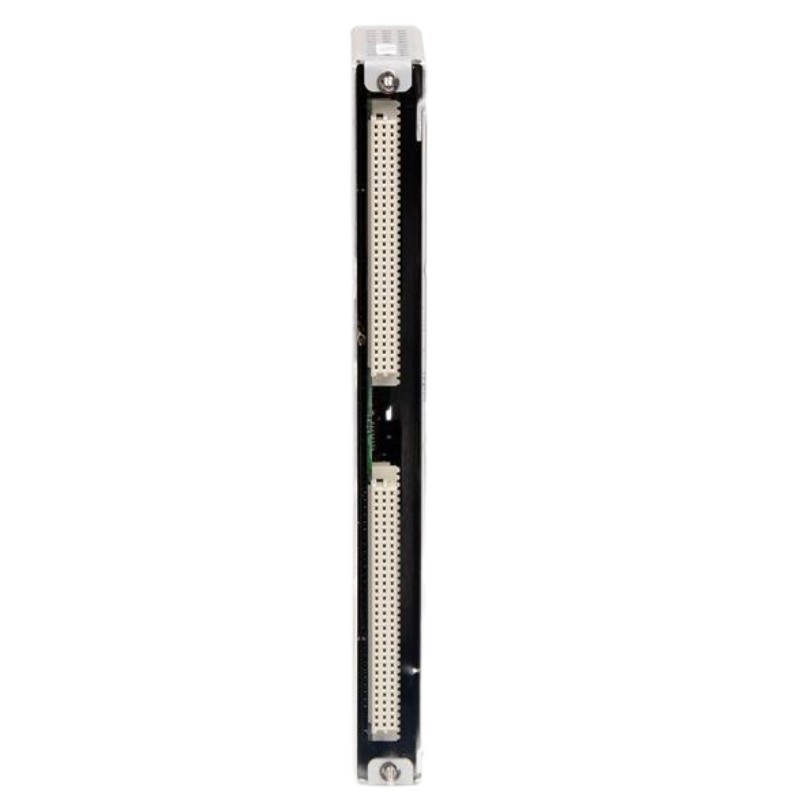

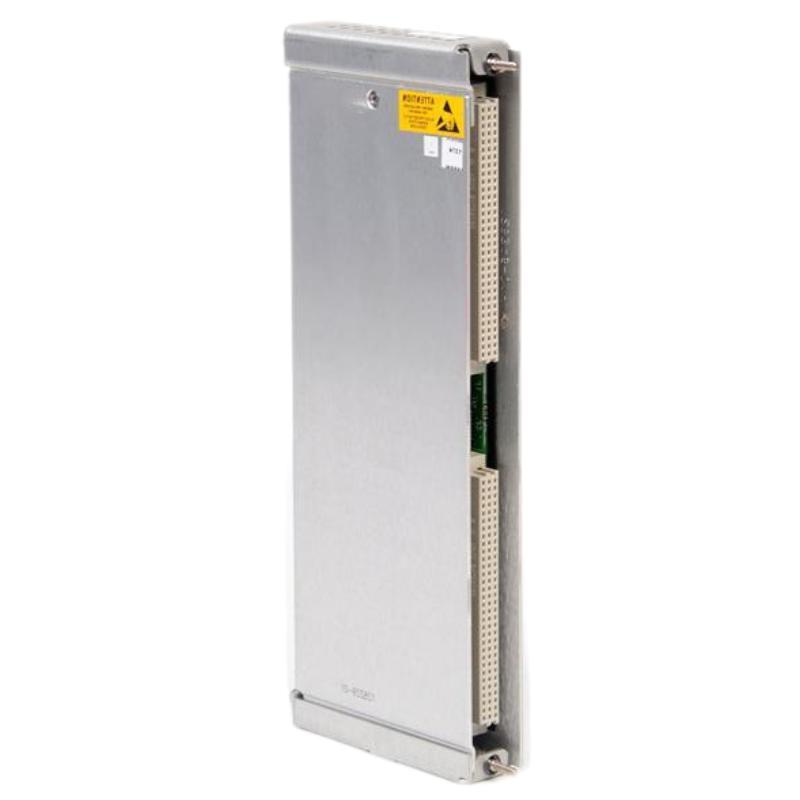

Bently Nevada 3500/40-01-00 125680-01 3500/40M Preamplifier Monitor

Applications

• Used in 3500 rack-based machinery protection systems for vibration and position monitoring.

• Applied in turbines, compressors, pumps, and other rotating equipment in power generation plants.

• Common in oil & gas and petrochemical facilities for continuous condition monitoring of critical assets.

• Processes signals from proximity transducers to support machinery protection logic.

• Used where multi-channel monitoring and alarm handling are required in industrial environments.

Key Advantages

• 4-channel architecture supports flexible configuration for multiple measurement types.

• Integrates signal conditioning and alarm logic in a single monitoring module.

• Supports radial vibration, thrust position, eccentricity, and differential expansion measurement.

• Compatible with Bently Nevada 3500 rack system for scalable protection architecture.

• Designed for high reliability in continuous industrial operation environments.

Technical FAQs

Q1: What is the main function of this monitor?
It processes signals from proximity transducers and converts them into vibration and position measurements for machinery protection.

Q2: How many input channels does it support?
It supports up to 4 proximity transducer input channels.

Q3: What measurements can it perform?
It can be configured for radial vibration, thrust position, eccentricity, differential expansion, and REBAM.

Q4: Is it a standalone device?
No, it is part of the Bently Nevada 3500 rack system.

Q5: What is its role in the system?
It monitors machine conditions and triggers alarms when values exceed set limits.

Q6: Does it require external signal conditioning?
No, signal conditioning is integrated into the module.

Q7: Can it be programmed?
Yes, each channel can be configured using 3500 rack configuration software.

Q8: What types of sensors does it work with?
It works with Bently Nevada proximity transducers.

Q9: Is it used for protection or just monitoring?
It is used for both machinery protection and condition monitoring.

Q10: Which industries use it?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
