Brand:Bently Nevada PLC Item No.:Bently Nevada 330703-000-100-10-02-00 Product Origin:USA Product Dimensions:1000 × 11 × 11 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

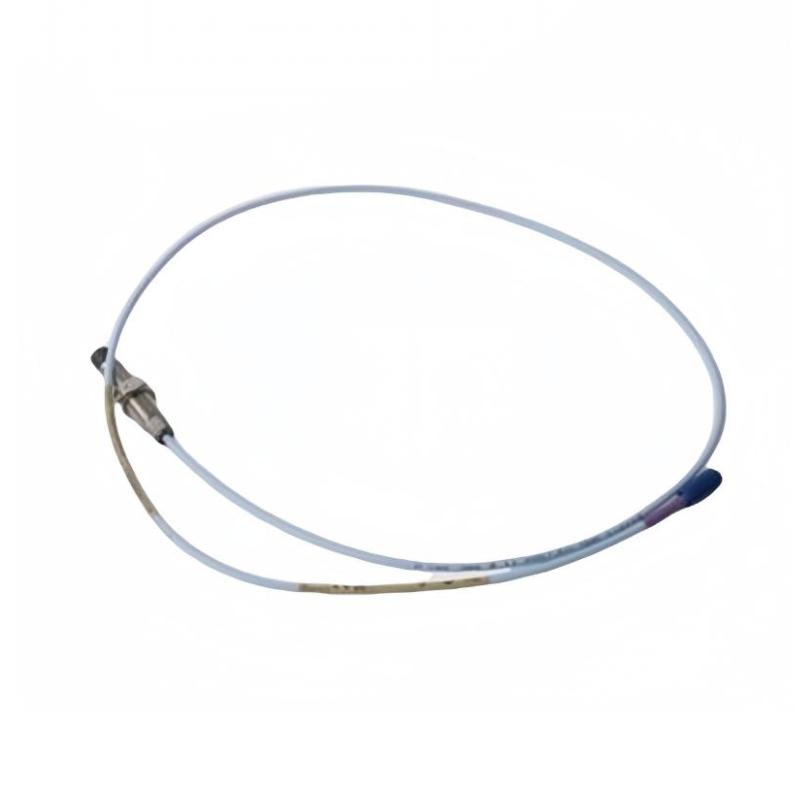

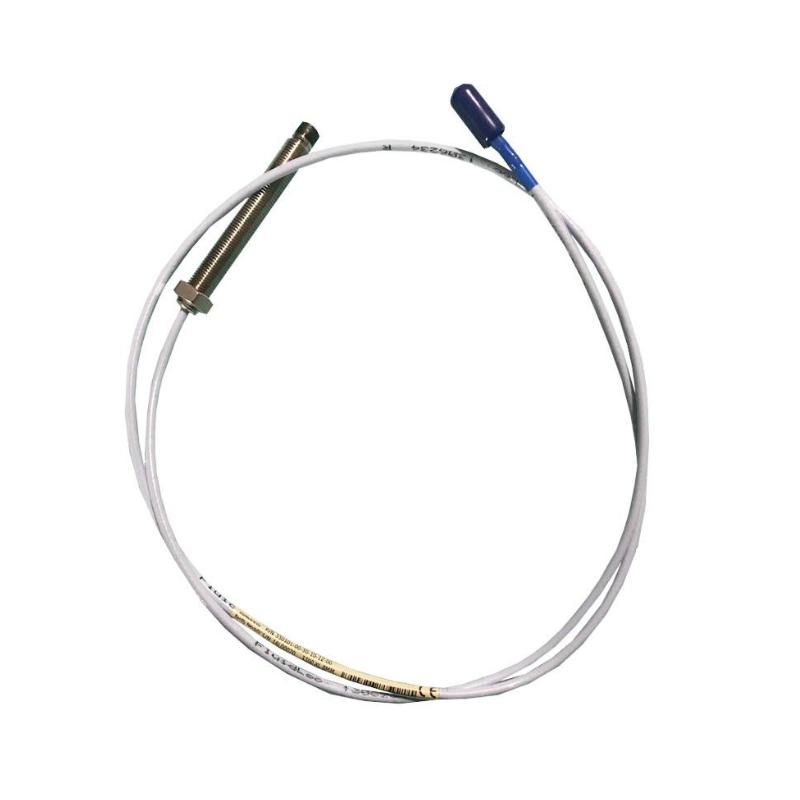

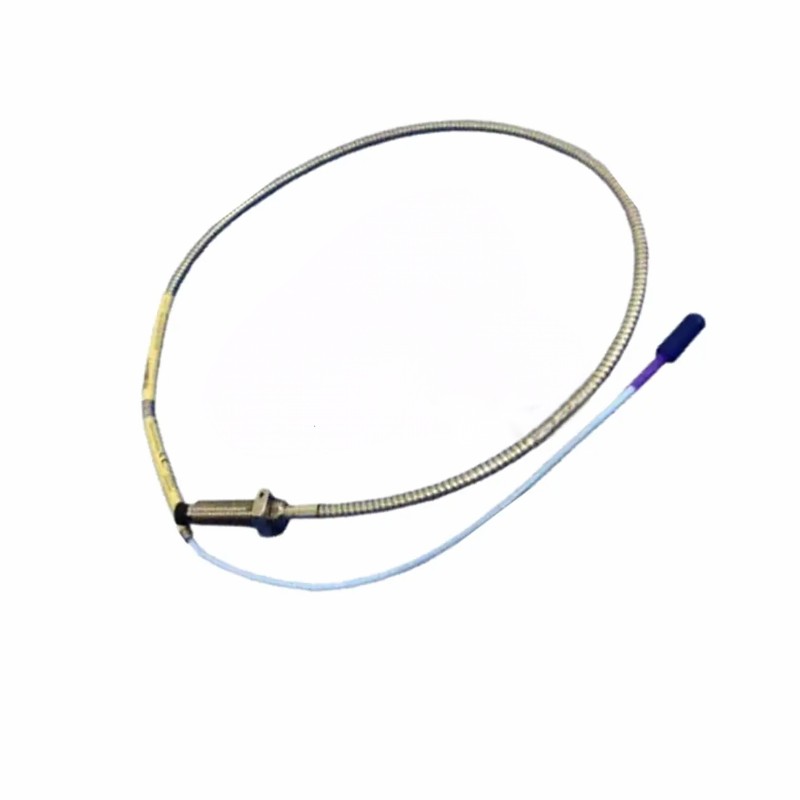

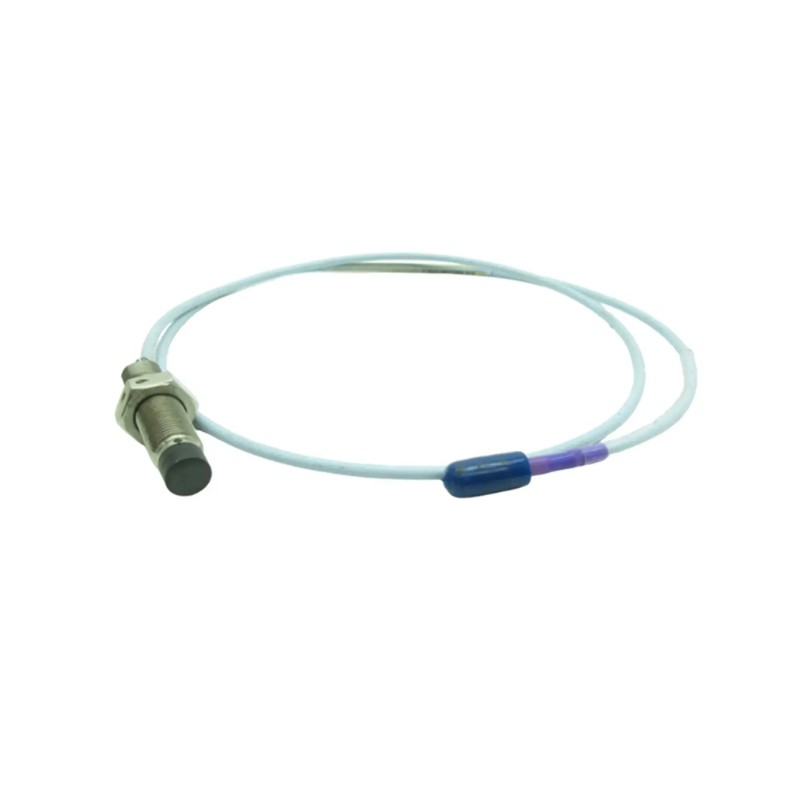

The Bently Nevada 330703-000-100-10-02-00 is part of the 3300 XL 11 mm proximity probe series, used in rotating machinery monitoring systems for non-contact measurement of shaft vibration and displacement.
This probe operates as part of a complete proximity transducer system, working together with a compatible proximitor sensor and extension cable. It is typically installed in industrial rotating equipment where continuous condition monitoring is required.
The model configuration with “100” case length is used in applications requiring extended probe body length for specific mounting conditions.
Technical Specifications
Parameter
Specification
Brand
Bently Nevada
Model
330703-000-100-10-02-00
Series
3300 XL 11 mm Proximity Probe
Measurement Type
Eddy current, non-contact displacement sensing
Probe Diameter
11 mm
Case Length
100 mm
Unthreaded Length
0 mm
Cable Length
1.0 m
Connector Type
Miniature ClickLoc coaxial connector
Thread Type
M14 × 1.5
System Compatibility
Bently Nevada 3300 XL proximity transducer system
Installation
Machinery mounted probe installation
Application Type
Condition monitoring / machinery protection systems
Dimensions & Weight
Item
Specification
Dimensions (L × W × H)
1000 × 11 × 11 mm
Weight
Approx. 0.3 kg
Compatible System Components
Bently Nevada 3300 XL Proximitor Sensor
Bently Nevada 3300 XL Extension Cable
Bently Nevada 3500 Machinery Monitoring System
Bently Nevada 3300 XL 11 mm Probe Series
Typical Applications
The probe is used in machinery condition monitoring systems such as:
Steam turbines
Gas turbines
Compressors
Pumps
Electric generators
Industrial fans
Petrochemical equipment
Power generation systems
Rotating machinery in process industries
General vibration monitoring systems
Product Characteristics
Non-contact measurement of shaft vibration and position
Designed for integration into 3300 XL monitoring systems
Used in continuous machinery condition monitoring
Compatible with standard Bently Nevada proximity architecture
Suitable for industrial rotating equipment applications
Standard coaxial connector interface
Designed for long-term installation in harsh environments
Supports system-based calibration with proximitor modules
Used in predictive maintenance and protection systems
Configured for specific installation depth requirements
Technical FAQs
1. What is the main function of this probe?
It is used to measure shaft vibration and displacement without physical contact.
2. Which system is it compatible with?
It is designed for the Bently Nevada 3300 XL proximity transducer system.
3. What does the “100” indicate?
It refers to the 100 mm probe case length configuration.
4. What does the “10” represent?
It indicates a 1.0 m integral cable length.
5. What connector type is used?
It uses a Miniature ClickLoc coaxial connector.
6. Is this part of a complete system?
Yes. It operates together with a proximitor sensor and extension cable.
7. What type of measurement technology is used?
It uses eddy current non-contact sensing.
8. Where is it typically installed?
It is installed on rotating machinery such as turbines, compressors, and pumps.
9. Can it be used for condition monitoring?
Yes, it is commonly used in machinery condition monitoring systems.
10. What is the main purpose in industrial systems?
Its main purpose is to support continuous monitoring of vibration and shaft position in rotating equipment.
