Brand:Bently Nevada PLC Item No.:Bently Nevada 330703-000-110-10-02-00 Product Origin:USA Product Dimensions:1000 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

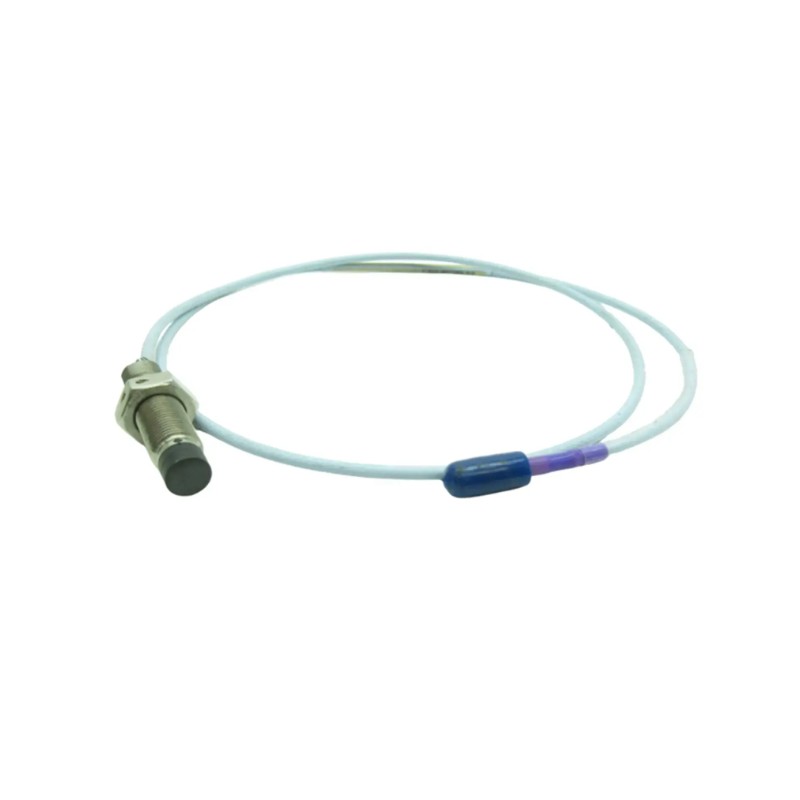

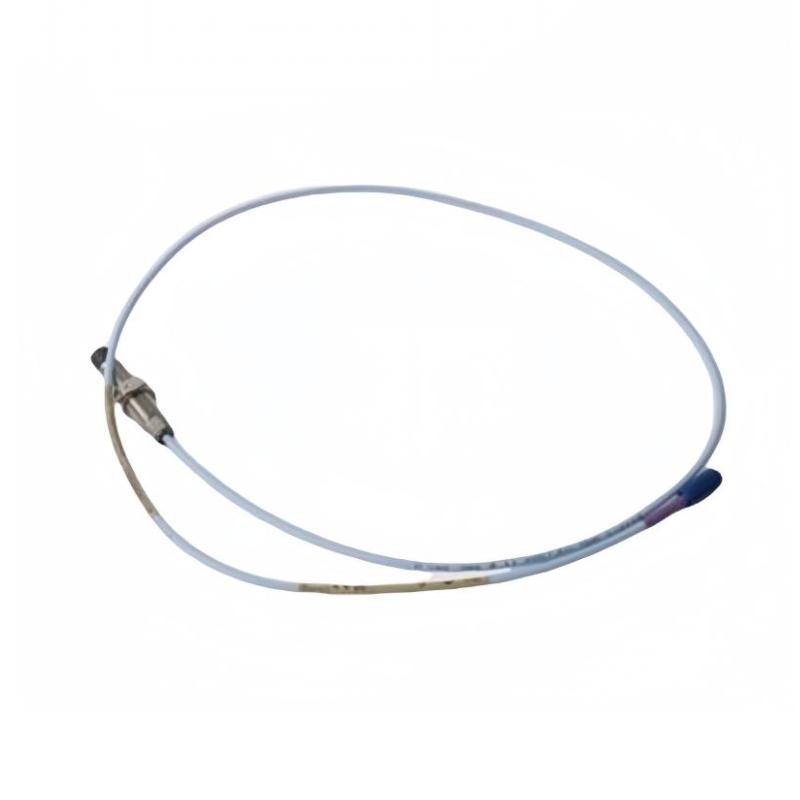

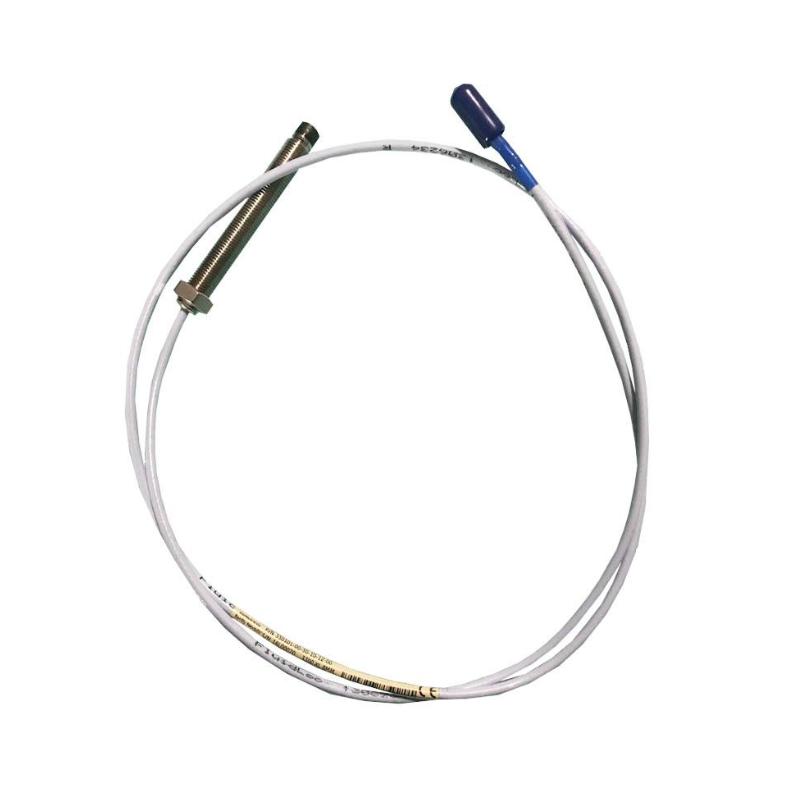

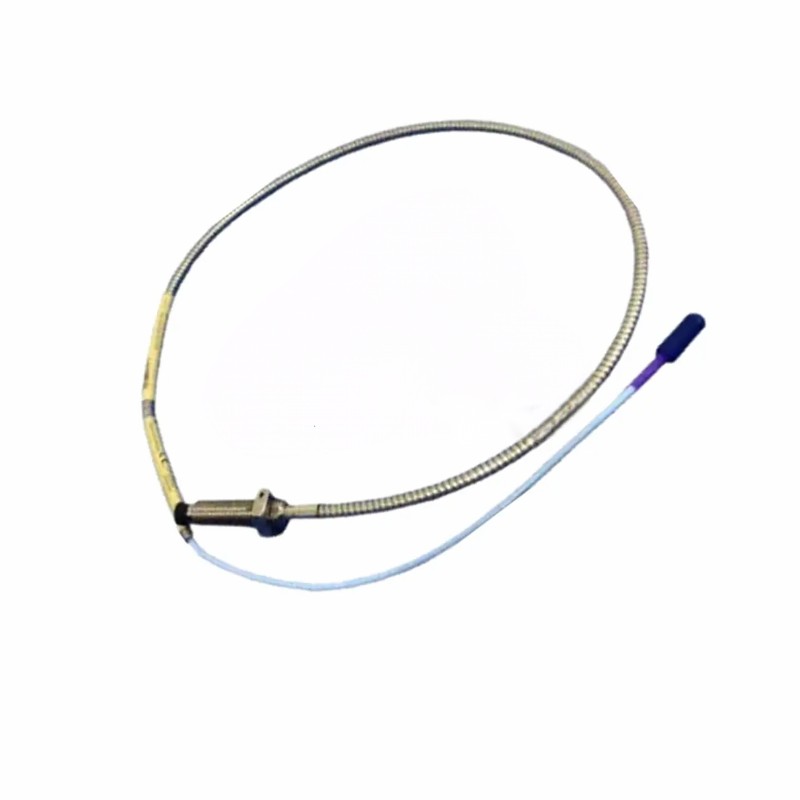

The Bently Nevada 330703-000-110-10-02-00 is part of the 3300 XL 11 mm Proximity Probe series, used in rotating machinery monitoring systems for non-contact measurement of shaft vibration and position.
This probe is designed to operate as part of a complete 3300 XL proximity transducer system, together with a compatible proximitor sensor and extension cable. It is commonly used in industrial condition monitoring and protection systems for rotating equipment.
The “110” configuration indicates a 110 mm probe case length, typically selected for installations requiring extended probe body depth or specific mechanical mounting requirements.
Technical Specifications
Parameter
Specification
Brand
Bently Nevada
Model
330703-000-110-10-02-00
Series
3300 XL 11 mm Proximity Probe
Measurement Type
Eddy current, non-contact displacement sensing
Probe Diameter
11 mm
Case Length
110 mm
Unthreaded Length
0 mm
Cable Length
1.0 m
Connector Type
Miniature ClickLoc coaxial connector
Thread Type
M14 × 1.5
System Compatibility
3300 XL Proximitor System
Installation Type
Machinery-mounted probe
Application
Vibration and shaft position monitoring
Dimensions & Weight
Item
Specification
Overall Length
Approx. 1000 mm (with cable)
Probe Diameter
11 mm
Weight
Approx. 0.3 kg
Compatible System Components
Bently Nevada 3300 XL Proximitor Sensor
Bently Nevada 3300 XL Extension Cable
Bently Nevada 3300 XL 11 mm Probe Series
Bently Nevada 3500 Machinery Monitoring System Modules
Typical Applications
This probe is used in rotating machinery monitoring systems such as:
Steam turbines
Gas turbines
Compressors
Pumps
Generators
Industrial fans and blowers
Petrochemical equipment
Power generation systems
Rotating machinery in process industries
Condition monitoring systems
Product Characteristics
Non-contact measurement of shaft vibration and position
Designed for integration into 3300 XL monitoring systems
Suitable for continuous machinery condition monitoring
Compatible with standard Bently Nevada proximity architecture
Designed for industrial rotating equipment applications
Standard coaxial connector interface
Suitable for long-term installation in industrial environments
Supports system-based calibration with proximitor modules
Used in predictive maintenance and protection systems
Configured for extended probe body installation requirements
Technical FAQs
1. What is the main function of this probe?
It is used to measure shaft vibration and displacement without physical contact.
2. Which system is it compatible with?
It is designed for the Bently Nevada 3300 XL proximity transducer system.
3. What does the “110” indicate?
It refers to a 110 mm probe case length configuration.
4. What does the “10” represent?
It indicates a 1.0 m integral cable length.
5. What connector type is used?
It uses a Miniature ClickLoc coaxial connector.
6. Is this part of a complete system?
Yes. It operates together with a proximitor sensor and extension cable.
7. What type of measurement technology is used?
It uses eddy current non-contact sensing technology.
8. Where is it typically installed?
It is installed on turbines, compressors, pumps, and other rotating machinery.
9. What is its main application?
It is used for machinery condition monitoring and vibration measurement.
10. Can it be used in protection systems?
Yes. It is commonly integrated into machinery protection and monitoring systems.
